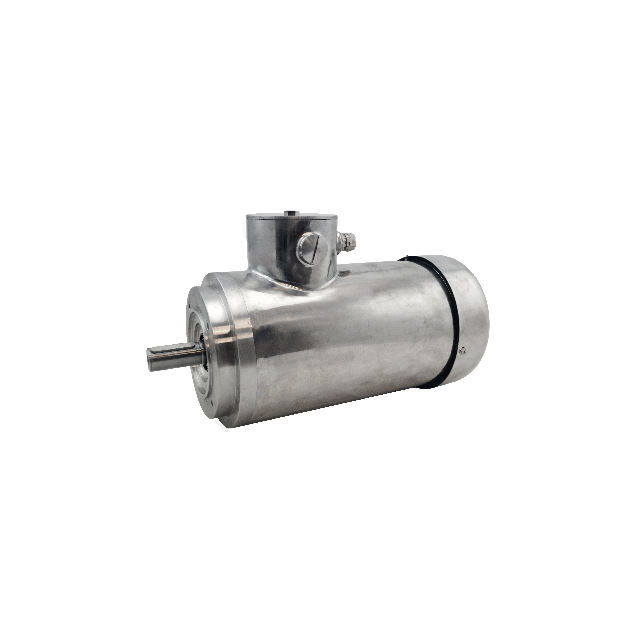

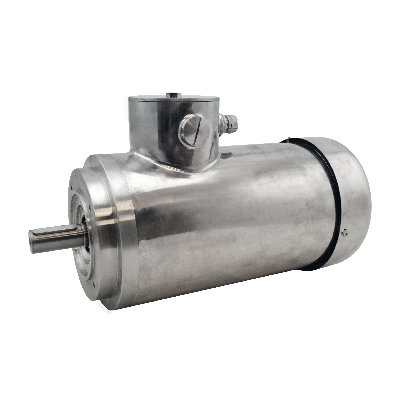

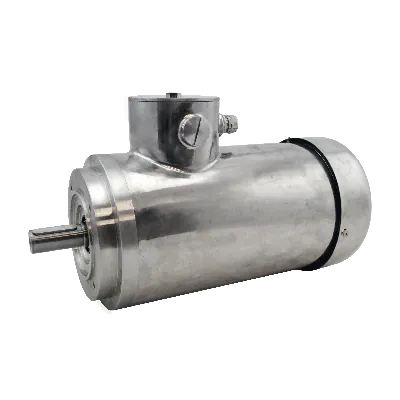

Marlin AC motor TEFC100LA-4B3, 2.20kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC100LA-4B3
Specifications
Product description
Downloads
€1,833.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 66
Model
TEFC 100LA-4B3
Speed (RPM)
1400
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.62/4.40
Nominal torque (Nm)
14.59
Start current ratio (IA/IN)
6.9
Mounting
B3
IEC norm
100
BCD
130
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Capability: Facilitates easy and efficient cleaning without disassembly.
- IP66 rating: Provides protection against dust and powerful water jets, making it suitable for washdown environments.
- Totally Enclosed Fan Cooled (TEFC) Design: Safeguards the motor from external contaminants and prevents the entry of water during cleaning processes.
- High power: Boasting a powerful output of 2.20kW.
- Optimal speed: Operates at 1400RPM.
- B3 flange: This versatile mounting option allows for easy installation and compatibility with different machinery setups.
- High efficiency: IE3 efficiency rating ensures energy savings and reduced operating costs.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: This motor holds cURus certification and is UL approved.
