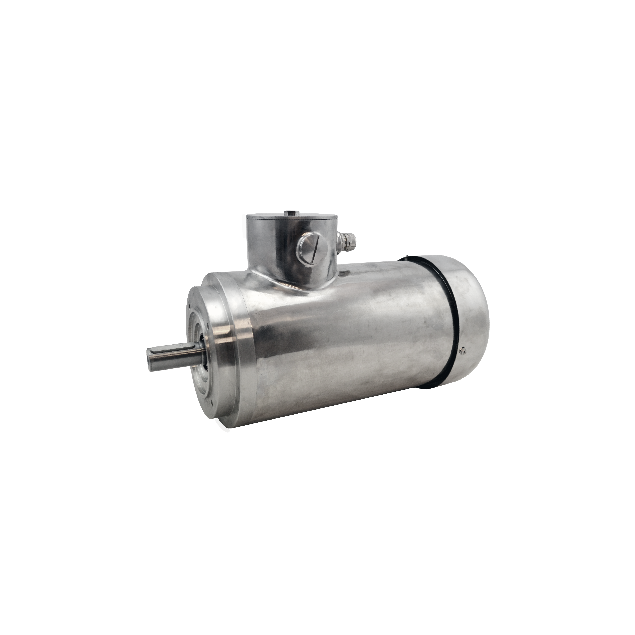

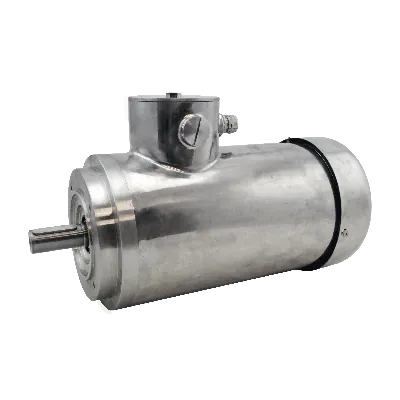

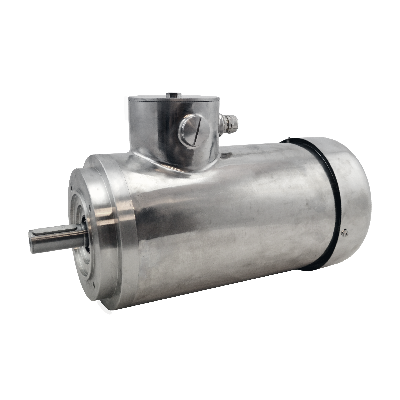

Marlin AC motor TEFC90L-6B3, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90L-6B3The Marlin AC Motor TEFC90L-6B3 is a robust stainless steel motor designed for industrial applications. It features a power rating of 1.10 kW and nominal speed of 900 RPM. The motor operates on a voltage of 230/400V at 50Hz frequency. The IP66 enclosure ensures protection against dust and powerful water jets, making it suitable for demanding environments. It includes a stainless steel hollow shaft and stainless steel housing, providing excellent corrosion resistance. With the TEFC (Totally Enclosed Fan Cooled) design and frame size 90L, this motor is built for durability and long service life in challenging conditions.
Specifications
Product description
Downloads
€1,382.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP 66
Model
TEFC 90L-6B3
Speed (RPM)
900
Rated output (kW)
1.1
Efficiency (% FL)
82.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.56/2.63
Nominal torque (Nm)
11.06
Start current ratio (IA/IN)
4.5
Mounting
B3
BCD
115
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
HS-Code
85015220.000000
Description
The Marlin TEFC90L-6B3 AC Motor is engineered for high-demand industrial applications where robustness, hygiene, and performance are critical. Manufactured by Marlin, a trusted brand known for delivering high-efficiency motors for food-grade, chemical, and corrosive environments, this stainless-steel motor exemplifies innovation and reliability in motion solutions. Ideal for engineers and technical specialists, every feature of this motor has been optimized for demanding conditions and integration versatility.Key Features, Benefits, and Application Use Cases:
Totally Enclosed Fan Cooled (TEFC) Housing: Prevents dust, water, and contaminants from entering, making it suitable for dirty or wet industrial environments such as food processing and wastewater treatment plants.
1.10kW Power Output: Offers an optimal balance of power and efficiency for driving conveyors, pumps, mixers, and other medium-duty industrial machinery.
Low-Speed Operation at 900 RPM: Reduces mechanical wear and provides torque-friendly output for precision tasks including dosing systems or agitation in chemical processing.
Dual Voltage Compatibility (230/400V, 50Hz): Offers greater flexibility during installation or retrofitting in diverse European and global electrical infrastructures.
Stainless Steel (SS) Construction: Ensures high corrosion resistance and long-lasting performance in caustic environments, including food-grade or marine industries.
Stainless Steel Hollow Shaft: Enhances drivetrain hygiene and corrosion resistance, ideal for clean-in-place (CIP) systems and hygienic conveyor drives.
IP66 Environmental Protection: Offers complete protection against powerful water jets and total dust ingress, making it suitable for outdoor installations or high-pressure washdown zones.
Compact IEC 90L Frame Size: Simplifies mounting and compatibility with standard motor brackets, reducing design complexity and installation time.
Reduced Maintenance Requirements: The sealed design, rustproof materials, and stable operating speed minimize maintenance downtime and lifecycle costs.Whether operating conveyors in meat processing plants or powering dosing pumps in chemical treatment centers, the Marlin TEFC90L-6B3 provides a seamless combination of industrial durability and hygienic integrity.
Totally Enclosed Fan Cooled (TEFC) Housing: Prevents dust, water, and contaminants from entering, making it suitable for dirty or wet industrial environments such as food processing and wastewater treatment plants.
1.10kW Power Output: Offers an optimal balance of power and efficiency for driving conveyors, pumps, mixers, and other medium-duty industrial machinery.
Low-Speed Operation at 900 RPM: Reduces mechanical wear and provides torque-friendly output for precision tasks including dosing systems or agitation in chemical processing.
Dual Voltage Compatibility (230/400V, 50Hz): Offers greater flexibility during installation or retrofitting in diverse European and global electrical infrastructures.
Stainless Steel (SS) Construction: Ensures high corrosion resistance and long-lasting performance in caustic environments, including food-grade or marine industries.
Stainless Steel Hollow Shaft: Enhances drivetrain hygiene and corrosion resistance, ideal for clean-in-place (CIP) systems and hygienic conveyor drives.
IP66 Environmental Protection: Offers complete protection against powerful water jets and total dust ingress, making it suitable for outdoor installations or high-pressure washdown zones.
Compact IEC 90L Frame Size: Simplifies mounting and compatibility with standard motor brackets, reducing design complexity and installation time.
Reduced Maintenance Requirements: The sealed design, rustproof materials, and stable operating speed minimize maintenance downtime and lifecycle costs.Whether operating conveyors in meat processing plants or powering dosing pumps in chemical treatment centers, the Marlin TEFC90L-6B3 provides a seamless combination of industrial durability and hygienic integrity.
