B5 motor flange

Marlin AC motor TENV71B-4B5, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TENV71B-4B5, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TENV71B-4B5
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 0.37
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 2.48
  • Mounting B5
  • BCD 130
  • Poles 4
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø14
  • Cooling TENV
€891.00
excl. VAT

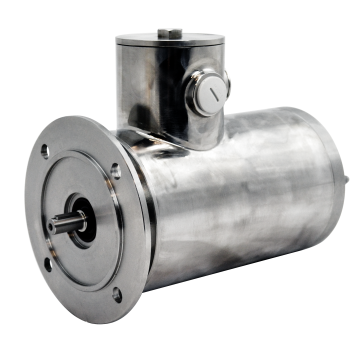

Marlin AC motor TENV63B-4B5, 0.18kW, 1 400RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TENV63B-4B5, 0.18kW, 1 400RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TENV63B-4B5
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 0.18
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 1.25
  • Mounting B5
  • BCD 115
  • Poles 4
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø11
  • Cooling TEFC
€745.00
excl. VAT
Marlin AC motor TEFC100LB-4B5, 3.00kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC100LB-4B5, 3.00kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TEFC100LB-4B5
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 3
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 19.7
  • Mounting B5
  • BCD 215
  • Poles 4
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø28
  • Cooling TEFC
€2,179.00
excl. VAT
Marlin AC motor TEFC112M-2B5, 4.00kW, 2800RPM, 400/690V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC112M-2B5, 4.00kW, 2800RPM, 400/690V, 50Hz, IP66, stainless steel BJ item number: TEFC112M-2B5
  • IP classification IP 66
  • Speed (RPM) 2800
  • Rated output (kW) 4
  • Voltage connection (Δ/Y) 400/690
  • Nominal torque (Nm) 13.04
  • Mounting B5
  • BCD 215
  • Poles 2
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø28
  • Cooling TEFC
€3,122.00
excl. VAT
Marlin AC motor TEFC100LA-4B5, 2.20kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC100LA-4B5, 2.20kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TEFC100LA-4B5
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 2.2
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 14.59
  • Mounting B5
  • BCD 215
  • Poles 4
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø28
  • Cooling TEFC
€1,768.00
excl. VAT
Marlin AC motor TEFC132M-4B5, 7.5kW, 1400RPM, 400/690V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC132M-4B5, 7.5kW, 1400RPM, 400/690V, 50Hz, IP66, stainless steel BJ item number: TEFC132M-4B5
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 7.5
  • Voltage connection (Δ/Y) 400/690
  • Nominal torque (Nm) 49.14
  • Mounting B5
  • BCD 265
  • Poles 4
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø38
  • Cooling TEFC
€3,328.00
excl. VAT
Marlin AC motor TEFC90S-2B5, 1.50kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC90S-2B5, 1.50kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TEFC90S-2B5
  • IP classification IP 66
  • Speed (RPM) 2800
  • Rated output (kW) 1.5
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 4.98
  • Mounting B5
  • BCD 165
  • Poles 2
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø24
  • Cooling TEFC
€1,284.00
excl. VAT
Marlin AC motor TEFC90L-6B5, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC90L-6B5, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TEFC90L-6B5
  • IP classification IP 66
  • Speed (RPM) 900
  • Rated output (kW) 1.1
  • Voltage connection (Δ/Y) 260/400
  • Nominal torque (Nm) 11.06
  • Mounting B5
  • BCD 165
  • Poles 6
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø24
  • Cooling TEFC
€1,214.00
excl. VAT
Marlin AC motor TEFC90L-2B5, 2.20kW, 2840RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TEFC90L-2B5, 2.20kW, 2840RPM, 230/400V, 50Hz, IP66, stainless steel BJ item number: TEFC90L-2B5
  • IP classification IP 66
  • Speed (RPM) 2800
  • Rated output (kW) 2.2
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 7.41
  • Mounting B5
  • BCD 165
  • Poles 2
  • Efficiency standard IE3
  • Shaft diameter (mm) Ø24
  • Cooling TEFC
€1,548.00
excl. VAT
Clean Geartech TENV71A-6 IP69K, AC-Motor, B5, 0.18KW, 890RPM, Stainless steel
Clean Geartech TENV71A-6 IP69K, AC-Motor, B5, 0.18KW, 890RPM, Stainless steel BJ item number: HV82SPMCKD6GTENN4KSA1-N---NNN Supplier item number: SPMCKD6GTENN4KSA1-N---NNN
  • IP classification IP 69K
  • Speed (RPM) 890
  • Rated output (kW) 0.18
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 1.95
  • Mounting B5
  • BCD 130
  • Poles 6
  • Efficiency standard IE4
  • Shaft diameter (mm) 14
  • Cooling TENV
€743.00
excl. VAT

Items 1-10 of 28
