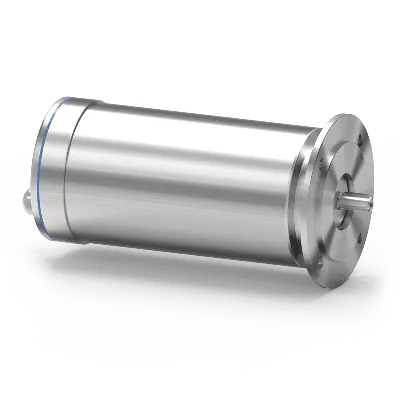

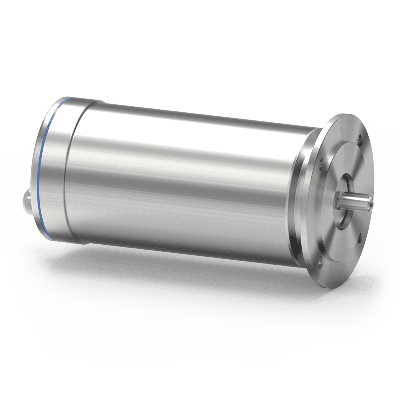

Clean Geartech TENV80A-6 IP69K, AC-Motor, B5, 0.37KW, 890RPM, 230/400, Stainless steel
HV82SPMDKF6GTENN4KSA1-N---NNNThe Clean Geartech TENV80A-6 is a low-speed, stainless steel AC motor designed for hygienic applications that require durability, washdown resistance, and precise torque control. Delivering 0.37 kW at 890 RPM (6-pole, 50 Hz), this IEC 80 frame motor supports 230/400 V operation.
Its TENV (Totally Enclosed Non-Ventilated) construction offers a fully sealed housing without internal airflow, minimizing contamination risks. The IP69K-certified stainless steel enclosure is built for high-pressure, high-temperature cleaning, making it suitable for food production, pharmaceutical processing, and chemical handling.
The B5 flange mounting allows accurate and secure face-mount installation to pumps, mixers, or stainless steel gear units. Equipped with sealed bearings and F-class insulation, this motor ensures stable, long-term performance even under frequent washdown cycles.
An excellent choice where low rotational speed and hygienic compliance are essential.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.37 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-6
- Power Output: 0.37 kW
- Nominal Torque: 3.98 Nm
- Efficiency Rating: 76.3%
- Starting Current Ratio: 3.4
- Certifications: UL, cURus
