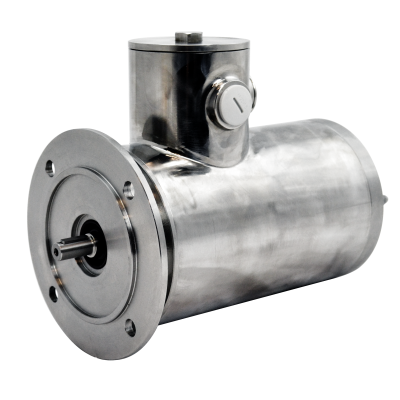

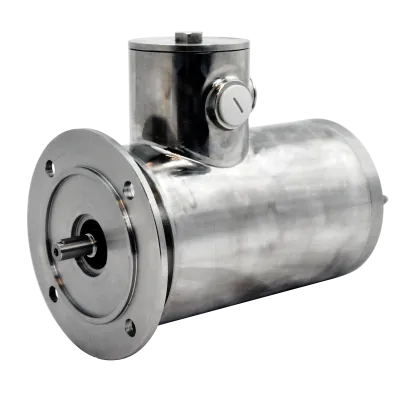

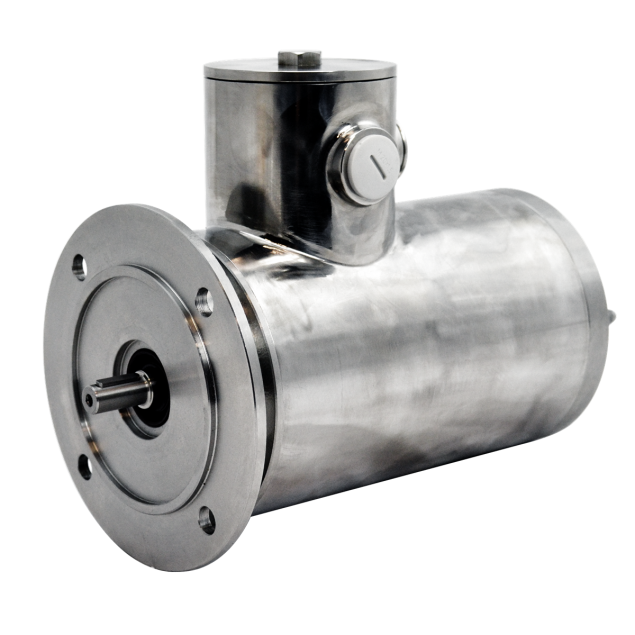

Marlin AC motor TENV71B-4B5, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71B-4B5
Specifications
Product description
Downloads
€891.55
Made to order
Expected shipment: 13-02-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 71B-4B5
Speed (RPM)
1400
Rated output (kW)
0.37
Efficiency (% FL)
80
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.80/1.04
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
4.5
Mounting
B5
IEC norm
71
BCD
85
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TENV
Description
Key features:
- Clean-in-Place (CIP) Design: Facilitates effortless cleaning and maintenance, ensuring stringent hygiene standards are met.
- IP66 Rating: Provides protection against dust and water ingress, making it ideal for challenging working conditions.
- TENV (Totally Enclosed Non-Ventilated) Construction: Prevents the ingress of contaminants.
- 0.37kW power output: Offers ample power for a wide range of applications.
- 1400RPM speed: Delivers consistent and reliable performance.
- B5 flange: Enables seamless integration with other equipment.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 compliant.
- IP69K Compliance: When paired with the correct cable and cable gland and mounted on a gearbox, the motor meets IP69K requirements, making it suitable for rigorous cleaning processes.
- Certification: The motor carries cURus certification and is UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
