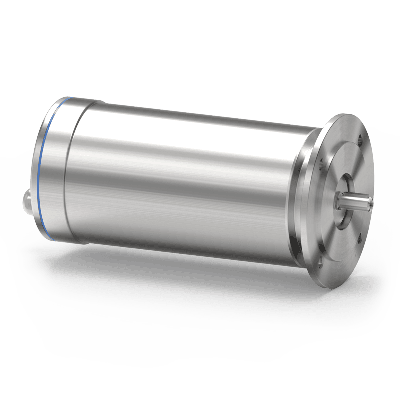

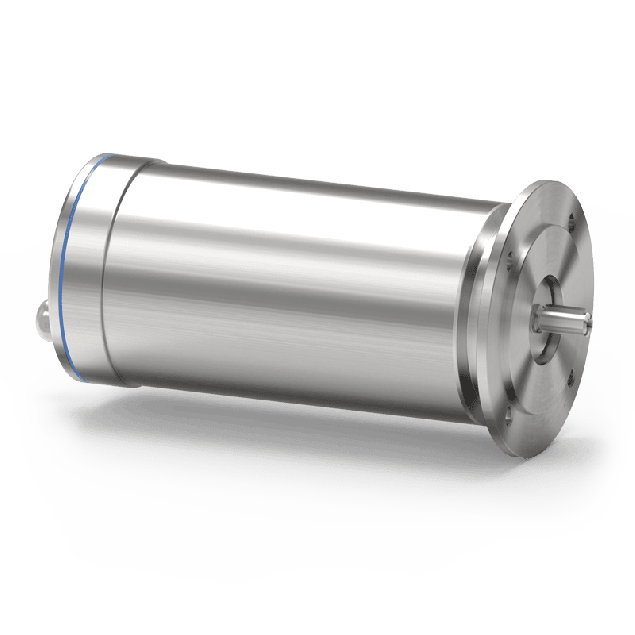

Clean Geartech TENV80A-2 IP69K, AC-Motor, B5, 0.75KW, 2900RPM, 230/400, Stainless steel
HV82SPMDKH2GTENN4KSA1-N---NNNThe Clean Geartech TENV80A-2 is a high-speed, hygienically designed AC motor delivering 0.75 kW at 2900 RPM (2-pole, 50 Hz) in an IEC 80A frame. It features a B5 full-face flange, ideal for direct coupling with pumps, gear units, and other precision equipment in sanitary processing environments.
Constructed from corrosion-resistant stainless steel and rated IP69K, this motor is engineered to withstand aggressive washdowns, including high-pressure, high-temperature cleaning common in food, dairy, and pharmaceutical production.
Its TENV (Totally Enclosed Non-Ventilated) design eliminates internal air circulation, helping to prevent particle ingress and contamination in cleanroom or wet process zones. Sealed bearings and insulation class F ensure long-term reliability and reduced maintenance.
Perfect for high-speed mixers, centrifugal pumps, filling equipment, and other hygienic applications where compact, sealed drive units are essential.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.75 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-2
- Power Output: 0.75 kW
- Nominal Torque: 2.45 Nm
- Efficiency Rating: 84.6%
- Starting Current Ratio: 12.5
- Certifications: UL, cURus
