Servo couplings

KBE2C 24 14 20 servo insert coupling, compact, aluminium and polyurethane
KBE2C 24 14 20 servo insert coupling, compact, aluminium and polyurethane BJ item number: HV71017852
  • Material Aluminum and polyurethane
  • Length (mm) 58
  • Max. moment (Nm) 75
  • Manufacturer KBK
  • Coupling size 24
  • Outer diameter (mm) Ø55
  • Bore D1 Ø14mm H7
  • Bore D2 Ø20mm H7
€108.00
excl. VAT

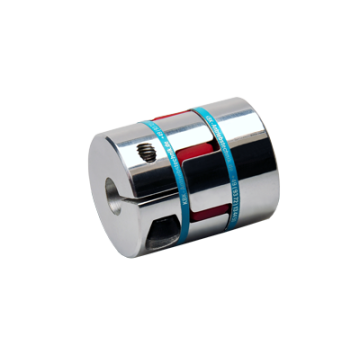

KBE2C 7 6 6 servo insert coupling, compact, aluminium and polyurethane
KBE2C 7 6 6 servo insert coupling, compact, aluminium and polyurethane BJ item number: HV71015481
  • Material Aluminum and polyurethane
  • Length (mm) 18
  • Max. moment (Nm) 1.5
  • Manufacturer KBK
  • Coupling size 7
  • Outer diameter (mm) Ø14
  • Bore D1 Ø6mm H7
  • Bore D2 Ø6mm H7
€37.00
excl. VAT
KBE2 19 N14 N19 servo insert coupling, aluminium and polyurethane
KBE2 19 N14 N19 servo insert coupling, aluminium and polyurethane BJ item number: HV71015205
  • Material Aluminum and polyurethane
  • Length (mm) 66
  • Max. moment (Nm) 5
  • Manufacturer KBK
  • Coupling size 19
  • Outer diameter (mm) Ø40
  • Bore D1 Ø14mm H7 with keyway
  • Bore D2 Ø19mm H7 with keyway
€78.00
excl. VAT
KBE4 19 19 14 servo insert coupling, aluminium and polyurethane
KBE4 19 19 14 servo insert coupling, aluminium and polyurethane BJ item number: HV71017762
  • Material Aluminum, steel and polyurethane
  • Length (mm) 40
  • Max. moment (Nm) 21
  • Manufacturer KBK
  • Coupling size 19
  • Outer diameter (mm) Ø40
  • Bore D1 Ø19mm H7
  • Bore D2 Ø14mm H7
€114.00
excl. VAT
KBE2C 24 20 20 servo insert coupling, compact, aluminium and polyurethane
KBE2C 24 20 20 servo insert coupling, compact, aluminium and polyurethane BJ item number: HV71017851
  • Material Aluminum and polyurethane
  • Length (mm) 50
  • Max. moment (Nm) 70
  • Manufacturer KBK
  • Coupling size 24
  • Outer diameter (mm) Ø40
  • Bore D1 Ø20mm H7
  • Bore D2 Ø20mm H7
€108.00
excl. VAT
KBE2 48 40 40 servo insert coupling, aluminium and polyurethane
KBE2 48 40 40 servo insert coupling, aluminium and polyurethane BJ item number: HV71017730
  • Material Aluminum and polyurethane
  • Length (mm) 140
  • Max. moment (Nm) 525
  • Manufacturer KBK
  • Coupling size 48
  • Outer diameter (mm) Ø105
  • Bore D1 Ø40mm H7
  • Bore D2 Ø40mm H7
€402.00
excl. VAT
KBE2 24 N20 N20 servo insert coupling, aluminium and polyurethane
KBE2 24 N20 N20 servo insert coupling, aluminium and polyurethane BJ item number: HV71017754
  • Material Aluminum and polyurethane
  • Length (mm) 78
  • Max. moment (Nm) 60
  • Manufacturer KBK
  • Coupling size 24
  • Outer diameter (mm) Ø55
  • Bore D1 Ø20mm H7 with keyway
  • Bore D2 Ø20mm H7 with keyway
€126.00
excl. VAT
KBE2 28 N25 N28 servo insert coupling, aluminium and polyurethane
KBE2 28 N25 N28 servo insert coupling, aluminium and polyurethane BJ item number: HV71017756
  • Material Aluminum and polyurethane
  • Length (mm) 90
  • Max. moment (Nm) 124
  • Manufacturer KBK
  • Coupling size 28
  • Outer diameter (mm) Ø65
  • Bore D1 Ø25mm H7 with keyway
  • Bore D2 Ø28mm H7 with keyway
€148.00
excl. VAT
KBE3C 28 22 25 servo insert coupling, compact, aluminium and polyurethane
KBE3C 28 22 25 servo insert coupling, compact, aluminium and polyurethane BJ item number: HV71017853
  • Material Aluminum, steel and polyurethane
  • Length (mm) 76
  • Max. moment (Nm) 160
  • Manufacturer KBK
  • Coupling size 28
  • Outer diameter (mm) Ø65
  • Bore D1 Ø22mm H7
  • Bore D2 Ø25mm H7
€164.10
excl. VAT
KBE4 19 19 19 servo insert coupling, aluminium and polyurethane
KBE4 19 19 19 servo insert coupling, aluminium and polyurethane BJ item number: HV71017759
  • Material Aluminum, steel and polyurethane
  • Length (mm) 40
  • Max. moment (Nm) 21
  • Manufacturer KBK
  • Coupling size 19
  • Outer diameter (mm) Ø40
  • Bore D1 Ø19mm H7
  • Bore D2 Ø19mm H7
€111.00
excl. VAT

Items 1-10 of 29
