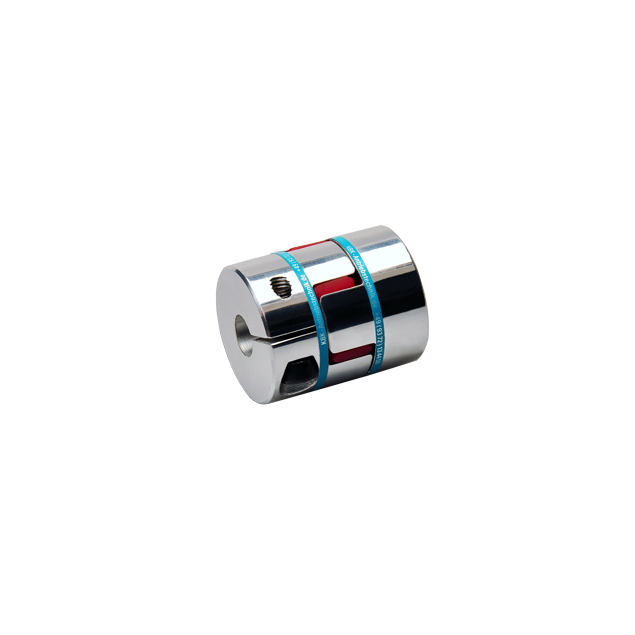

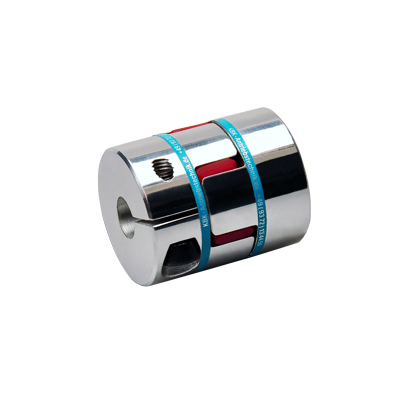

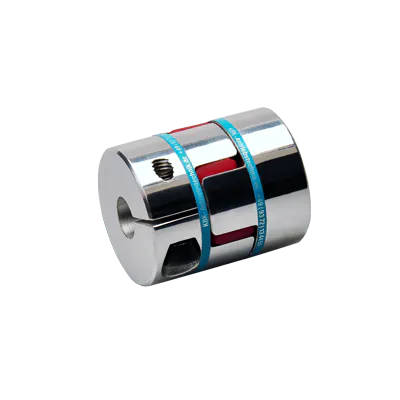

KBE2C 24 20 20 servo insert coupling, compact, aluminium and polyurethane
HV71017851The KBE2C size 24 backlashless compact servo insert clutch with clamp hub is a high performance clutch designed to provide functionality and reliability in a variety of industrial applications. With its high-quality features and materials, this clutch ensures performance, minimal vibration and efficient power transmission.
Specifications
Product description
Downloads
€108.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Aluminium and polyurethane
Length (mm)
50
Max. moment (Nm)
70
Manufacturer
KBK
Coupling size
24
Outer diameter (mm)
Ø40
Bore D1
Ø20mm H7
Bore D2
Ø20mm H7
Description
Key features:
- Backlash-free design: Provides precise motion control and eliminates backlash between axles, ensuring accurate positioning.
- Vibration Reduction: Reduce vibration transmission, improving the overall stability of the system.
- Shaft misalignment compensation: Compensates for angular, parallel and axial misalignments, extending the life of connected components.
- Easy installation: The coupling has friction-locked clamping hubs, enabling quick and trouble-free installation.
- Adjustable characteristics: The performance characteristics of the clutch can be adjusted by using different spider elements.
Materials:
- Clamp hub: Made from durable and lightweight aluminum that provides excellent strength and corrosion resistance.
- Element: Constructed from high-quality polyurethane with a shore hardness of 64, providing flexibility, durability and reliable power transfer.
Bore specifications:
- Bore D1: Ø20mm H7
- Bore D2: Ø20mm H7
