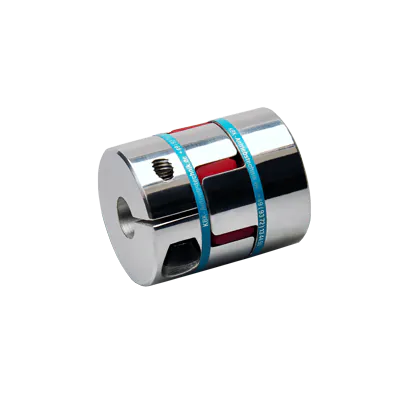

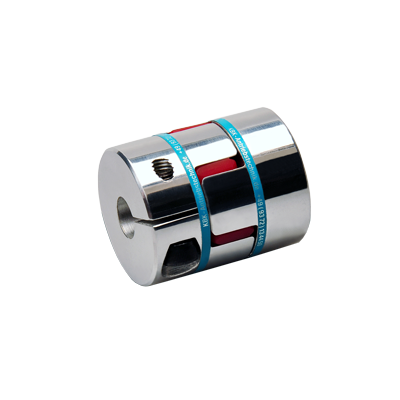

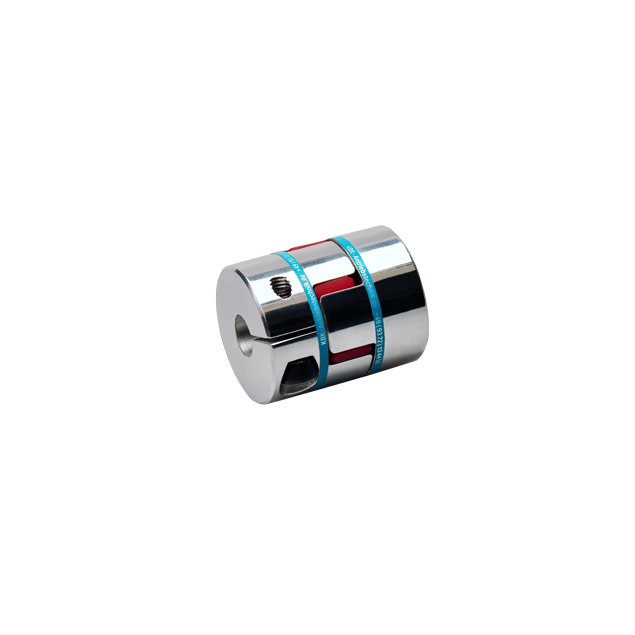

KBE2C 24 14 20 servo insert coupling, compact, aluminium and polyurethane
HV71017852The KBE2C size 24 compact backlash-free servo insert coupling with clamp hubs is a high-performance coupling, designed to meet the demanding requirements of servo systems. With its features and quality materials, this coupling ensures optimal performance, reduced vibrations, and efficient power transmission.
Specifications
Product description
Downloads
€108.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Aluminium and polyurethane
Length (mm)
58
Max. moment (Nm)
75
Manufacturer
KBK
Coupling size
24
Outer diameter (mm)
Ø55
Bore D1
Ø14mm H7
Bore D2
Ø20mm H7
Description
Key features:
- Backlash-free design: Provides precise motion control by eliminating play and backlash.
- Vibration reduction: Minimizes vibrations for smoother and more accurate operation.
- Shaft misalignment compensation: Effectively compensates for angular, parallel, and axial misalignment, ensuring reliable power transmission.
- Axial pluggable and easy assembly: Enables convenient installation and maintenance with friction-locked clamp hubs.
Materials:
- Hub: Constructed from durable and lightweight aluminum, ensuring strength and longevity.
- Spider element: Made of high-quality polyurethane with a 64 shore hardness rating, offering excellent flexibility and resilience.
Bore specifications:
- Bore D1: Ø14mm H7
- Bore D2: Ø20mm H7
