Home
Motors
Stainless steel motors
B34 motor flange

B34 motor flange

Shop By

Rated output (kW)

0.12 (1)
0.18 (3)
0.25 (3)
0.37 (3)
0.55 (4)
0.75 (3)
1.1 (3)
1.5 (2)
2.2 (2)
3 (1)

0

✕

Poles

2 (9)
4 (10)
6 (6)

0

✕

Mounting

B34 (25)

0

✕

BCD

75 (4)
85 (6)
100 (7)
115 (6)
130 (2)

0

✕

Efficiency standard

IE4 (25)

0

✕

IP classification

IP 66 (1)
IP 69K (24)

0

✕

Voltage connection (Δ/Y)

230/400 (25)

0

✕

BJ-Gear TEFC100LA-2 IP69K, AC-Motor, B34, 3.0KW, 2910RPM,B34, Stainless steel

BJ-Gear TEFC100LA-2 IP69K, AC-Motor, B34, 3.0KW, 2910RPM,B34, Stainless steel HV82SPMFKM2PTEVN4KFU1-N---NNN

IP classification IP 69K
Speed (RPM) 2910
Rated output (kW) 3
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 9.8
Mounting B34
BCD 130
Poles 2
Efficiency standard IE4
Shaft diameter (mm) 28
Cooling TEFC
Supplier product ID SPMFKM2PTEVN4KFU1-N---NNN

€1,521.66

excl. VAT

Quantity

BJ-Gear TEFC100LA-4 IP69K, AC-Motor, B34, 2.2KW, 1445RPM,Stainless steel

BJ-Gear TEFC100LA-4 IP69K, AC-Motor, B34, 2.2KW, 1445RPM,Stainless steel HV82SPMFKL4PTEVN4KFU1-N---NNN

IP classification IP 69K
Speed (RPM) 1445
Rated output (kW) 2.2
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 14.5
Mounting B34
BCD 130
Poles 4
Efficiency standard IE4
Shaft diameter (mm) 28
Cooling TEFC
Supplier product ID SPMFKL4PTEVN4KFU1-N---NNN

€1,524.47

excl. VAT

Quantity

BJ-Gear TENV90L-2 IP69K, AC-Motor, B34, 2.2KW, 2920RPM, Stainless steel

BJ-Gear TENV90L-2 IP69K, AC-Motor, B34, 2.2KW, 2920RPM, Stainless steel HV82SPMEKL2PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 2920
Rated output (kW) 2.2
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 7.2
Mounting B34
BCD 115
Poles 2
Efficiency standard IE4
Shaft diameter (mm) 24
Cooling TENV
Supplier product ID SPMEKL2PTENN4KSA1-N---NNN

€1,150.78

excl. VAT

Quantity

BJ-Gear TENV90L-4 IP69K, AC-Motor, B34, 1.5KW, 1475RPM,Stainless steel

BJ-Gear TENV90L-4 IP69K, AC-Motor, B34, 1.5KW, 1475RPM,Stainless steel HV82SPMEKK4PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 1475
Rated output (kW) 1.5
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 9.75
Mounting B34
BCD 115
Poles 4
Efficiency standard IE4
Shaft diameter (mm) 24
Cooling TENV
Supplier product ID SPMEKK4PTENN4KSA1-N---NNN

€1,151.72

excl. VAT

Quantity

BJ-Gear TENV90S-2 IP69K, AC-Motor, B34, 1.5KW, 2930RPM,Stainless steel

BJ-Gear TENV90S-2 IP69K, AC-Motor, B34, 1.5KW, 2930RPM,Stainless steel HV82SPMEKK2PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 2930
Rated output (kW) 1.5
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 4.9
Mounting B34
BCD 115
Poles 2
Efficiency standard IE4
Shaft diameter (mm) 24
Cooling TENV
Supplier product ID SPMEKK2PTENN4KSA1-N---NNN

€1,067.91

excl. VAT

Quantity

BJ-Gear TENV90L-6 IP69K, AC-Motor, B34, 1.1KW, 950RPM,Stainless steel

BJ-Gear TENV90L-6 IP69K, AC-Motor, B34, 1.1KW, 950RPM,Stainless steel HV82SPMEKI6PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 950
Rated output (kW) 1.1
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 11.1
Mounting B34
BCD 115
Poles 6
Efficiency standard IE4
Shaft diameter (mm) 24
Cooling TENV
Supplier product ID SPMEKI6PTENN4KSA1-N---NNN

€1,209.43

excl. VAT

Quantity

BJ-Gear TENV90S-6 IP69K, AC-Motor, B34, 0.75KW, 940RPM,Stainless steel

BJ-Gear TENV90S-6 IP69K, AC-Motor, B34, 0.75KW, 940RPM,Stainless steel HV82SPMEKH6PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 940
Rated output (kW) 0.75
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 7.6
Mounting B34
BCD 115
Poles 6
Efficiency standard IE4
Shaft diameter (mm) 24
Cooling TENV
Supplier product ID SPMEKH6PTENN4KSA1-N---NNN

€1,175.96

excl. VAT

Quantity

BJ-Gear TENV80B-2 IP69K, AC-Motor, B34, 1.1KW, 2910RPM,Stainless steel

BJ-Gear TENV80B-2 IP69K, AC-Motor, B34, 1.1KW, 2910RPM,Stainless steel HV82SPMDKI2PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 2910
Rated output (kW) 1.1
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 3.6
Mounting B34
BCD 100
Poles 2
Efficiency standard IE4
Shaft diameter (mm) 19
Cooling TENV
Supplier product ID SPMDKI2PTENN4KSA1-N---NNN

€874.70

excl. VAT

Quantity

BJ-Gear TENV80B-4 IP69K, AC-Motor, B34, 0.75KW, 1456RPM,Stainless steel

BJ-Gear TENV80B-4 IP69K, AC-Motor, B34, 0.75KW, 1456RPM,Stainless steel HV82SPMDKH4PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 1456
Rated output (kW) 0.75
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 4.95
Mounting B34
BCD 100
Poles 4
Efficiency standard IE4
Shaft diameter (mm) 19
Cooling TENV
Supplier product ID SPMDKH4PTENN4KSA1-N---NNN

€870.02

excl. VAT

Quantity

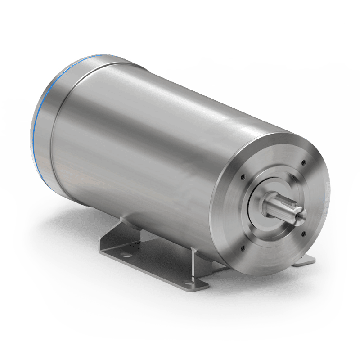

BJ-Gear TENV80A-2 IP69K, AC-Motor, B34, 0.75KW, 2900RPM,Stainless steel

BJ-Gear TENV80A-2 IP69K, AC-Motor, B34, 0.75KW, 2900RPM,Stainless steel HV82SPMDKH2PTENN4KSA1-N---NNN

IP classification IP 69K
Speed (RPM) 2900
Rated output (kW) 0.75
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 2.45
Mounting B34
BCD 100
Poles 2
Efficiency standard IE4
Shaft diameter (mm) 19
Cooling TENV
Supplier product ID SPMDKH2PTENN4KSA1-N---NNN

€839.49

excl. VAT

Quantity

Items 1-10 of 25
