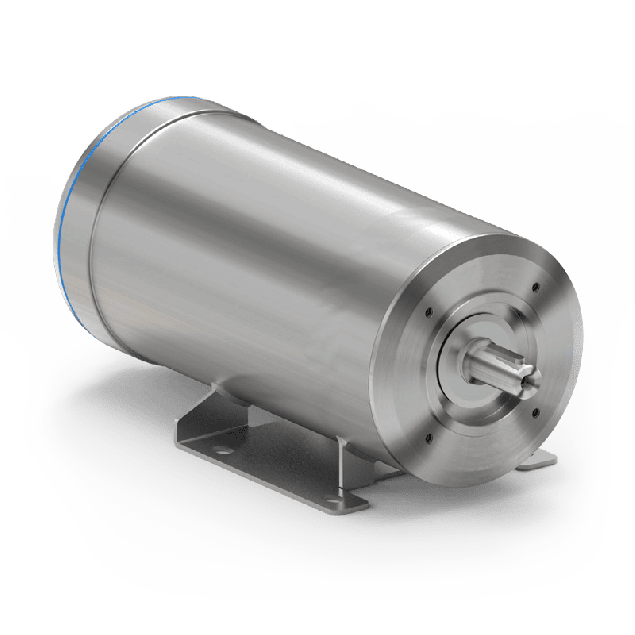

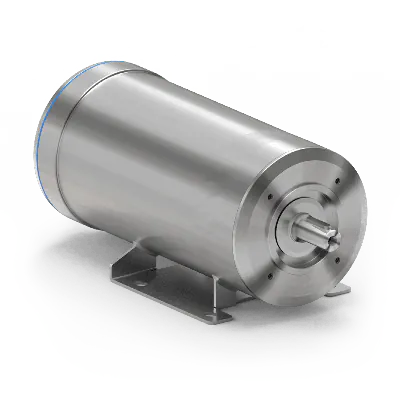

Clean Geartech TENV80A-2 IP69K, AC-Motor, B34, 0.75KW, 2900RPM, 230/400, Stainless steel
HV82SPMDKH2PTENN4KSA1-N---NNNThe Clean Geartech TENV80A-2 is a high-speed stainless steel AC motor engineered for hygienic environments where performance, reliability, and ease of cleaning are critical. With a 0.75 kW output at 2900 RPM (2-pole, 50 Hz), and operating on 230/400 V, this IEC 80 frame motor supports fast-paced production lines and continuous-duty operation.
Its TENV (Totally Enclosed Non-Ventilated) housing prevents airflow through the motor, eliminating contamination risk from airborne particles or process fluids. The IP69K-rated stainless steel enclosure ensures resilience against high-pressure, high-temperature washdowns, making it ideal for the food, dairy, and pharmaceutical sectors.
With B34 mounting, the motor offers both foot and face flange configurations, allowing flexibility in integrating with stainless steel gear units or directly onto machinery. Equipped with sealed bearings and insulation class F, it guarantees long service life with minimal maintenance.
A powerful and compact solution for high-speed conveyors, pumps, and mixers operating under hygienic constraints.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.75 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-2
- Power Output: 0.75 kW
- Nominal Torque: 2.45 Nm
- Efficiency Rating: 84.6%
- Starting Current Ratio: 12.5
- Certifications: UL, cURus
Downloads
