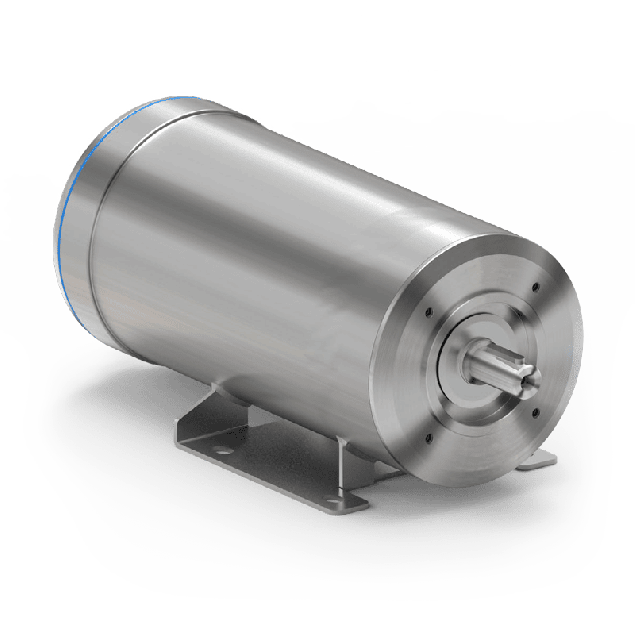

Clean Geartech TENV90L-4 IP69K, AC-Motor, B34, 1.5KW, 1475RPM, 230/400, Stainless steel
HV82SPMEKK4PTENN4KSA1-N---NNNThe Clean Geartech TENV90L-4 is a hygienic, non-ventilated stainless steel AC motor built for washdown-critical environments where reliability and cleanability are essential. Delivering 1.5 kW at 1475 RPM (4-pole, 50 Hz), this IEC 90 frame motor operates at 230/400 V and is ideal for continuous operation under demanding conditions.
The TENV (Totally Enclosed Non-Ventilated) enclosure eliminates the need for forced ventilation, protecting internal components from contamination and moisture. The smooth stainless steel housing is IP69K-rated, making the motor fully resistant to high-pressure, high-temperature cleaning—ideal for use in food processing, pharmaceuticals, and CIP zones.
Featuring a B34 mounting design (foot and face flange), the motor offers flexible installation for machine builders integrating hygienic gearboxes or compact equipment layouts. With insulation class F and sealed bearings, the motor is engineered for long service life with minimal maintenance.
A reliable and hygienic drive solution for pumps, conveyors, dosing systems, and automated machinery in environments with strict sanitation standards.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 1.5 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90L-4
- Power Output: 1.5 kW
- Nominal Torque: 9.75 Nm
- Efficiency Rating: 87.9%
- Starting Current Ratio: 9.8
- Certifications: UL, cURus
