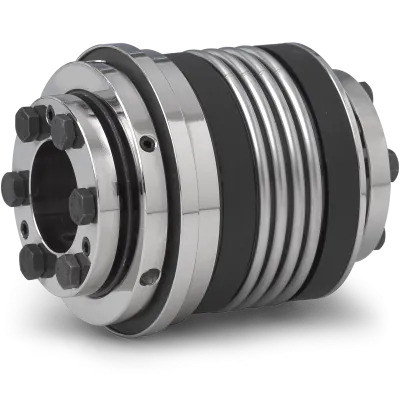

SK3 150 F Sicherheitskupplung, Einstellbereich: 80-150Nm, Edelstahl, gehärteter Stahl und Stahl
HV3020111510Die Sicherheitskupplung SK2 der Größe 150 mit Konusklemmverbindungen und Faltenbalgkupplung ist ein zuverlässiges und leistungsstarkes mechanisches Gerät, das eine optimale Drehmomentübertragung und Schutz vor Überlast gewährleistet. Mit seinen fortschrittlichen Funktionen und seiner langlebigen Konstruktion bietet er eine hervorragende Lösung für verschiedene industrielle Anwendungen.
Spezifikationen
Produktbeschreibung
Downloads
2.216,87 €
auf Bestellung
Voraussichtlicher Versand: 07-11-2024
Weitere Informationen
Material
Edelstahl, gehärteter Stahl und Stahl
Länge (mm)
105
Maximales Moment (Nm)
150
Kupplungsgröße
150
Außendurchmesser (mm)
Ø81
Bohrung D1
Ø22mm H7
Bohrung D2
Ø30mm H7
Beschreibung
Hauptmerkmale:
- Zwei konische Spannvorrichtungen mit je sechs Anzugsschrauben für eine sichere und präzise Verbindung.
- Sicherheitssystem auf der Basis eines federbelasteten Kugelrasters, das einen wirksamen Überlastschutz bietet und die Sicherheit während des Betriebs erhöht.
- Funktionssystem ermöglicht vollständiges Ausrasten und manuelles Wiedereinrasten (F).
Spezifikationen:
- Drehmoment-Einstellbereich: 80-150Nm.
- Großer Betriebstemperaturbereich von -30°C bis +100°C (-22°F bis +212°F), der eine zuverlässige Leistung in verschiedenen Umgebungen ermöglicht.
Konstruktion und Materialien:
- Der Faltenbalg der Kupplung ist aus hochwertigem Edelstahl gefertigt, was eine ausgezeichnete Korrosionsbeständigkeit und Langlebigkeit gewährleistet.
- Das Sicherheitssystem ist aus gehärtetem Stahl gefertigt und bietet eine außergewöhnliche Festigkeit und Haltbarkeit.
- Die Klemmnaben sind aus Edelstahl gefertigt und garantieren Robustheit und Zuverlässigkeit.
Spezifikationen der Bohrung:
- Bohrung D1: Ø22mm H7
- Bohrung D2: Ø30mm H7
Downloads
STEP file: SK3 150 105 F 22 30 90 80 150 5
STEP file: SK3 150 105 F 22 30 90 80 150 5.stp
