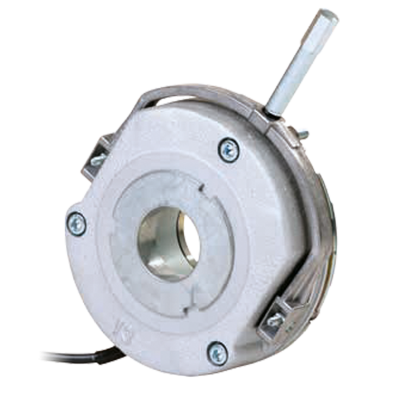

Precima Federkraftbremse FDB, fest mit Verschlußkappe, 13, 48VDC, Ø24
HV2052113235Die Precima FDB Federkraftbremsen Größe 13 mit festem Bremsmoment ist eine sehr zuverlässige und robuste Bremse, die für den universellen Einsatz in verschiedenen Bereichen der Antriebstechnik konzipiert ist. Mit ihren Eigenschaften und ihrer Technik gewährleistet diese Bremse optimale Leistung und Sicherheit in einer Vielzahl von industriellen und mechanischen Anlagen.
Spezifikationen
Produktbeschreibung
Downloads
205,47 €
auf Bestellung
Voraussichtlicher Versand: 31-01-2025
Weitere Informationen
IP-Schutz
IP 54/55
Spannung (V)
48
Bremsmoment (Nm)
20
Höhe der Bremse (mm)
53.1
Produzent
Precima
BCD
112
Typenbezeichnung - Lieferant
FDB 13 N S 20NM-48VDC-24H7
Flansch Code
3C
Größe
13
Naben-Durchmesser
Ø24H7
Typ
Robuste Arbeits- oder Haltebremse
Beschreibung
Hauptmerkmale:
- Bremse Größe 13: Kompakte und platzsparende Bauweise, geeignet für die Integration in verschiedene Geräte und Anlagen.
- Bremsspannung 48VDC: Arbeitet effizient mit einer 48VDC-Stromversorgung und bietet eine konstante und zuverlässige Bremsleistung.
- Bremsmoment 20Nm: Liefert eine starke Bremskraft von 20 Nm und sorgt so für schnelle und kontrollierte Stopps für mehr Sicherheit.
- Schutzklasse IP54/55: Gebaut, um rauen Umgebungsbedingungen zu widerstehen, und schützt vor dem Eindringen von Staub und Wasser.
- Verschlußkappe: Ausgestattet mit einer Verschlußkappe, die die Haltbarkeit und Widerstandsfähigkeit gegen äußere Einflüsse weiter erhöht.
