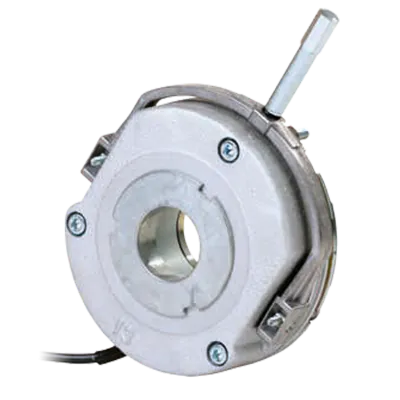

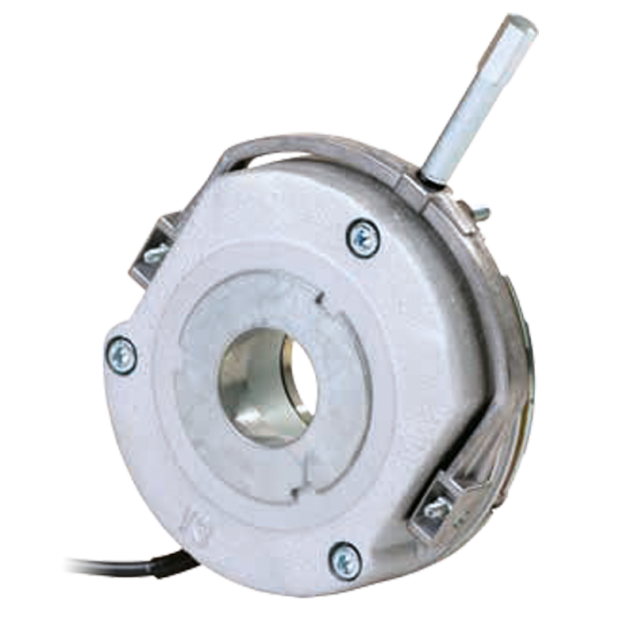

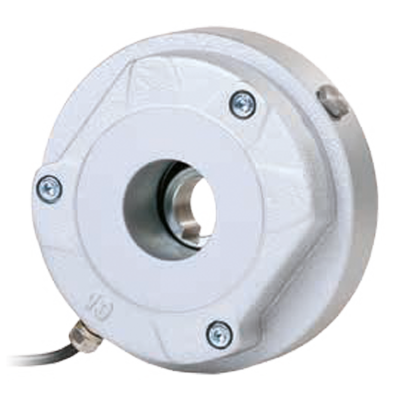

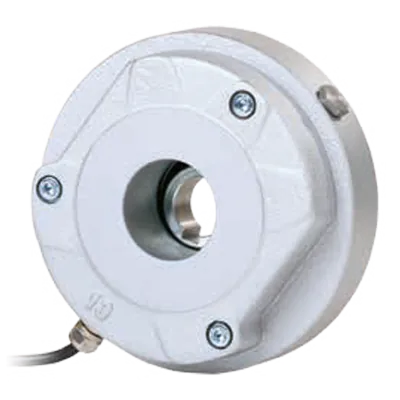

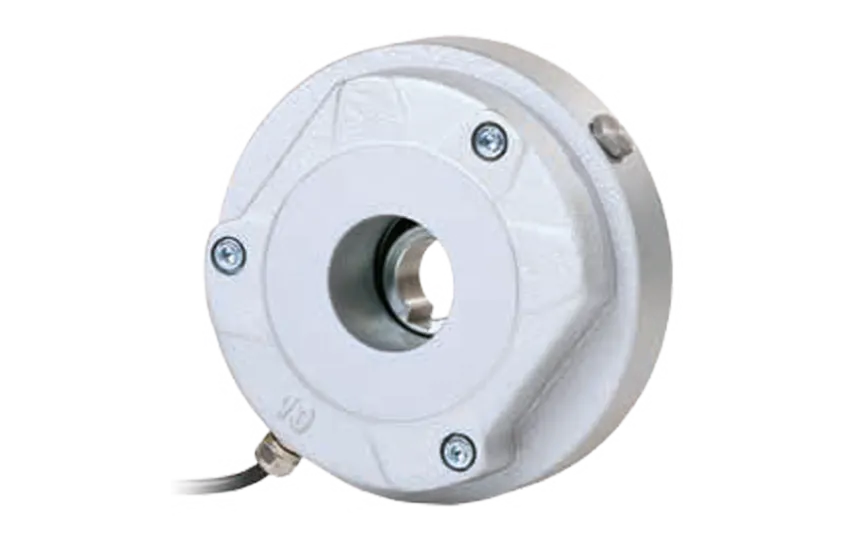

Precima Federkraftbremse FDB, fest, 10, 180VDC, 20H7Ø, 1m Kabel
HV2052110333ADie Precima FDB Federkraftbremse Größe 10 ist eine zuverlässige und robuste Bremslösung für den universellen Einsatz in allen Bereichen der Antriebstechnik. Mit ihrer Leistungsfähigkeit und langlebigen Konstruktion sorgt diese Bremse für optimale Sicherheit und Kontrolle bei verschiedenen Anwendungen.
Spezifikationen
Produktbeschreibung
Downloads
150,21 €
Auf Lager
Voraussichtlicher Versand: 24-10-2024
Weitere Informationen
IP-Schutz
IP 54/55
Spannung (V)
180
Bremsmoment (Nm)
10
Höhe der Bremse (mm)
47.7
Produzent
Precima
BCD
90
Typenbezeichnung - Lieferant
FDB 10 N S 10NM-180VDC-20H7
Flansch Code
3B
Größe
10
Länge des Kabels (M)
1
Naben-Durchmesser
Ø20H7
Typ
Robuste Arbeits- oder Haltebremse
Beschreibung
Hauptmerkmale:
- Bremse Baugröße 10: Die Bremse Baugröße 10 ist für ein breites Anwendungsspektrum konzipiert und bietet ein perfektes Gleichgewicht zwischen Kompaktheit und Leistung.
- Bremsspannung 180VDC: Die 180VDC-Bremsspannung sorgt für eine hohe Bremsleistung und gewährleistet eine effiziente und effektive Bremsleistung.
- 1m Kabel: Ausgestattet mit einem 1-Meter-Kabel bietet die Bremse Flexibilität bei der Installation und Integration in verschiedene Systeme.
- Bremsmoment 10Nm: Mit einem festen Bremsmoment von 10Nm liefert diese Bremse eine konstante und zuverlässige Kraft zum Anhalten und erhöht so die allgemeine Sicherheit.
- Schutzklasse IP54/55: Die Schutzart IP54/55 schützt die Bremse vor Staub, Schmutz und Wasser und macht sie damit für anspruchsvolle Umgebungen geeignet.
