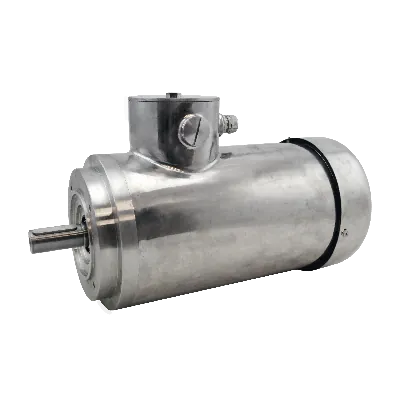

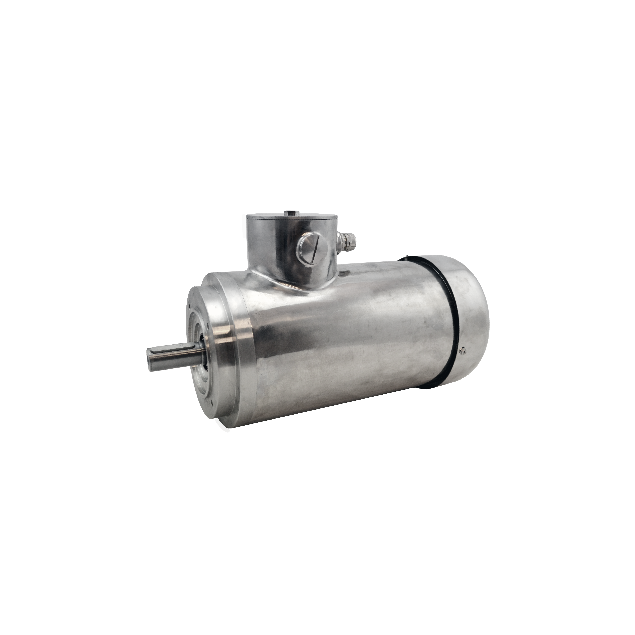

Marlin Wechselstrommotor TEFC 90L-4, 1.50kW, 1400RPM, 230/400V, 50Hz, IP66, Edelstahl
TEFC90L-4Der Marlin TEFC90L-4 Wechselstrommotor ist eine robuste und effiziente Wahl für den industriellen Einsatz. Er ist aus Edelstahl gefertigt, um Haltbarkeit und Hygiene zu gewährleisten. Mit einer Leistung von 1,50 kW und 1400 U/min arbeitet er effektiv mit 230/400 V bei 50 Hz. Seine Schutzart IP66 gewährleistet den Schutz vor Staub und Wasser und macht ihn zu einem zuverlässigen Motor für anspruchsvolle Umgebungen.
Spezifikationen
Produktbeschreibung
Downloads
1.482,29 €
auf Bestellung
Voraussichtlicher Versand: 27-11-2024
Weitere Informationen
IP-Schutz
IP 66
Produzent
Kaiser motoren
Modell
TEFC 90L-4
Drehzahl (RPM)
1400
Nennleistung (kW)
1.5
Wirkungsgrad (% FL)
85.3
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
5.54/3.20
Nenndrehmoment (Nm)
9.88
Startstromverhältnis (IA/IN)
6.6
Montage
B14
IEC Norm
90
BCD
115
Pole
4
Zertifizierer
UL, cURus
Effizienzklasse
IE2
Wellendurchmesser (mm)
Ø24
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- Clean-in-Place (CIP) Fähigkeit: Ermöglicht eine einfache und effiziente Reinigung ohne Demontage.
- Schutzart IP66: Bietet Schutz gegen das Eindringen von Staub und Wasser und schützt den Motor vor äußeren Einflüssen.
- Vollständig geschlossene lüftergekühlte (TEFC) Konstruktion: Erhöht die Lebensdauer des Motors, indem es das Eindringen von Staub, Schmutz und Feuchtigkeit in den Motor verhindert.
- Hohe Leistung: Bietet eine Leistung von 1,50kW.
- Optimale Drehzahl: Arbeitet mit einer zuverlässigen Drehzahl von 1400RPM.
- Hoher Wirkungsgrad: Mit Wirkungsgrad IE2.
Spezifikationen:
- Material: Hergestellt aus EN 1.4301/AISI 304 und konform mit EN 1672-2.
- Zertifizierung: Mit cURus-Zertifizierung und UL-Zulassung.
Downloads
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer.pdf
Detei herunterladen
