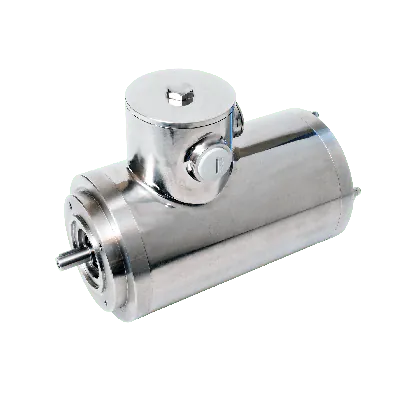

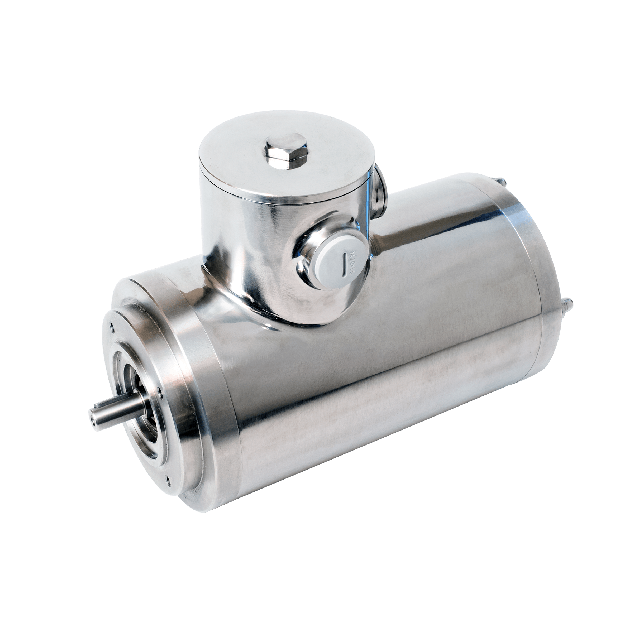

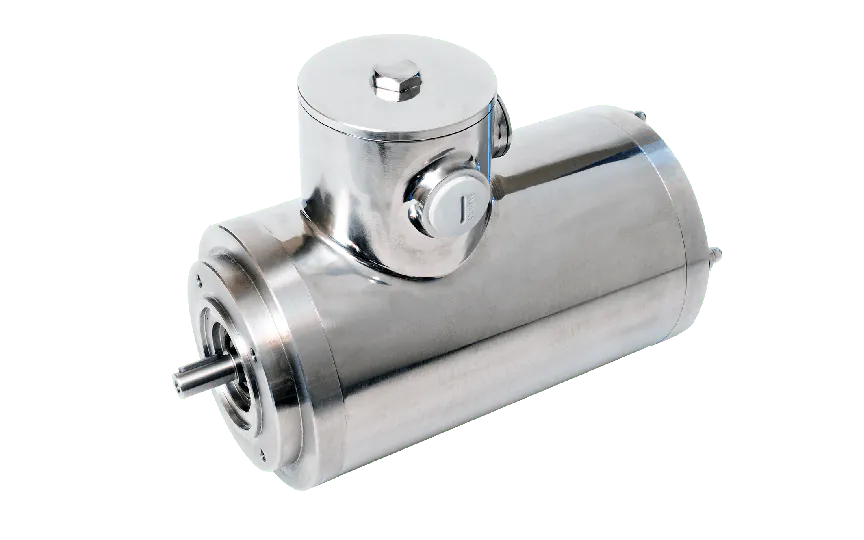

Marlin Wechselstrommotor TENV90S-4, 1.10kW, 1400RPM, 230/400V, 50Hz, IP66, Edelstahl
TENV90S-4Der Wechselstrommotor TENV90S-4 von Marlin ist aus Edelstahl gefertigt. Mit einer Leistung von 1,1kW und einer konstanten Drehzahl von 1400RPM arbeitet er nahtlos in 230/400V Netzen bei 50Hz. Der Motor verfügt über die Schutzart IP66 und ist somit gegen Umwelteinflüsse geschützt.
Spezifikationen
Produktbeschreibung
Downloads
1.420,60 €
auf Bestellung
Voraussichtlicher Versand: 22-11-2024
Weitere Informationen
IP-Schutz
IP 66
Produzent
Kaiser motoren
Modell
TENV 90S-4
Drehzahl (RPM)
1400
Nennleistung (kW)
1.1
Wirkungsgrad (% FL)
85.8
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
4.33/2.50
Nenndrehmoment (Nm)
7.14
Startstromverhältnis (IA/IN)
9.4
Montage
B14
IEC Norm
90
BCD
115
Pole
4
Zertifizierer
UL, cURus
Effizienzklasse
IE3
Wellendurchmesser (mm)
Ø24
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- An Ort und Stelle zu reinigen: Entwickelt für einfache Reinigung und Wartung.
- IP66-Bewertung: Bietet Schutz gegen Staub und starkes Strahlwasser.
- Vollständig gekapselt und unbelüftet (TENV): Die geschlossene Bauweise des Motors verhindert das Eindringen von Verunreinigungen.
- 1,10kW Leistung: Bietet Leistung für Heavy duty Anwendungen.
- 1400RPM: Gleichbleibende und präzise Drehzahl für mehr Produktivität und Kontrolle.
- B14-Flansch: Erleichtert den Einbau und die Integration in verschiedene industrielle Anlagen.
- Wirkungsgrad IE3: Hoher Wirkungsgrad zur deutlichen Senkung des Stromverbrauchs und der Betriebskosten.
Spezifikationen:
- Werkstoffe: EN 1.4301/AISI 304, EN 1672-2.
- Zertifizierung: cURus zertifiziert und UL zugelassen.
Downloads
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer.pdf
Detei herunterladen
