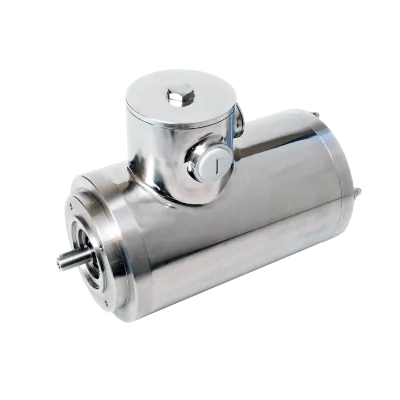

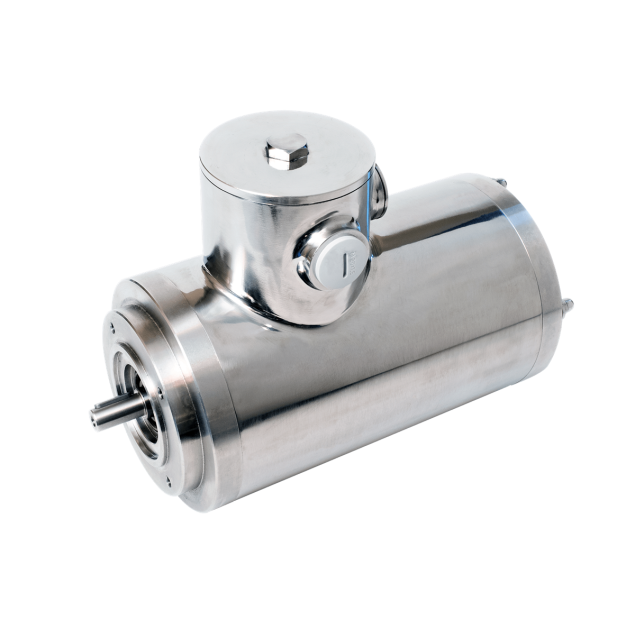

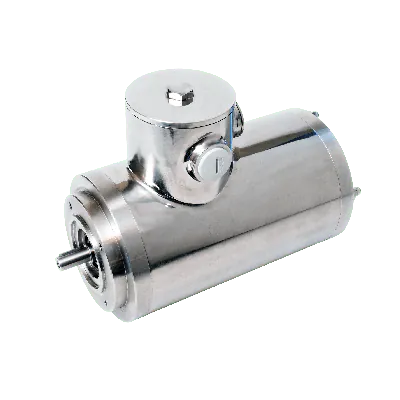

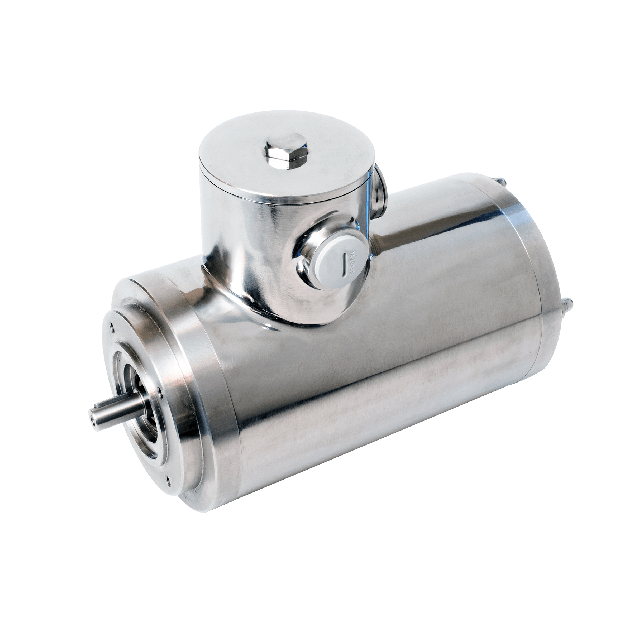

Marlin Wechselstrommotor TENV63B-4, 0.18kW, 1400RPM, 230/400V, 50Hz, IP66, Edelstahl
TENV63B-4Der Wechselstrommotor TENV63B-4 von Marlin ist eine robuste und effiziente Lösung, die aus Edelstahl gefertigt ist. Dieser Motor liefert eine zuverlässige Leistung von 0,18kW bei 1400RPM und ist damit ideal für eine Vielzahl von industriellen Anwendungen. Er arbeitet reibungslos an 230/400V Netzen mit der Standardfrequenz von 50Hz.
Spezifikationen
Produktbeschreibung
Downloads
724,78 €
Auf Lager
Voraussichtlicher Versand: 24-10-2024
Weitere Informationen
IP-Schutz
IP 66
Produzent
Kaiser motoren
Modell
TENV 63B-4
Drehzahl (RPM)
1400
Nennleistung (kW)
0.18
Wirkungsgrad (% FL)
71
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
0.95/0.55
Nenndrehmoment (Nm)
1.25
Startstromverhältnis (IA/IN)
3.8
Montage
B14
IEC Norm
63
BCD
75
Pole
4
Zertifizierer
UL, cURus
Effizienzklasse
IE3
Wellendurchmesser (mm)
Ø11
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- Clean-In-Place (CIP): Ermöglicht eine einfache und effiziente Reinigung.
- Schutzart IP66: Bietet Schutz gegen Staub und Wasser.
- Vollständig gekapselt, nicht belüftet (TENV): Die Motorkonstruktion gewährleistet Schutz vor externen Verunreinigungen.
- Leistung: Mit einer robusten Leistung von 0,18kW liefert dieser Motor eine konstante und starke Leistung.
- Drehzahl: Mit 1400RPM sorgt er für einen reibungslosen und effizienten Betrieb bei verschiedenen Anwendungen.
- B14-Flansch: Ermöglicht eine einfache Montage und Kompatibilität mit einer breiten Palette von Geräten und Maschinen.
Spezifikationen:
- Werkstoffe: Gefertigt aus EN 1.4301/AISI 304 und EN 1672-2.
- Zertifizierung: Mit cURus-Zertifizierung und UL-Zulassung.
Downloads
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer
Allgemeine Betriebsanleitung Edelstahlmotoren Mit Käfigläufer.pdf
Detei herunterladen
