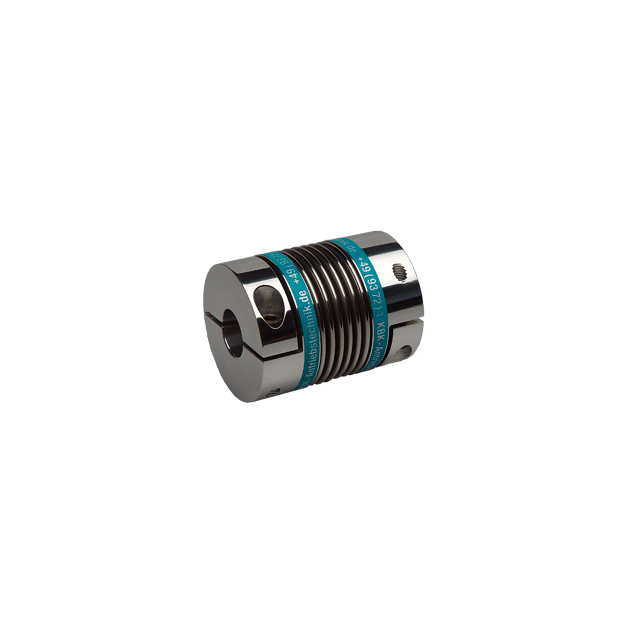

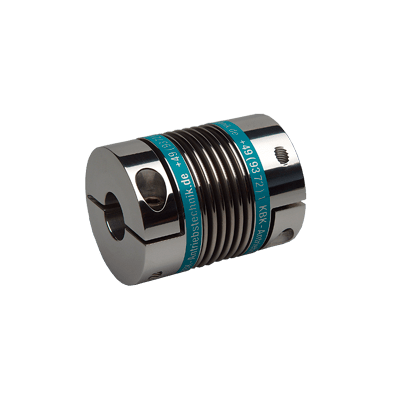

KB4 200 101 N25 N27 Metallbalgkupplung
HV71015471Die spielfreie KB4 Metallbalgkupplungen der Größe 200 mit Klemmnaben ist eine zuverlässige Kupplung, die für Präzisionsanwendungen entwickelt wurde. Ihre wichtigsten Merkmale und Spezifikationen machen sie zu einer idealen Wahl für den Anschluss von Servomotoren in verschiedenen Branchen wie Werkzeugmaschinen, Automatisierungstechnik, Verpackungsmaschinen und Holzbearbeitungsmaschinen.
Spezifikationen
Produktbeschreibung
Downloads
207,62 €
auf Bestellung
Voraussichtlicher Versand: 12-11-2024
Weitere Informationen
Material
Edelstahl und Stahl
Länge (mm)
101
Maximales Moment (Nm)
200
Kupplungsgröße
200
Beschreibung
Wesentliche Merkmale:
- Hohe Torsionssteifigkeit für verbesserten Wirkungsgrad der Kraftübertragung
- Ausgleich von Wellenversatz mit geringen Rückstellkräften, dadurch weniger Verschleiß
- Einfacher und bequemer Zusammenbau für eine problemlose Installation
Spezifikationen:
- Temperaturbereich: -30°C bis +120°C
Werkstoffe:
- Faltenbalg: Edelstahl-Konstruktion gewährleistet Haltbarkeit und Korrosionsbeständigkeit
- Nabe: Hergestellt aus robustem Stahl, bietet Festigkeit und Stabilität für zuverlässige Leistung
Spezifikationen der Bohrung:
- Bohrung D1: Ø25mm H7 mit Keilnut
- Bohrung D2: Ø27mm H7 mit Keilnut
