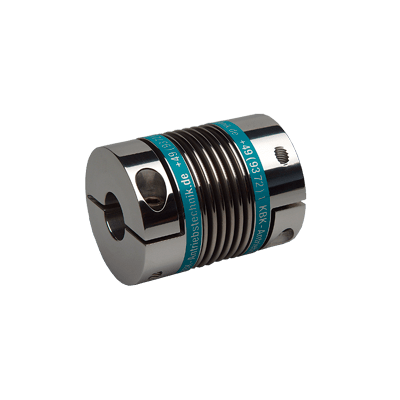

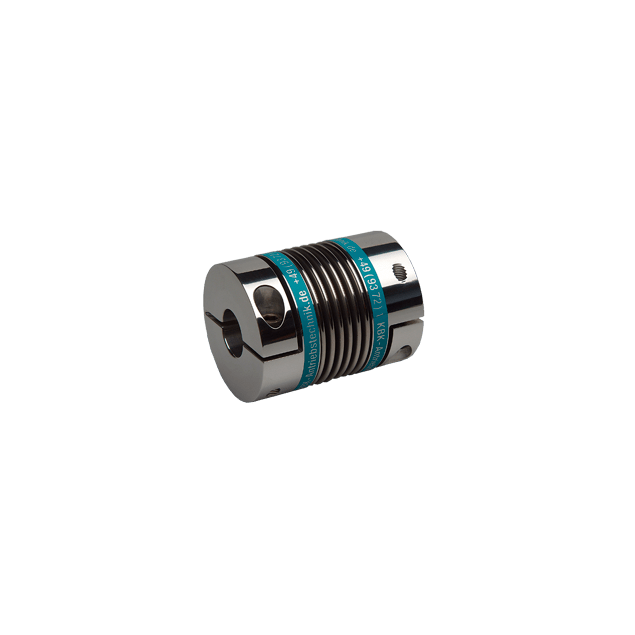

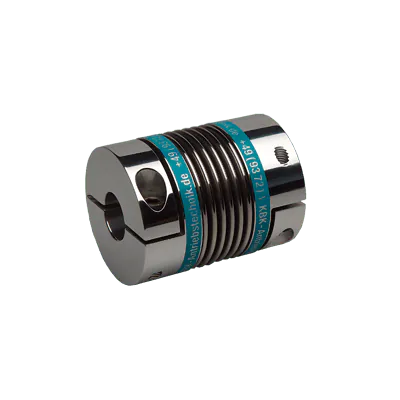

KB4 150 102 22 27 Metallbalgkupplung
HV71015468Die spielfreie Metallbalgkupplung KB4 der Größe 150 mit Spannzangen ist eine Hochleistungskupplung, die für Präzisionsanwendungen entwickelt wurde. Mit ihren Hauptmerkmalen, Spezifikationen und Materialien bietet diese Kupplung Leistung und Zuverlässigkeit in verschiedenen industriellen Umgebungen.
Spezifikationen
Produktbeschreibung
Downloads
251,34 €
auf Bestellung
Voraussichtlicher Versand: 12-11-2024
Weitere Informationen
Material
Edelstahl und Aluminium
Länge (mm)
102
Maximales Moment (Nm)
150
Kupplungsgröße
150
Beschreibung
Hauptmerkmale:
- Hohe Torsionssteifigkeit: Sorgt für eine Drehmomentübertragung und gewährleistet eine präzise Bewegungssteuerung.
- Ausgleich von Wellenversatz: Effektiver Ausgleich von Ausrichtungsfehlern bei geringen Rückstellkräften, was zu einem reibungslosen Betrieb führt.
- Einfacher Zusammenbau: Entwickelt für eine problemlose Installation, spart wertvolle Zeit und Mühe bei der Einrichtung.
Spezifikationen:
- Temperaturbereich: Funktioniert zuverlässig in einem Temperaturbereich von -30 °C bis +120 °C.
Werkstoffe:
- Faltenbalg: Hergestellt aus robustem Edelstahl, der hohe Festigkeit, Korrosionsbeständigkeit und Langlebigkeit gewährleistet.
- Nabe: Hergestellt aus leichtem und robustem Aluminium, das ein hervorragendes Gleichgewicht zwischen Festigkeit und Gewicht bietet.
Spezifikationen der Bohrung:
- Bohrung D1: Ø22mm H7 mit Keilnut
- Bohrung D2: Ø27mm H7 mit Keilnut
