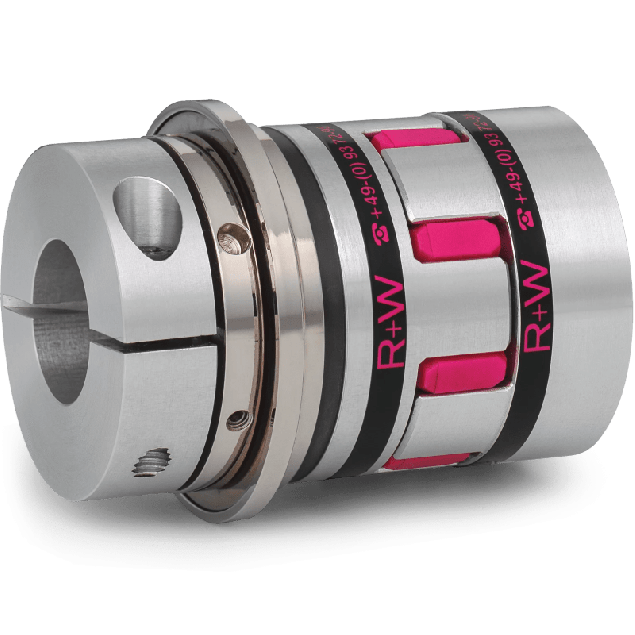

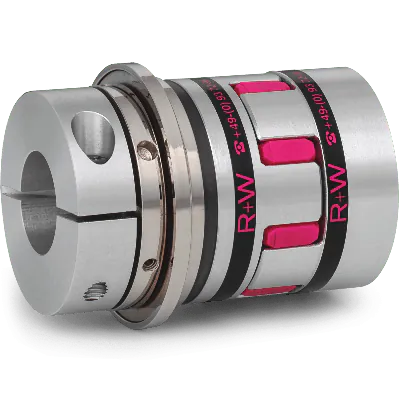

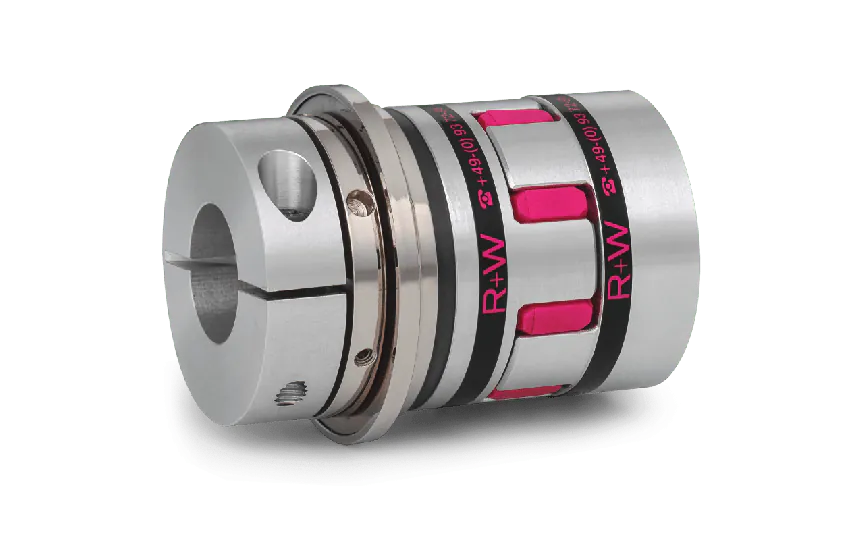

ES2 10 A W sicherheitskupplung, Einstellbereich: 2-6 Nm, Stahl, Aluminium und TPU
HV3020160502Der Sicherheitskupplung ES2 der Größe 10 mit Klemmnaben und Elastomerkupplung ist eine leistungsstarke Sicherheitseinrichtung zum Schutz von Maschinen und Anlagen vor Drehmomentüberlastung. Mit seiner robusten Konstruktion und seinen fortschrittlichen Funktionen bietet dieser Drehmomentbegrenzer eine zuverlässige und präzise Drehmomentkontrolle in verschiedenen industriellen Anwendungen.
Spezifikationen
Produktbeschreibung
Downloads
213,52 €
auf Bestellung
Voraussichtlicher Versand: 06-11-2024
Weitere Informationen
Material
Stahl, Aluminium und TPU
Länge (mm)
60
Maximales Moment (Nm)
25
Kupplungsgröße
10
Außendurchmesser (mm)
Ø45
Bohrung D1
Ø14mm H7
Bohrung D2
Ø15mm H7
Beschreibung
Hauptmerkmale:
- Funktionssystem: Einzelstellung mit automatischer Wiedereinrastung als Standardbetriebsart.
- Einstellbereich: Das Drehmoment kann zwischen 2 Nm und 6 Nm eingestellt werden.
- Drehmoment zum Auskuppeln: Der Drehmomentbegrenzer rastet bei einem voreingestellten Drehmoment von 5 Nm aus.
Spezifikationen:
- Elastomer Typ A mit einer Shore-Härte von 98 Sh D
- Temperaturbereich von -30 °C bis +100 °C.
Konstruktion und Werkstoffe:
- Die Konstruktion besteht aus zwei Klemmnaben mit je einer Klemmschraube, mit konkaven Mitnehmerbacken und einem Sicherheitssystem nach dem federbelasteten Kugeldruckprinzip.
- Das Sicherheitssystem aus gehärtetem Stahl gewährleistet eine lange Lebensdauer.
- Hochfeste Aluminium-Klemmnaben sorgen für sichere Befestigung und effiziente Kraftübertragung.
- Elastomereinsatz aus verschleißfestem und thermisch stabilem TPU für verbesserte Leistung und verlängerte Lebensdauer.
Spezifikationen der Bohrung:
- Bohrung D1: Ø15mm H7
- Bohrung D2: Ø14mm H7
