Beschreibung

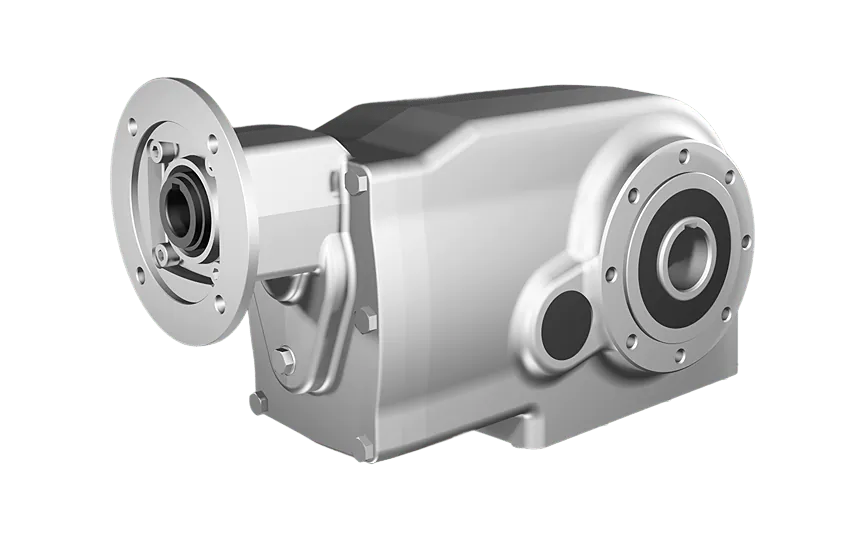

Clean-Geartech is a renowned manufacturer of precision-engineered stainless steel gearboxes, catering to demanding applications in the food, pharmaceutical, and chemical industries. With a rigorous focus on hygiene, durability, and mechanical efficiency, Clean-Geartech delivers optimal performance under the most challenging operating conditions.This specific model – the Clean-Geartech X74N – is a stainless steel bevel gearbox with a hollow output shaft and a high reduction ratio, engineered for corrosion resistance and long life in harsh environments.Key features, benefits, and application insights:
Constructed entirely from AISI 316L stainless steel, including housings and shafts – ensuring excellent resistance to chemical corrosion and aggressive cleaning procedures in hygiene-critical environments.
Equipped with a Ø40H7 stainless steel hollow output shaft – enables direct shaft integration for compact and hygienic machine layouts, reducing contamination risk and installation volume.
Input interface 90B14 flange – standardized mounting pattern for easy integration with IEC motors, minimizing adaptation costs and installation time.
High gear ratio of 85.99:1 distributed over 4 stages – ideal for applications requiring precise torque multiplication, low output speed, and high load capacity, such as conveyors, mixers, and dosing systems.
High efficiency of 92% – minimizes energy losses even under continuous operation, reducing power consumption and heat generation, which is critical in temperature-sensitive processes.
Input shaft dimension Ø24 mm – supports a wide motor range and ensures mechanical compatibility with custom drive systems.
Compact gear size X74N – optimized for enclosure within tight machine designs, enabling reduced footprint without sacrificing torque performance.
Fully enclosed and smooth surface design – prevents bacterial buildup and supports hygienic design principles (EHEDG-compatible environments). Applications include: cleanroom automation, pharmaceutical processing equipment, food-grade conveyor systems, biotech machinery, and chemical dosing stations – wherever hygiene, corrosion resistance, and mechanical reliability are a must.
Constructed entirely from AISI 316L stainless steel, including housings and shafts – ensuring excellent resistance to chemical corrosion and aggressive cleaning procedures in hygiene-critical environments.
Equipped with a Ø40H7 stainless steel hollow output shaft – enables direct shaft integration for compact and hygienic machine layouts, reducing contamination risk and installation volume.
Input interface 90B14 flange – standardized mounting pattern for easy integration with IEC motors, minimizing adaptation costs and installation time.
High gear ratio of 85.99:1 distributed over 4 stages – ideal for applications requiring precise torque multiplication, low output speed, and high load capacity, such as conveyors, mixers, and dosing systems.
High efficiency of 92% – minimizes energy losses even under continuous operation, reducing power consumption and heat generation, which is critical in temperature-sensitive processes.
Input shaft dimension Ø24 mm – supports a wide motor range and ensures mechanical compatibility with custom drive systems.
Compact gear size X74N – optimized for enclosure within tight machine designs, enabling reduced footprint without sacrificing torque performance.
Fully enclosed and smooth surface design – prevents bacterial buildup and supports hygienic design principles (EHEDG-compatible environments). Applications include: cleanroom automation, pharmaceutical processing equipment, food-grade conveyor systems, biotech machinery, and chemical dosing stations – wherever hygiene, corrosion resistance, and mechanical reliability are a must.
Spezifikationen
IP-Schutz
IP66
Material
Edelstahl AISI 316L
Übersetzung
85,99:1
BCD eingang
115
BCD abgang
130
Getriebe Stufen
4
Wirkungsgrad (%)
92
Getrieb Abgangswelle (mm)
40
Getriebe Eingangswelle (mm)
24
Getriebe Motor Schnittstelle
90B14
Getriebe grösse
X74N
Abgangs geschwindigkeit beim 1400 U/min
16.3
Max abgangs Drehmoment (Nm)
675
Max kW eingang beim 1400 U/min
1.3
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Foreign trade
HS-Code
84834021
ERP Nettogewicht (Kg)
31.00
Herkunftsland
ITA
