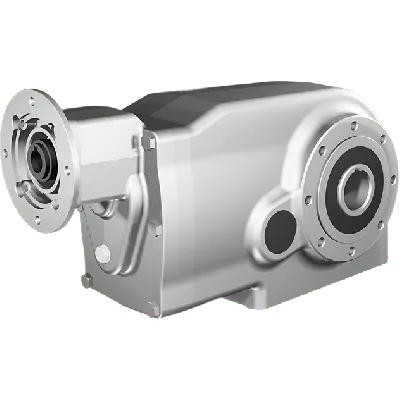

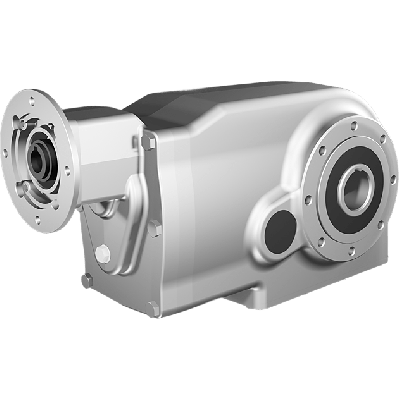

Clean-Geartech X74N, Kegelstirnradgetriebe Ø40H7 Hohlwelle, 205,95:1, Eingang 80B14, V5, Edelstahl
HV82PX74NI10-FFBN-RV5-D-OFUntersetzung: 205,95:1 Wirkungsgrad: 92 % BCD Eingang: 100 BCD Ausgang: 130 Getriebegröße: X74N Übersetzungsstufen: 4 Eingangswelle (mm): 19 Ausgangswelle (mm): 40 Hohlwelle Toleranz: Ø40H7 Getriebemotor-Schnittstelle: 80B14 Material Zahnradsatz: Edelstahl AISI 316LAlle rotierenden Komponenten sind aus hochwertigem, korrosionsbeständigem Edelstahl gefertigt, ideal für anspruchsvolle Umgebungen in Lebensmittel-, Pharma- und Chemieanwendungen.
Spezifikationen
Produktbeschreibung
Downloads
4.438,00 €
Auf Lager
Voraussichtlicher Versand:
Wird geladen …
Zubehör
Weitere Informationen
IP-Schutz
IP66
HS-Code
84834021.000000
Material
Edelstahl AISI 316L
Übersetzung
205,95:1
BCD eingang
100
BCD abgang
130
Getriebe Stufen
4
Wirkungsgrad (%)
92
Getrieb Abgangswelle (mm)
40
Getriebe Eingangswelle (mm)
19
Getriebe Motor Schnittstelle
80B14
Getriebe grösse
X74N
Abgangs geschwindigkeit beim 1400 U/min
6.8
Max abgangs Drehmoment (Nm)
675
Max kW eingang beim 1400 U/min
0.52
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Beschreibung
Product: Clean-Geartech X74N, Bevel Gearbox, Stainless Steel Hollow Shaft Ø40H7, 205.95:1 Ratio, B14 Input FlangeMain Specifications:- Gear Ratio: 205.95:1 - Input BCD: 100 - Output BCD: 130 - Gear Input Shaft: Ø19 mm - Gear Output Shaft: Ø40H7 mm (Stainless Steel Hollow Shaft) - Gear Motor Interface: 80B14 - Gear Size: X74N - Gear Stages: 4-stage reduction - Material: Full stainless steel AISI 316L - Efficiency: Up to 92% - Manufacturer: Clean-Geartech Key Features and Application Possibilities:
- High gear ratio of 205.95:1 enables precise speed reduction and torque multiplication, ideal for processes requiring slow and steady motion such as conveyor systems, mixers, and dosing units.
- Excellent efficiency rating of 92% ensures minimal energy loss, improving system performance in demanding 24/7 industrial operations such as automated packaging lines or material handling systems.
- Constructed entirely of AISI 316L stainless steel, the unit offers outstanding corrosion resistance in aggressive environments, making it suitable for CIP/SIP systems, and exposure to salts, acids, or alkaline cleanings.
- The Ø40H7 stainless steel hollow output shaft allows direct mounting over driven shafts, reducing need for intermediate couplings while enhancing hygienic design and mechanical alignment.
- Compact 4-stage gearbox design ensures high torque transmission within a small footprint, ideal for restricted installations in machinery frameworks or process equipment.
- B14 motor interface (Ø80 mm) offers broad compatibility with IEC standard motors, enabling simple integration or retrofitting within existing systems.
- High structural and surface-grade finish minimizes bacterial adhesion and facilitates easy washdown, meeting stringent hygienic requirements in food-grade or pharmaceutical production lines.
- X74N size category balances performance and space optimization across diverse automation and mechanical drive applications, from filling machines to rotary process equipment.
- High gear ratio of 205.95:1 enables precise speed reduction and torque multiplication, ideal for processes requiring slow and steady motion such as conveyor systems, mixers, and dosing units.
- Excellent efficiency rating of 92% ensures minimal energy loss, improving system performance in demanding 24/7 industrial operations such as automated packaging lines or material handling systems.
- Constructed entirely of AISI 316L stainless steel, the unit offers outstanding corrosion resistance in aggressive environments, making it suitable for CIP/SIP systems, and exposure to salts, acids, or alkaline cleanings.
- The Ø40H7 stainless steel hollow output shaft allows direct mounting over driven shafts, reducing need for intermediate couplings while enhancing hygienic design and mechanical alignment.
- Compact 4-stage gearbox design ensures high torque transmission within a small footprint, ideal for restricted installations in machinery frameworks or process equipment.
- B14 motor interface (Ø80 mm) offers broad compatibility with IEC standard motors, enabling simple integration or retrofitting within existing systems.
- High structural and surface-grade finish minimizes bacterial adhesion and facilitates easy washdown, meeting stringent hygienic requirements in food-grade or pharmaceutical production lines.
- X74N size category balances performance and space optimization across diverse automation and mechanical drive applications, from filling machines to rotary process equipment.
