Beschreibung

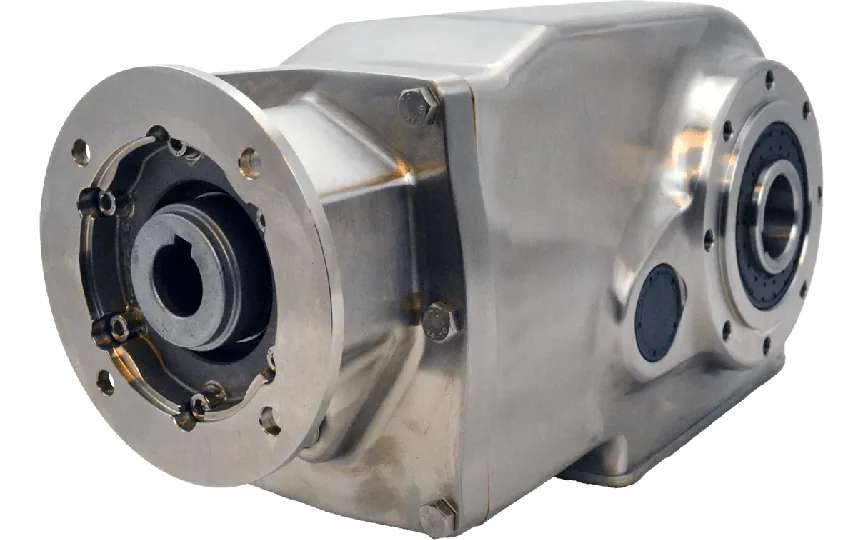

Clean-Geartech is a trusted manufacturer of precision stainless steel gearboxes developed specifically for demanding industrial environments. Known for engineering excellence and stringent quality control, Clean-Geartech products are ideal for applications requiring hygiene, corrosion resistance, and mechanical reliability.Product Highlights and Application Benefits:
✔ Manufactured in high-grade stainless steel AISI 316L for maximum corrosion resistance in aggressive environments like food processing, pharmaceutical manufacturing, and offshore installations.
✔ Equipped with a Ø40H7 hollow output shaft made from stainless steel (SS hollow shaft), ideal for torque transmission in compact installations and rinse-down areas.
✔ Features a standardized 90B14 motor interface for direct coupling with IEC-compatible motors, simplifying system integration and reducing installation time.
✔ Gear input shaft of Ø24 mm supports easy configuration with custom coupling elements or direct motor inputs, offering design flexibility for engineers.
✔ Delivers a high torque reduction with a 26.31:1 gear ratio, suitable for precision motion control and efficient speed reduction in automated machinery and conveyors.
✔ Utilizes a triple-stage bevel gear design, enhancing torque handling capacity while maintaining compact gearbox dimensions (Size X73N).
✔ Offers high mechanical efficiency of 94%, minimizing energy losses and optimizing power usage in continuous duty cycles.
✔ Superior reliability and extended service life, reducing maintenance needs and total cost of ownership in critical automation processes.
✔ Suitable for CIP (Clean-In-Place) systems, making it ideal for sanitary production areas where hygiene and durability are essential.
✔ Output BCD: 130 and input BCD: 115 supports standardized mounting in a variety of automation systems and custom frameworks.The Clean-Geartech X73N is the optimal stainless steel gearbox solution for technical specialists, design engineers, and system integrators working in cleanroom, marine, chemical, and food industry sectors.
✔ Manufactured in high-grade stainless steel AISI 316L for maximum corrosion resistance in aggressive environments like food processing, pharmaceutical manufacturing, and offshore installations.
✔ Equipped with a Ø40H7 hollow output shaft made from stainless steel (SS hollow shaft), ideal for torque transmission in compact installations and rinse-down areas.
✔ Features a standardized 90B14 motor interface for direct coupling with IEC-compatible motors, simplifying system integration and reducing installation time.
✔ Gear input shaft of Ø24 mm supports easy configuration with custom coupling elements or direct motor inputs, offering design flexibility for engineers.
✔ Delivers a high torque reduction with a 26.31:1 gear ratio, suitable for precision motion control and efficient speed reduction in automated machinery and conveyors.
✔ Utilizes a triple-stage bevel gear design, enhancing torque handling capacity while maintaining compact gearbox dimensions (Size X73N).
✔ Offers high mechanical efficiency of 94%, minimizing energy losses and optimizing power usage in continuous duty cycles.
✔ Superior reliability and extended service life, reducing maintenance needs and total cost of ownership in critical automation processes.
✔ Suitable for CIP (Clean-In-Place) systems, making it ideal for sanitary production areas where hygiene and durability are essential.
✔ Output BCD: 130 and input BCD: 115 supports standardized mounting in a variety of automation systems and custom frameworks.The Clean-Geartech X73N is the optimal stainless steel gearbox solution for technical specialists, design engineers, and system integrators working in cleanroom, marine, chemical, and food industry sectors.
Spezifikationen
IP-Schutz
IP66
Material
Edelstahl AISI 316L
Übersetzung
26,31:1
BCD eingang
115
BCD abgang
130
Getriebe Stufen
3
Wirkungsgrad (%)
94
Getrieb Abgangswelle (mm)
40
Getriebe Eingangswelle (mm)
24
Getriebe Motor Schnittstelle
90B14
Getriebe grösse
X73N
Abgangs geschwindigkeit beim 1400 U/min
53
Max abgangs Drehmoment (Nm)
675
Max kW eingang beim 1400 U/min
4
Montage position
B3
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Foreign trade
HS-Code
84834021
ERP Nettogewicht (Kg)
31.00
Herkunftsland
ITA
