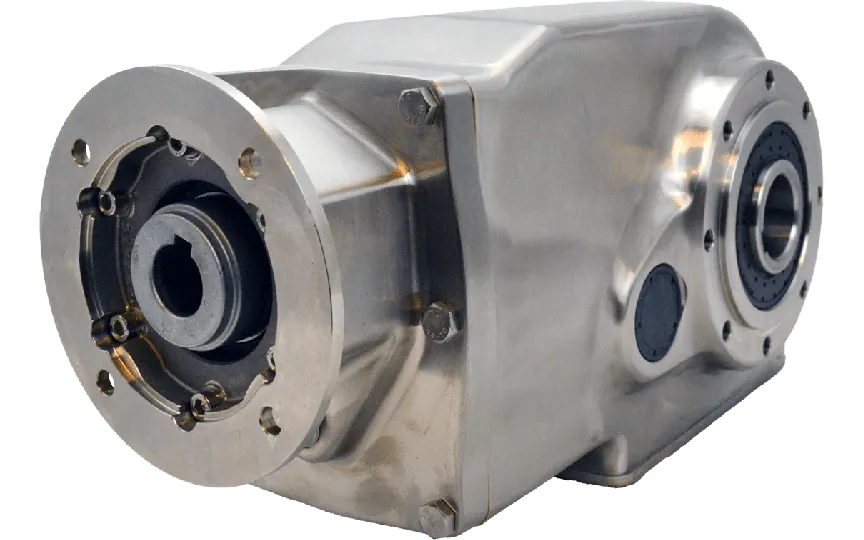

Clean-Geartech X73N, Kegelstirnradgetriebe Ø40H7 Hohlwelle, 17,21:1, Eingang 80B14, V5, Edelstahl
HV82PX73NI05-FFBN-RV5-D-OFBCD Eingang: 100, BCD Ausgang: 130 – Kompatibilität mit standardisierten Befestigungspunkten. Wirkungsgrad: 94 % – Energieeffiziente Kraftübertragung. Getriebeeingangswelle: 19 mm – Standardabmessung für einfache Integration. Getriebeausgangswelle: Ø40H7 mm – Präzise Passung mit H7-Toleranz. Untersetzungsverhältnis: 17,21:1 – Dreistufige Übersetzung für hohes Drehmoment. Getriebegröße: X73N, Getriebestufen: 3 – Kompakt bei gleichzeitig hoher Leistungsdichte. Motoranbindung: 80B14 – IEC-Flansch für einfache Integration. Zahnräder: Edelstahl AISI 316L – Korrosionsbeständig auch in aggressiven Umgebungen.
Spezifikationen
Produktbeschreibung
Downloads
4.276,00 €
Auf Lager
Voraussichtlicher Versand:
Wird geladen …
Zubehör
Weitere Informationen
IP-Schutz
IP66
Lieferant Produkt-ID
PX73NI05-FFBN-RV5-D
HS-Code
84834021.000000
Material
Edelstahl AISI 316L
Übersetzung
17,21:1
BCD eingang
100
BCD abgang
130
Getriebe Stufen
3
Wirkungsgrad (%)
94
Getrieb Abgangswelle (mm)
40
Getriebe Eingangswelle (mm)
19
Getriebe Motor Schnittstelle
80B14
Getriebe grösse
X73N
Abgangs geschwindigkeit beim 1400 U/min
81
Max abgangs Drehmoment (Nm)
600
Max kW eingang beim 1400 U/min
5.4
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Beschreibung
Manufacturer: Clean-Geartech is a leading manufacturer specializing in high-performance stainless steel gear solutions designed for demanding industrial environments. Known for their precision engineering and reliability, Clean-Geartech products are widely used across food processing, pharmaceutical, chemical, and marine industries due to their exceptional corrosion resistance and long service life.Key Features, Benefits, and Applications:
● Constructed from stainless steel AISI 316L – ensures excellent resistance to corrosion, making it ideal for hygienic and washdown applications in food and beverage, pharmaceutical, and chemical processing environments.
● Hollow output shaft Ø40H7 in SS – provides easy integration with driven equipment while offering superior durability and protection in harsh or wet environments.
● 80B14 input flange interface – enables direct mounting of standardized IEC motors for quick and flexible installation, reducing assembly time and improving compatibility with motorized systems.
● High gear efficiency of 94% – provides energy savings and contributes to maintaining optimal performance over long production cycles.
● 17.21:1 gear ratio across 3 precise stages – delivers controlled speed reduction and increased torque, suitable for conveyor systems, dosing units, packaging lines, and industrial automation.
● Gear input shaft Ø19 mm – supports secure transmission of input power, suitable for dynamic and continuous-duty operations.
● Compact gear size X73N – provides a space-saving solution without compromising power or durability, especially useful in constrained machinery layouts.
● Suitable for demanding sectors – designed for use in highly technical setups requiring both robustness and hygiene, such as marine propulsion systems, biopharma equipment, and high-cleanliness environments.
● SKU: Clean-Geartech X73N, bevel gear with stainless steel Ø40H7 hollow shaft, 17.21:1 ratio – includes all relevant industry specifications for straightforward integration into existing equipment platforms.
● Constructed from stainless steel AISI 316L – ensures excellent resistance to corrosion, making it ideal for hygienic and washdown applications in food and beverage, pharmaceutical, and chemical processing environments.
● Hollow output shaft Ø40H7 in SS – provides easy integration with driven equipment while offering superior durability and protection in harsh or wet environments.
● 80B14 input flange interface – enables direct mounting of standardized IEC motors for quick and flexible installation, reducing assembly time and improving compatibility with motorized systems.
● High gear efficiency of 94% – provides energy savings and contributes to maintaining optimal performance over long production cycles.
● 17.21:1 gear ratio across 3 precise stages – delivers controlled speed reduction and increased torque, suitable for conveyor systems, dosing units, packaging lines, and industrial automation.
● Gear input shaft Ø19 mm – supports secure transmission of input power, suitable for dynamic and continuous-duty operations.
● Compact gear size X73N – provides a space-saving solution without compromising power or durability, especially useful in constrained machinery layouts.
● Suitable for demanding sectors – designed for use in highly technical setups requiring both robustness and hygiene, such as marine propulsion systems, biopharma equipment, and high-cleanliness environments.
● SKU: Clean-Geartech X73N, bevel gear with stainless steel Ø40H7 hollow shaft, 17.21:1 ratio – includes all relevant industry specifications for straightforward integration into existing equipment platforms.
