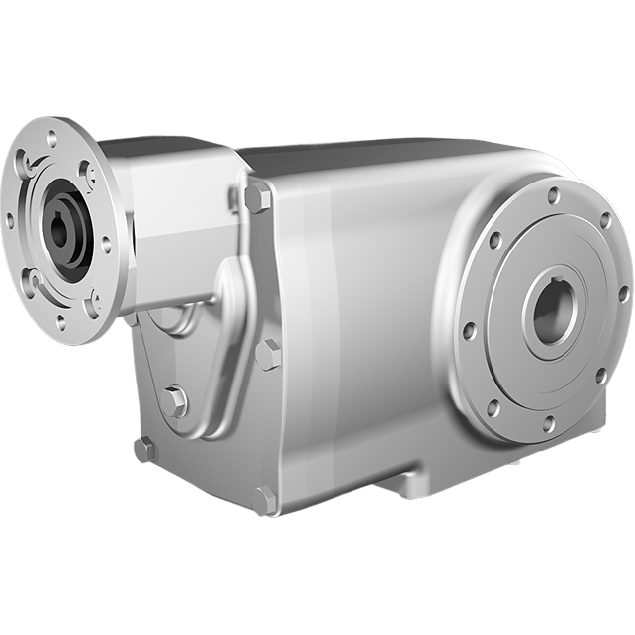

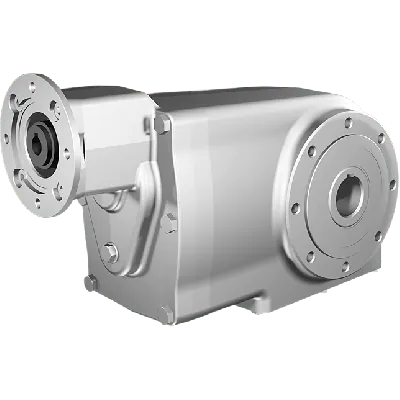

Clean-Geartech is a leading manufacturer recognized for designing high-performance gear units tailored for demanding industrial environments. With a focus on hygiene, durability, and precision, their gearboxes are especially suited for applications in the food processing, pharmaceutical, chemical, and marine industries. All gear units are built in accordance with the highest quality standards using corrosion-resistant materials for longevity and operational safety.Below are the key features, benefits, and application areas of the Clean-Geartech X63N stainless steel bevel gear unit:
Constructed entirely from stainless steel AISI 316L – offers exceptional corrosion resistance, ideal for aggressive and washdown environments within the food, pharmaceutical and chemical industries.

Three-stage gear system – ensures high torque transmission and optimal speed reduction even at low input speeds, suitable for precise dosing, mixing, and conveying applications.

High gear efficiency (94%) – minimizes energy loss and heat generation, supporting continuous operation in energy-demanding environments like automation systems and packing machines.

High reduction ratio of 56.76:1 – enables use in low-speed, high-torque applications such as agitators, conveyors, and processing drums.

Ø35 mm H7 hollow output shaft in stainless steel – allows for direct and backlash-free mounting on driven shafts, typically used in hygienic conveyor and rotary equipment.

Input interface 71B14 – compatible with a wide range of IEC standard motors, offering flexible integration into existing or bespoke industrial drive systems.

Compact design with gear size X63N – space-saving installation ideal for machinery with limited mounting space while maintaining durable performance.

BCD 85 input / BCD 130 output – ensures stable installation and reliable torque transfer in mechanically intensive applications like mixers and pump systems.

14 mm input shaft – standard dimension supporting compatibility with a variety of motor shaft couplings and adaptor solutions.
Engineered for reliability and performance, the X63N bevel gear unit from Clean-Geartech is the optimal solution for engineers and technical specialists seeking robust and hygienic power transmission solutions in demanding industrial settings.
