Beschreibung

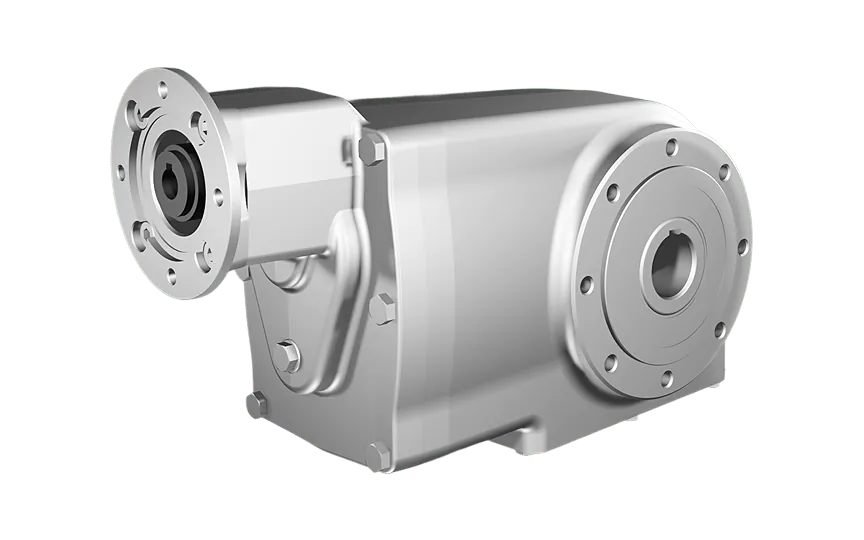

The Clean-Geartech X63N is a high-precision, hygienic bevel gear reducer crafted entirely from AISI 316L stainless steel, specifically engineered for demanding industrial applications requiring corrosion resistance, compact design, and exceptional efficiency. Tailored for sectors such as food and beverage, pharmaceutical, chemical, and marine industries, this gear unit provides optimal reliability even in aggressive or washdown environments.Brand Overview – Clean-Geartech
Clean-Geartech is a specialized European manufacturer focused on stainless steel gear solutions for hygienic and extreme-duty environments. Known for durability, innovation, and seamless integration into critical industrial systems, Clean-Geartech components are widely trusted in applications where traditional materials fail.Key Features & Application Benefits:
•
Stainless Steel AISI 316L Gear Housing – Delivers maximum resistance against corrosion, making it ideal for washdown zones and aggressive chemical exposure.•
Ø35H7 Stainless Steel Hollow Shaft – Enables easy, backlash-free torque transmission with compatibility to high-tolerance keyed shafting in hygienic or marine-grade systems.•
Compact Gearbox Size X63N – Fits into space-constrained mechanical designs without compromising torque requirements.•
High Reduction Ratio of 178.96:1 – Ensures slow, controlled, and powerful output suitable for conveyors, mixers, and precision dosing equipment.•
Motor Interface 71B14 – Simplifies integration with standard IEC flange motors, reducing assembly time and cost.•
3-Stage Gear Reduction – Improves torque multiplication and provides extended mechanical reliability under continuous loads.•
Efficiency Level at 94% – Minimizes energy consumption and heat generation, optimizing performance in continuous operation scenarios.•
Input Shaft Ø14 mm – Ready for direct coupling to motor shafts, ensuring minimal vibration and radial load.Application Use Cases:
•
Ideal for hygienic conveyor lines in food production (e.g., meat processing, dairy filling).•
Used in cleanroom pharmaceutical batching and tablet coating systems.•
Excellent choice for corrosion-intensive environments, including chemical washdown areas.•
Reliable in marine applications demanding high sealing, rust protection, and compact installation.
Clean-Geartech is a specialized European manufacturer focused on stainless steel gear solutions for hygienic and extreme-duty environments. Known for durability, innovation, and seamless integration into critical industrial systems, Clean-Geartech components are widely trusted in applications where traditional materials fail.Key Features & Application Benefits:
•
Stainless Steel AISI 316L Gear Housing – Delivers maximum resistance against corrosion, making it ideal for washdown zones and aggressive chemical exposure.•
Ø35H7 Stainless Steel Hollow Shaft – Enables easy, backlash-free torque transmission with compatibility to high-tolerance keyed shafting in hygienic or marine-grade systems.•
Compact Gearbox Size X63N – Fits into space-constrained mechanical designs without compromising torque requirements.•
High Reduction Ratio of 178.96:1 – Ensures slow, controlled, and powerful output suitable for conveyors, mixers, and precision dosing equipment.•
Motor Interface 71B14 – Simplifies integration with standard IEC flange motors, reducing assembly time and cost.•
3-Stage Gear Reduction – Improves torque multiplication and provides extended mechanical reliability under continuous loads.•
Efficiency Level at 94% – Minimizes energy consumption and heat generation, optimizing performance in continuous operation scenarios.•
Input Shaft Ø14 mm – Ready for direct coupling to motor shafts, ensuring minimal vibration and radial load.Application Use Cases:
•
Ideal for hygienic conveyor lines in food production (e.g., meat processing, dairy filling).•
Used in cleanroom pharmaceutical batching and tablet coating systems.•
Excellent choice for corrosion-intensive environments, including chemical washdown areas.•
Reliable in marine applications demanding high sealing, rust protection, and compact installation.
Spezifikationen
IP-Schutz
IP66
Herkunftsland
ITA
HS-Code
84834021.000000
ERP Nettogewicht (Kg)
31.000000
Material
Edelstahl AISI 316L
Übersetzung
178,96:1
BCD eingang
85
BCD abgang
130
Getriebe Stufen
3
Wirkungsgrad (%)
94
Getrieb Abgangswelle (mm)
35
Getriebe Eingangswelle (mm)
14
Getriebe Motor Schnittstelle
71B14
Getriebe grösse
X63N
Abgangs geschwindigkeit beim 1400 U/min
7.8
Max abgangs Drehmoment (Nm)
410
Max kW eingang beim 1400 U/min
0.36
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Foreign trade
HS-Code
84834021
ERP Nettogewicht (Kg)
31.00
Herkunftsland
ITA
