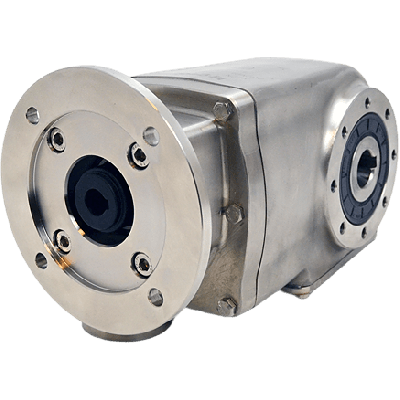

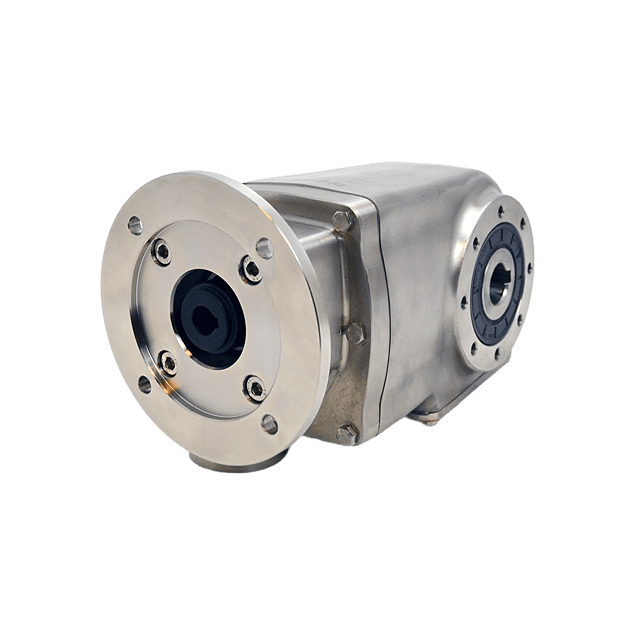

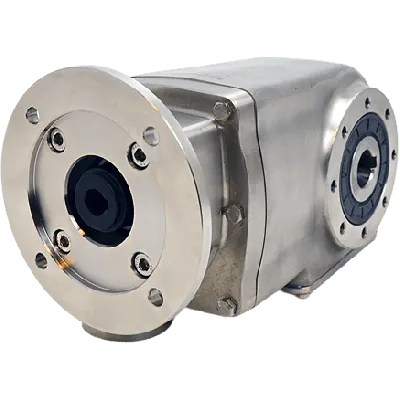

Clean-Geartech X62N, Kegelstirnradgetriebe Ø35H7 Hohlwelle, 9,26:1, Eingang 90B14, V5, Edelstahl
HV82PX62NI02-EFBN-TV5-E-OFÜbersetzungsverhältnis: 9,26:1 Wirkungsgrad: 96 % Eingangsdrehmoment (BCD): 115 Ausgangsdrehmoment (BCD): 130 Getriebeeingangswelle: Ø24 mm Getriebeausgangswelle (Hohlwelle): Ø35H7 Material des Getriebes: Edelstahl AISI 316L Getriebemotoranschluss: 90B14 Getriebegröße: X62N Getriebestufen: 2Dieses Getriebe ist besonders für den Einsatz in korrosiven Umgebungen ausgelegt dank der vollständigen Ausführung in Edelstahl.
Spezifikationen
Produktbeschreibung
Downloads
3.179,00 €
Auf Lager
Voraussichtlicher Versand:
Wird geladen …
Zubehör
Weitere Informationen
IP-Schutz
IP66
HS-Code
84834021.000000
Material
Edelstahl AISI 316L
Übersetzung
9,26:1
BCD eingang
115
BCD abgang
130
Getriebe Stufen
2
Wirkungsgrad (%)
96
Getrieb Abgangswelle (mm)
35
Getriebe Eingangswelle (mm)
24
Getriebe Motor Schnittstelle
90B14
Getriebe grösse
X62N
Abgangs geschwindigkeit beim 1400 U/min
151
Max abgangs Drehmoment (Nm)
270
Max kW eingang beim 1400 U/min
4.5
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Beschreibung
Clean-Geartech is a premium manufacturer specializing in hygienic, corrosion-resistant gear solutions designed for demanding applications in food processing, chemical, pharmaceutical, and marine industries. With a strong emphasis on durability, reliability, and high performance, Clean-Geartech is trusted by industrial engineers and technical specialists worldwide.Key Features and Applications:Stainless Steel AISI 316L Gear Housing – Provides exceptional corrosion resistance in aggressive washdown or chemical environments, ideal for CIP/SIP processes in food, beverage, and pharmaceutical applications.SS Ø35H7 Hollow Output Shaft – Allows direct integration with driven equipment such as conveyors, mixers, or dosing systems, reducing alignment complexity and installation time.9.26:1 Gear Ratio – Ensures efficient torque increase and speed reduction, supporting high-load, low-speed applications in processing and handling systems.Efficiency Rate of 96% – Delivers optimal power transmission with minimal energy loss, reducing operational costs and improving overall system energy efficiency.Input Shaft Ø24 mm & Motor Interface 90B14 – Compatible with IEC standard motors, simplifying motor integration in existing drive systems for modular adaptability.Two-Stage Bevel Gear Design – Offers compact configuration with reliable power transmission and smooth load distribution, suitable for space-constrained machinery layouts.BCD Input/Output 115/130 mm – Ensures structural compatibility with a wide range of industrial assemblies, reducing engineering complexity for new installations.Gear Size X62N – Medium-duty performance class suitable for factory automation, robotics, heavy conveyance, or sanitation-intensive environments.Typical Applications – Hygienic automation systems, agitators, filling and packaging lines, offshore hydraulic systems, pharmaceutical mixers, and marine pumps, all requiring stainless-steel and maintenance-friendly drives.
