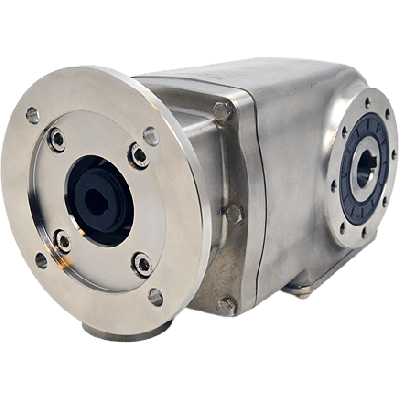

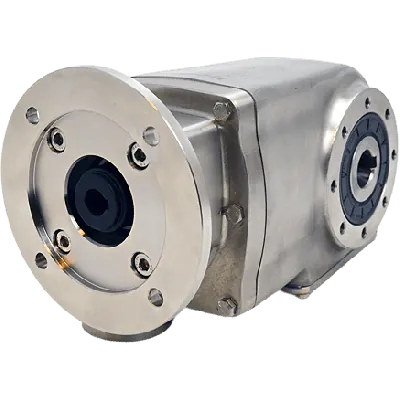

Clean-Geartech is a recognized manufacturer of high-performance stainless-steel gearboxes, engineered for demanding industrial applications where hygiene, durability, and corrosion resistance are critical. Their X62N series represents the pinnacle of reliability and efficiency in compact, precision-drive technology used across food processing, pharmaceutical production, chemical engineering, and marine environments.Clean-Geartech gear units are constructed from AISI 316L stainless steel and are tailored to excel in environments with high hygiene standards or aggressive cleaning protocols, offering a long service life with minimal maintenance.
• High-grade AISI 316L stainless steel housing ensures exceptional corrosion resistance, making the gearbox suitable for hygienic and chemically aggressive environments.

• Compact X62N size with a 2-stage bevel gear configuration allows for high torque transmission while retaining a minimal installation footprint in system designs with space constraints.

• Efficiency rating of 96% optimizes power usage and reduces energy loss, enhancing operational cost-effectiveness in continuous-duty scenarios.

• The precision Ø35 mm H7 hollow output shaft in stainless steel (SS hollow shaft) supports direct drive configurations, reducing the need for additional coupling components and minimizing mechanical backlash.

• Gear input shaft diameter of 19 mm and IEC-compatible motor interface (80B14 flange) simplifies integration with standard motor types and sizing across various industries.

• The 74.81:1 gear ratio provides high torque multiplication suited for applications such as conveyor systems, mixers, and lifting equipment operating at lower speeds but with high mechanical loads.

• Ideal for industries including food processing, pharmaceuticals, marine systems, and chemical processing where adherence to hygiene and corrosion resistance standards such as EHEDG or FDA/GMP is essential.

• Precision-machined components and robust design ensure drivetrain stability, smooth operation, and extended service life under variable loading conditions.
This Clean-Geartech X62N gearbox is engineered to address technical specifications in the most demanding applications while promoting ease of integration and long-term reliability.
