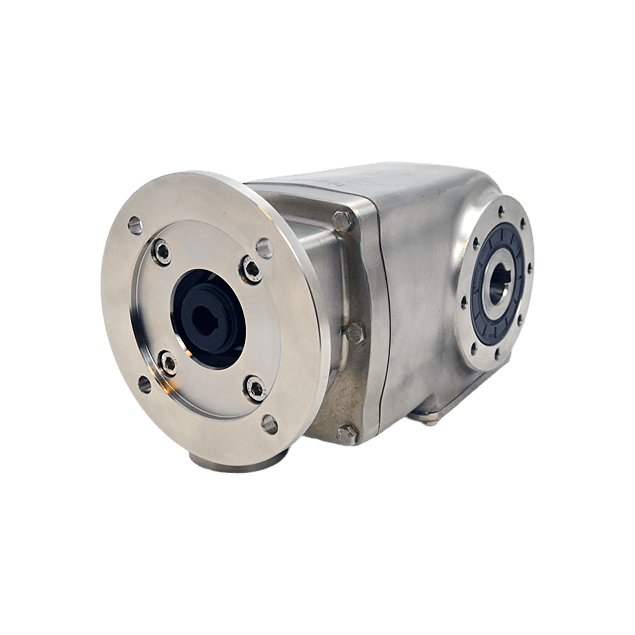

Clean-Geartech X62N, Kegelstirnradgetriebe Ø35H7 Hohlwelle, 24,45:1, Eingang 80B14, V5, Edelstahl
HV82PX62NI08-EFBN-RV5-D-OFÜbersetzungsverhältnis: 24,45:1 Getriebeeingang: B14-Flansch 80 mm Getriebeeingangswelle: 19 mm Getriebeausgangswelle: Ø35H7 mm (Hohlwelle) Getriebegröße: X62N Getriebestufen: 2 Effizienz: 96 % BCD Eingang: 100 mm BCD Ausgang: 130 mm Getriebematerial: Edelstahl AISI 316LDas Getriebe eignet sich für anspruchsvolle Umgebungen in der Lebensmittel-, Pharma- oder chemischen Industrie.
Spezifikationen
Produktbeschreibung
Downloads
3.176,00 €
Auf Lager
Voraussichtlicher Versand:
Wird geladen …
Zubehör
Weitere Informationen
IP-Schutz
IP66
HS-Code
84834021.000000
Material
Edelstahl AISI 316L
Übersetzung
24,45:1
BCD eingang
100
BCD abgang
130
Getriebe Stufen
2
Wirkungsgrad (%)
96
Getrieb Abgangswelle (mm)
35
Getriebe Eingangswelle (mm)
19
Getriebe Motor Schnittstelle
80B14
Getriebe grösse
X62N
Abgangs geschwindigkeit beim 1400 U/min
57
Max abgangs Drehmoment (Nm)
410
Max kW eingang beim 1400 U/min
2.6
Montage position
V5
Öl
Mobil SHC Cibus 320 NSF H1
Produzent
Clean-Geartech
Beschreibung
Manufacturer Overview:
Clean-Geartech is an industry-leading manufacturer of precision-engineered drive solutions, specializing in corrosion-resistant gearboxes built for demanding industrial environments. With a strong focus on hygienic design, durability, and efficiency, Clean-Geartech's products are widely used in the food processing, pharmaceutical, marine, and chemical industries.Key Features and Application Benefits:
➤ Manufactured from AISI 316L stainless steel, the gearbox offers superior corrosion resistance, making it ideal for use in aggressive, washdown, or sterile environments such as food, beverage, chemical, and marine applications.
➤ High efficiency of 96% ensures optimal energy transmission, reducing operational costs and improving system performance in energy-critical applications.
➤ The Ø35H7 hollow output shaft in stainless steel provides strong torque transfer while enabling easy integration with drive shafts and couplings in both horizontal and vertical installations.
➤ The 24.45:1 gear ratio delivers precise speed reduction and torque amplification, suitable for heavy-duty applications such as mixers, conveyors, agitators, and packaging machinery.
➤ Input shaft dimension of Ø19 mm and standard B14 flange interface (size 80) ensure compatibility with a wide range of IEC motors, reducing implementation complexity.
➤ Two-stage spiral bevel gear design provides quiet, smooth, and reliable torque transmission crucial for high-duty cycles or process-critical equipment.
➤ Compact X62N housing simplifies integration in space-constrained systems while maintaining high mechanical strength under load.Industries of Application:
✓ Food and Beverage Processing – Cleanroom-compliant design for hygiene-sensitive machinery
✓ Chemical and Pharmaceutical – Excellent chemical resistance supports CIP cleaning and sterile processes
✓ Marine and Offshore – Corrosion resistance and robustness withstand salty/humid conditions
✓ General Industrial Automation – High performance and modularity suited for dynamic motion systems
Clean-Geartech is an industry-leading manufacturer of precision-engineered drive solutions, specializing in corrosion-resistant gearboxes built for demanding industrial environments. With a strong focus on hygienic design, durability, and efficiency, Clean-Geartech's products are widely used in the food processing, pharmaceutical, marine, and chemical industries.Key Features and Application Benefits:
➤ Manufactured from AISI 316L stainless steel, the gearbox offers superior corrosion resistance, making it ideal for use in aggressive, washdown, or sterile environments such as food, beverage, chemical, and marine applications.
➤ High efficiency of 96% ensures optimal energy transmission, reducing operational costs and improving system performance in energy-critical applications.
➤ The Ø35H7 hollow output shaft in stainless steel provides strong torque transfer while enabling easy integration with drive shafts and couplings in both horizontal and vertical installations.
➤ The 24.45:1 gear ratio delivers precise speed reduction and torque amplification, suitable for heavy-duty applications such as mixers, conveyors, agitators, and packaging machinery.
➤ Input shaft dimension of Ø19 mm and standard B14 flange interface (size 80) ensure compatibility with a wide range of IEC motors, reducing implementation complexity.
➤ Two-stage spiral bevel gear design provides quiet, smooth, and reliable torque transmission crucial for high-duty cycles or process-critical equipment.
➤ Compact X62N housing simplifies integration in space-constrained systems while maintaining high mechanical strength under load.Industries of Application:
✓ Food and Beverage Processing – Cleanroom-compliant design for hygiene-sensitive machinery
✓ Chemical and Pharmaceutical – Excellent chemical resistance supports CIP cleaning and sterile processes
✓ Marine and Offshore – Corrosion resistance and robustness withstand salty/humid conditions
✓ General Industrial Automation – High performance and modularity suited for dynamic motion systems
