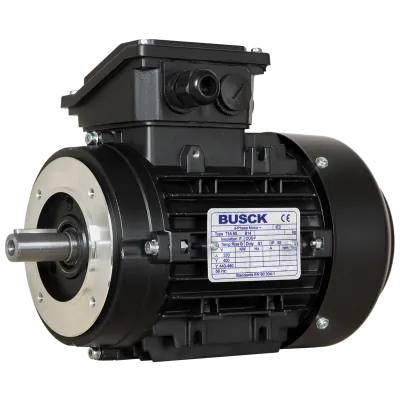

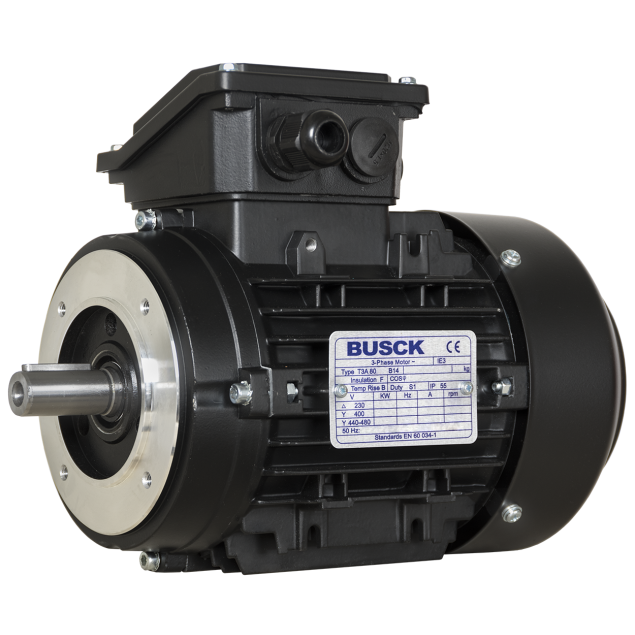

Busck Wechselstrommotor T3A80B-4A22 0.75kW 1430RPM 230/400V 50Hz ATEX 22, aluminium
T3A80B-4A22Der Wechselstrommotor von Busck mit ATEX-Zertifizierung ist ein robuster und flexibler Hochleistungsmotor, der für die Anforderungen anspruchsvoller Umgebungen entwickelt wurde.Mit seiner langlebigen Konstruktion und der ATEX 22-Zertifizierung gewährleistet dieser Motor einen sicheren und zuverlässigen Betrieb in gefährlichen Umgebungen.
Spezifikationen
Produktbeschreibung
Downloads
395,92 €
Auf Lager
Voraussichtlicher Versand: 24-10-2024
Weitere Informationen
IP-Schutz
IP 65
Produzent
Busck
Modell
T3A80B-4A22
Drehzahl (RPM)
1430
Nennleistung (kW)
0.75
Wirkungsgrad (% FL)
82.5
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
3.13/1.8
Nenndrehmoment (Nm)
4.97
Startstromverhältnis (IA/IN)
6.3
Montage
B14
IEC Norm
80
BCD
100
Pole
4
Zertifizierer
ATEX 2-22
Effizienzklasse
IE3
Wellendurchmesser (mm)
Ø19
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- ATEX 22-zertifiziert: Gewährleistet die Einhaltung der strengen Sicherheitsstandards von ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 und ATEX II 3G Ex nA IIC T4 Gc Zone 2.
- Schutzart IP65: Staubdicht und strahlwassergeschützt, wodurch sie für raue Industrieumgebungen geeignet ist.
- B14-Flansch: Ermöglicht eine einfache und sichere Montage und bietet eine stabile Verbindung zu verschiedenen Geräten.
- Hoher Wirkungsgrad: Verfügt über eine Energieeffizienzklasse IE3, wodurch der Energieverbrauch und die Betriebskosten gesenkt werden.
Technische Daten:
- Robuste Bauweise: Aus Aluminiumwerkstoffen gefertigt.
- Großer Temperaturbereich: Von -20 °C bis +40 °C.
