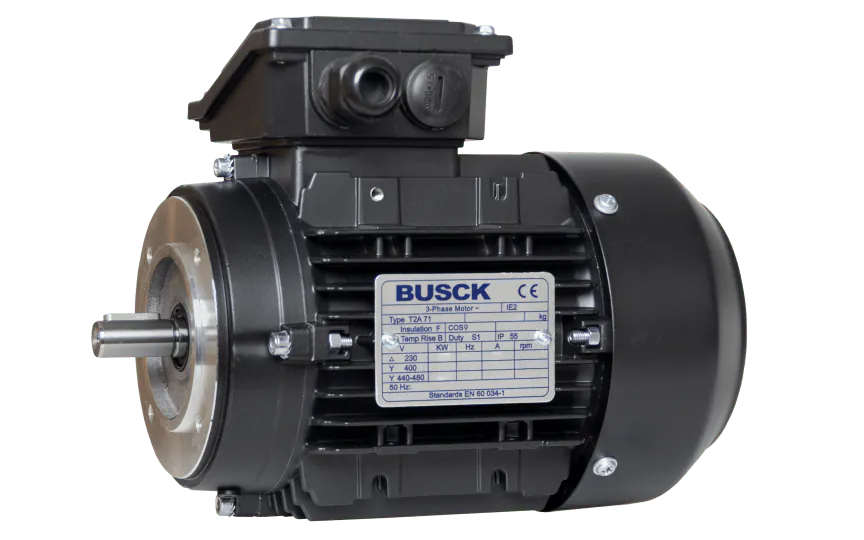

Busck Wechselstrommotor T2A71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, aluminium
T2A71B-4Der Wechselstrommotor von Busck ist ein robuster und flexibler Drehstromasynchronmotor, der speziell für die rauen Anforderungen verschiedener industrieller Anwendungen entwickelt wurde. Dank seiner Eigenschaften gewährleistet dieser Motor einen zuverlässigen und effizienten Betrieb in anspruchsvollen Umgebungen.
Spezifikationen
Produktbeschreibung
Downloads
267,97 €
Auf Lager
Voraussichtlicher Versand: 24-10-2024
Weitere Informationen
IP-Schutz
IP 55
Produzent
Busck
Modell
T2A71B-4
Drehzahl (RPM)
1400
Nennleistung (kW)
0.37
Wirkungsgrad (% FL)
72.7
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
1.76/1.01
Nenndrehmoment (Nm)
2.52
Startstromverhältnis (IA/IN)
4.7
Montage
B14
IEC Norm
71
BCD
85
Pole
4
Effizienzklasse
IE2
Wellendurchmesser (mm)
Ø14
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- Schutzart IP55: Der Motor ist staub- und wasserdicht und eignet sich daher für den Einsatz unter anspruchsvollen Bedingungen.
- Hohe Leistung: Mit einer Nennleistung von 0,37kW bietet dieser Motor Leistung und Wirkungsgrad.
- Drehzahlregelung: Der Motor kann mit 1400RPM betrieben werden und gewährleistet eine präzise Drehzahlregelung für verschiedene Anwendungen.
- Kompatibilität mit verschiedenen Spannungen: Unterstützt den Betrieb mit zwei Spannungen bei 230V oder 400V, wodurch er an verschiedene Stromsysteme angepasst werden kann.
- B14-Flanschmontage: Der B14-Flansch ermöglicht eine einfache und sichere Installation.
- IE2-Wirkungsgrad: Hohe Energieeffizienz, was zu einem geringeren Energieverbrauch und niedrigeren Betriebskosten führt.
Spezifikationen:
- Robuste Bauweise: Aus Aluminium gefertigt.
- Großer Temperaturbereich: -20 °C bis +40 °C.
