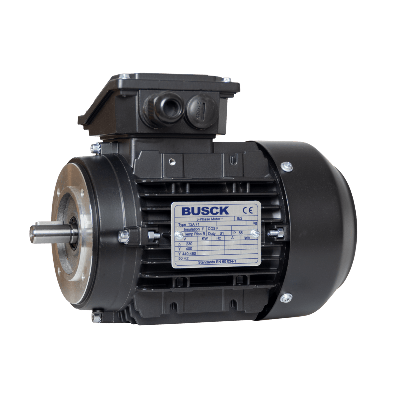

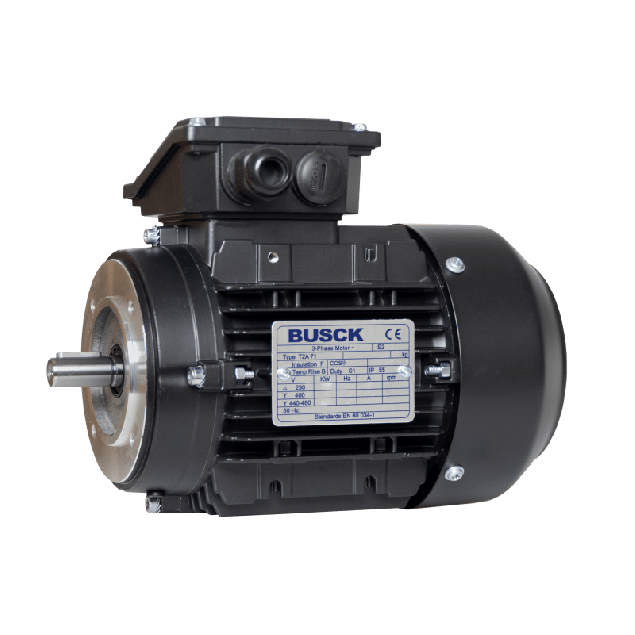

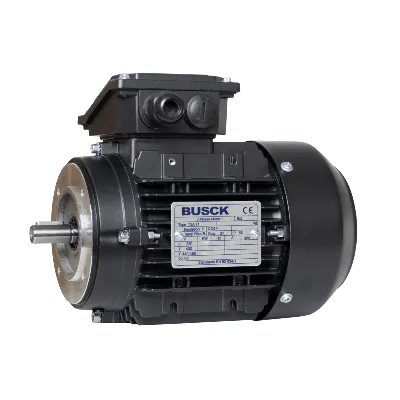

Busck Wechselstrommotor T2A71A-4A22 0,25kW 1400RPM 230/400V 50Hz ATEX 22, aluminium
T2A71A-4A22Der Wechselstrommotor von Busck mit ATEX-Zertifizierung ist ein robuster und flexibler Hochleistungsmotor, der für den Einsatz unter rauen und schwierigen Bedingungen entwickelt wurde. Mit seinen hervorragenden Eigenschaften und seiner robusten Konstruktion ist dieser Motor perfekt für eine Vielzahl von industriellen Anwendungen geeignet.
Spezifikationen
Produktbeschreibung
Downloads
225,72 €
Auf Lager
Voraussichtlicher Versand: 23-10-2024
Weitere Informationen
IP-Schutz
IP 65
Produzent
Busck
Modell
T2A71A-4A22
Drehzahl (RPM)
1400
Nennleistung (kW)
0.25
Wirkungsgrad (% FL)
69.6
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
1.34/0.77
Nenndrehmoment (Nm)
1.71
Startstromverhältnis (IA/IN)
4.1
Montage
B14
IEC Norm
71
BCD
85
Pole
4
Zertifizierer
ATEX 2-22
Effizienzklasse
IE2
Wellendurchmesser (mm)
Ø14
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- ATEX 22-Zertifizierung: Bestätigt, dass die Motoren den Sicherheitsstandards entsprechen, was sich in der Einhaltung der ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 und ATEX II 3G Ex nA IIC T4 Gc Zone 2 Zertifizierungen zeigt.
- Schutzart IP65: Staub- und wasserdicht, schützt den Motor vor äußeren Einflüssen und erhöht seine Zuverlässigkeit.
- Leistung von 0,25kW: Bietet ausreichend Leistung für den Antrieb verschiedener Industriemaschinen und -geräte.
- Drehzahl von 1400RPM: Gewährleistet eine effiziente Leistung und präzise Steuerung des Motorbetriebs.
- Spannung von 230/400V: Flexible Spannungsoptionen für die Kompatibilität mit verschiedenen Stromversorgungen.
- B14-Flanschbefestigung: Erleichtert die Installation und Integration in verschiedene Systeme.
- IE2 Wirkungsgrad: Hoher Wirkungsgrad, der die Betriebskosten senkt und die Umweltbelastung reduziert.
Technische Daten:
- Material: Aus Aluminium.
- Temperaturbereich: -20 °C bis +40 °C.
