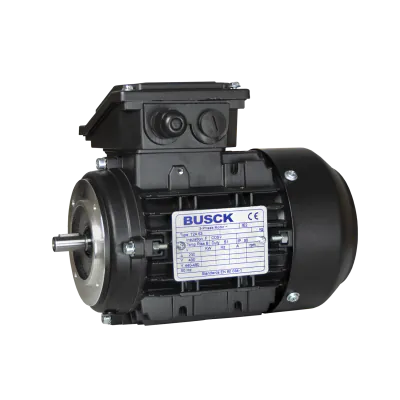

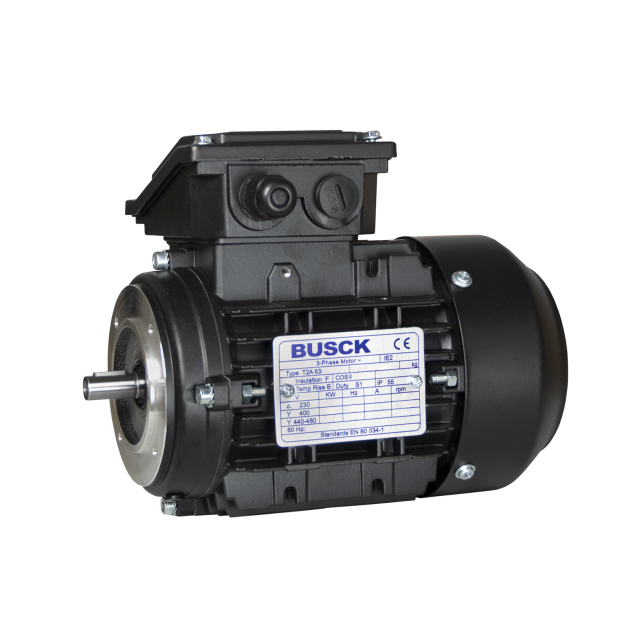

Busck Wechselstrommotor T2A63A-4, 0.12kW, 1395RPM, 230/400V, 50Hz, aluminium
T2A63A-4Der Wechselstrommotor von Busck ist ein robuster und flexibler Drehstromasynchronmotor, der für die anspruchsvollen Anforderungen der Industrie entwickelt wurde. Durch die Verwendung hochwertiger Materialien und Präzisionsmechanik gewährleistet dieser Elektromotor einen zuverlässigen und effizienten Betrieb auch unter rauen Bedingungen.
Spezifikationen
Produktbeschreibung
Downloads
181,06 €
auf Bestellung
Voraussichtlicher Versand: 25-10-2024
Weitere Informationen
IP-Schutz
IP 55
Produzent
Busck
Modell
T2A63A-4
Drehzahl (RPM)
1395
Nennleistung (kW)
0.12
Wirkungsgrad (% FL)
60.1
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
0.77/0.44
Nenndrehmoment (Nm)
0.82
Startstromverhältnis (IA/IN)
3.5
Montage
B14
IEC Norm
63
BCD
75
Pole
4
Effizienzklasse
IE2
Wellendurchmesser (mm)
Ø11
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- Schutzart IP55: Der Motor ist staub- und wasserdicht und eignet sich daher sowohl für Innen- als auch für Außenanwendungen.
- Hohe Leistung: Mit einer Leistung von 0,12kW liefert dieser Motor eine konstante und starke Leistung.
- Optimale Geschwindigkeit: Mit einer Drehzahl von 1395RPM gewährleistet er einen reibungslosen und kontrollierten Betrieb für verschiedene Anwendungen.
- Flexibilität bei der Spannung: Der Motor kann mit 230/400V betrieben werden und bietet somit Flexibilität bei den Anforderungen an die Stromversorgung.
- Montage mit B14-Flansch: Der Motor ist mit einem B14-Flansch ausgestattet, der eine einfache und sichere Installation ermöglicht.
- Hoher Wirkungsgrad: Mit einem Wirkungsgrad der Klasse IE2 minimiert der Motor den Energieverbrauch und senkt die Betriebskosten.
Spezifikationen:
- Langlebige Konstruktion: Gefertigt aus Aluminiumwerkstoffen.
- Großer Temperaturbereich: -20°C bis +40°C.
