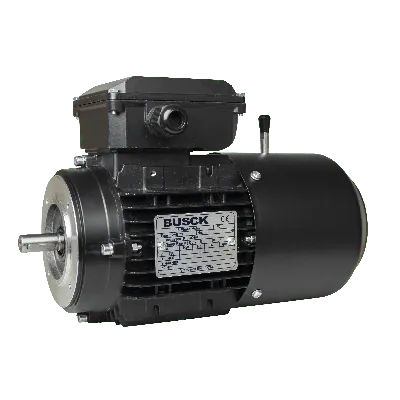

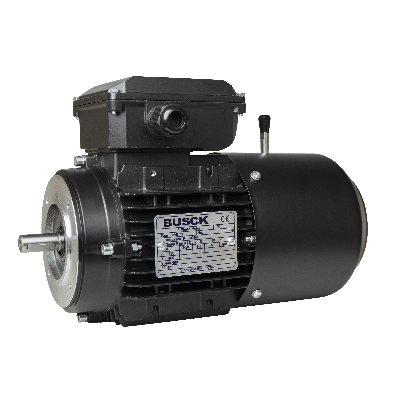

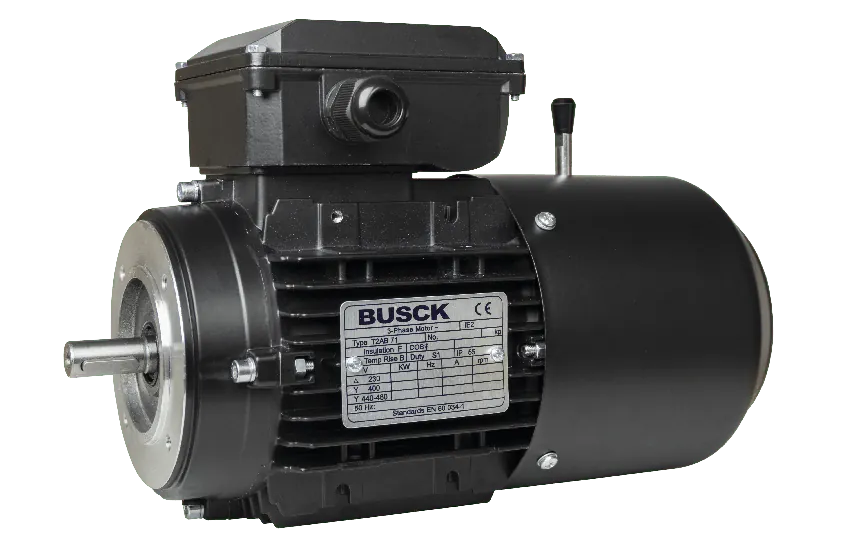

Busck Wechestrommotor mit Bremse T2AB71B-6, 0.25kW, 910RPM, 230/400V, 50Hz, Aluminium
T2AB71B-6Der Wechselstrommotor mit Bremse von Busck ist eine zuverlässige und sichere Lösung für verschiedene Anwendungen und bietet eine schnelle Bremszeit und hohe Leistung. Mit seiner robusten Bauweise und seinen fortschrittlichen Funktionen ist dieser Motor für die Anforderungen der modernen Industrie ausgelegt.
Spezifikationen
Produktbeschreibung
Downloads
721,83 €
Auf Lager
Voraussichtlicher Versand: 23-10-2024
Weitere Informationen
IP-Schutz
IP 55
Produzent
Busck
Modell
T2AB71B-6
Drehzahl (RPM)
910
Nennleistung (kW)
0.25
Wirkungsgrad (% FL)
61.6
Spannungsanschluss (Δ/Y)
230/400
Nennstrom bei Spannung
1.55/0.89
Nenndrehmoment (Nm)
2.1
Startstromverhältnis (IA/IN)
3.3
Montage
B14
IEC Norm
71
BCD
85
Pole
6
Effizienzklasse
IE2
Wellendurchmesser (mm)
Ø14
Kühlung
TEFC
Beschreibung
Hauptmerkmale:
- Schutzart IP55: Mit der Schutzart IP55 ist der Motor gegen das Eindringen von Staub und Wasser geschützt und eignet sich somit für den Einsatz im Innen- und Außenbereich.
- Hohe Abtriebsleistung: Der Motor verfügt über eine Leistung von 0,25kW und bietet ausreichend Leistung für eine Vielzahl von industriellen Aufgaben.
- Optimale Drehzahl: Mit einer Drehzahl von 910RPM bietet der Motor eine effiziente Leistung und präzise Steuerung.
- Vielseitige Spannung: Der Motor unterstützt einen Spannungsbereich von 230/400V und ist somit für verschiedene Stromversorgungskonfigurationen geeignet.
- B14-Flanschmontage: Der B14-Flansch ermöglicht eine einfache und sichere Montage. Bremsmoment 6 Nm: Das Bremsmoment des Motors von 6 Nm ermöglicht ein schnelles und zuverlässiges Bremsen und erhöht so die Sicherheit während des Betriebs.
- Hoher Wirkungsgrad: Der Motor entspricht der Energieeffizienzklasse IE2 und erfüllt damit hohe Energieeffizienzstandards, was zu einem geringeren Energieverbrauch und niedrigeren Betriebskosten führt.
Technische Daten:
- Aluminiumbauweise: Der Motor verfügt über eine langlebige Aluminiumkonstruktion.
- Großer Temperaturbereich: -20 °C bis +40 °C.
