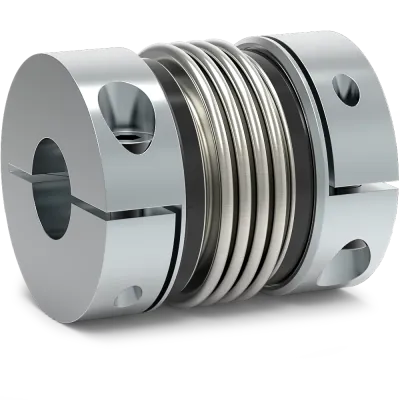

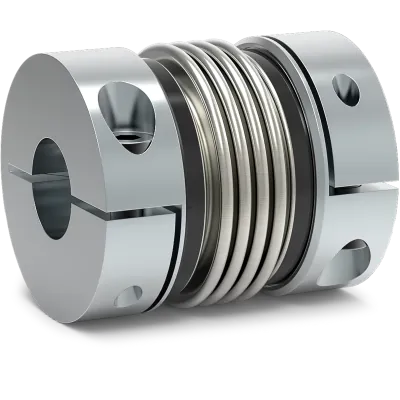

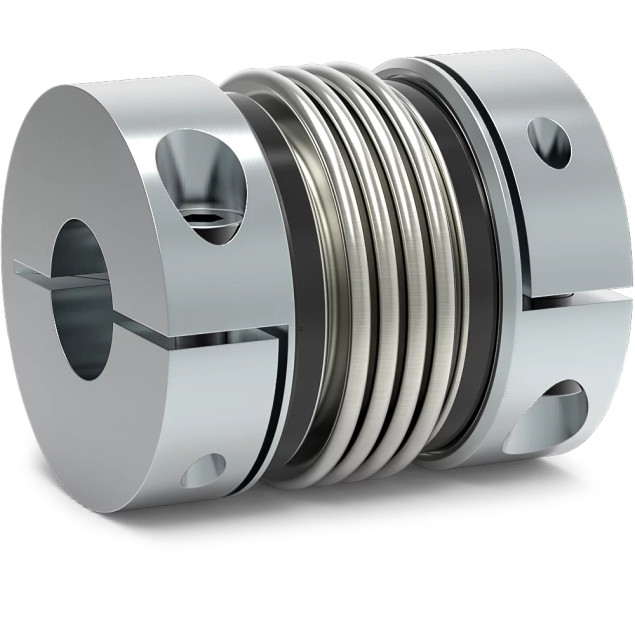

BKL 10 16 18 Metallbalgkupplung, Edelstahl und Aluminium
HV3020011100Die Metallbalgkupplung BKL der Größe 10 mit Klemmnabe ist eine vielseitige und zuverlässige Kupplung, die auf die Anforderungen verschiedener Anwendungen zugeschnitten ist. Mit ihren Eigenschaften und ihrer langlebigen Konstruktion sorgt sie für eine nahtlose Kraftübertragung bei gleichzeitiger Präzision und Effizienz.
Spezifikationen
Produktbeschreibung
Downloads
79,40 €
auf Bestellung
Voraussichtlicher Versand: 01-11-2024
Weitere Informationen
Material
Edelstahl und Aluminium
Länge (mm)
44
Maximales Moment (Nm)
10
Kupplungsgröße
10
Außendurchmesser (mm)
Ø40
Bohrung D1
Ø16mm H7
Bohrung D2
Ø18mm H7
Beschreibung
Hauptmerkmale:
- Einfache Montage: Die Kupplung ist für eine einfache Montage ausgelegt, was Zeit und Mühe beim Zusammenbau spart.
- Geringes Gewicht: Durch die leichte Konstruktion wird das Gesamtgewicht des Systems reduziert, was die Leistung und den Wirkungsgrad erhöht.
- Geringes Trägheitsmoment: Das geringe Trägheitsmoment sorgt für eine schnelle und reaktionsschnelle Leistungsübertragung und ermöglicht eine schnelle Beschleunigung und Verzögerung.
Spezifikationen:
- Temperaturbereich: Die BKL Kupplung kann in einem Temperaturbereich von -30 °C bis +100 °C betrieben werden und ist damit für eine Vielzahl von Umgebungen und Anwendungen geeignet.
Konstruktion und Materialien
- Die Kupplung BKL zeichnet sich durch eine robuste Konstruktion mit präzisionsgefertigten Klemmnaben und einem flexiblen Faltenbalg aus.
- Der Faltenbalg aus Edelstahl bietet Flexibilität und ermöglicht winkelige, axiale und parallele Verlagerungen bei gleichzeitiger effizienter Drehmomentübertragung.
- Die Stahlnaben sorgen für Langlebigkeit und eine sichere Verbindung mit den zugehörigen Wellen.
Spezifikationen der Bohrungen:
- Bohrung D1: Ø16mm H7
- Bohrung D2: Ø18mm H7
