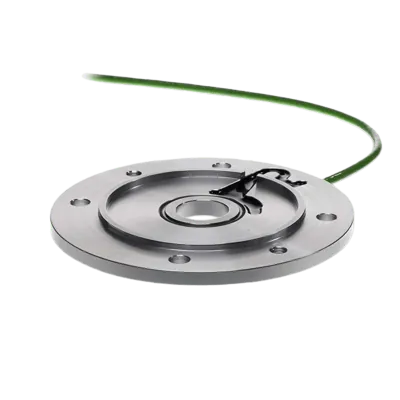

BEGE Flanschdrehgeber MN-140-24-00259, 25 impulse, 2m Kabel, Aluminium
HV500260Der Flanschdrehgeber MIG NOVA+ von BEGE ist mit einem 140 mm Flansch für Präzision und Zuverlässigkeit in anspruchsvollen Umgebungen ausgelegt. Dieser kompakte und langlebige Drehgeber ist stoßfest, wasser- und staubbeständig und damit die ideale Wahl für Anwendungen, bei denen Hygiene eine wichtige Rolle spielt.
Spezifikationen
Produktbeschreibung
Downloads
292,78 €
auf Bestellung
Voraussichtlicher Versand: 12-11-2024
Weitere Informationen
IP-Schutz
IP 55
Impulse
25
Außendurchmesser (mm)
Ø140
Flanschdicke (mm)
9
Material
Aluminium
Kabellänge (m)
2
Wellendurchmesser (mm)
Ø24
BCD norm
115
Beschreibung
Hauptmerkmale:
- Magnetischer Drehgeber für genaue und zuverlässige Signalmessung.
- Signalqualität und hochwertige Verarbeitung für präzise Leistung.
- Kompatibel mit IEC-genormten Elektromotoren und somit vielseitige Integrationsmöglichkeiten.
- Stabile berührungslose Signalmessung für konsistente und zuverlässige Datenausgabe.
- Die Standard-Schutzart IP55 kann mit einem geeigneten Dichtmittel zwischen Motor und Maschinenflansch auf IP67 erhöht werden.
- Bei Verwendung dieses Zwischenflansches ist keine verlängerte Lüfterhaube erforderlich.
Spezifikationen:
- Für Motorgröße: B14.
- Temperaturbereich: -30°C bis +80°C.
Werkstoffe:
- Flansch: Hergestellt aus langlebigem Aluminium.
- Nabe: Hergestellt aus Edelstahl.
Downloads
Installation Manual: BEGE MIG Encoders
Installation Manual: BEGE MIG Encoders.pdf
Detei herunterladen
