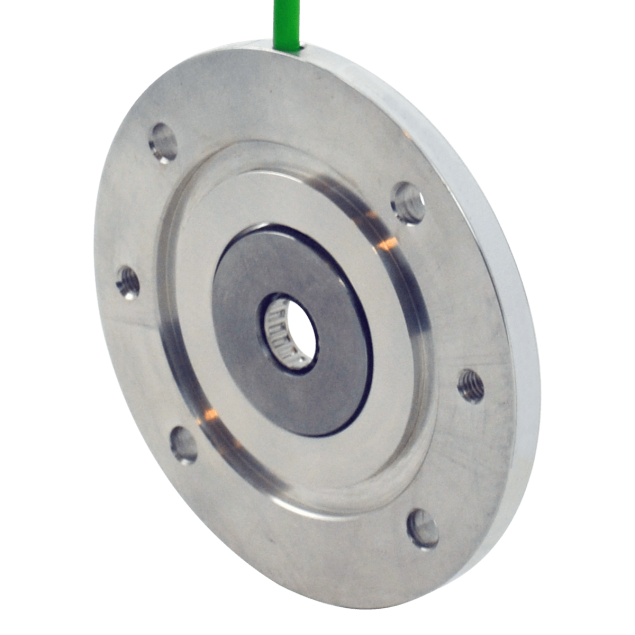

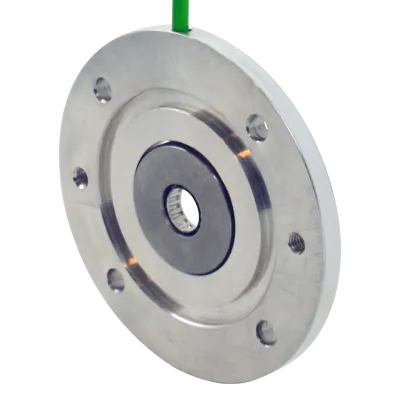

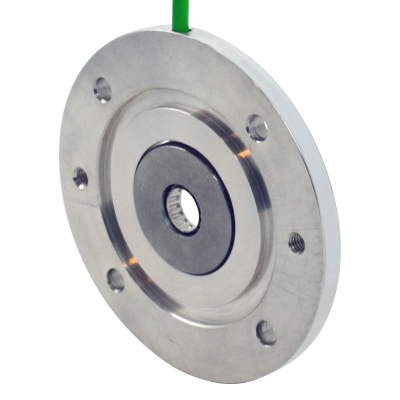

BEGE flange encoder MIG Nova+ MN-350-48-0001-12, 1 pulses, 20m cable, aluminium
HV52A35048000112020The BEGE flange encoder MIG Nova+ MN-350-48-0001-12, 1 pulse, 20m cable, aluminium is an incremental encoder designed for applications requiring higher resolution and enhanced signal stability, supporting precise control in automated systems. Key attributes include: Outside flange diameter: 350mm, Flange BCD: 300mm, Shaft diameter: 48mm, Motor IEC norm: 180B5, Flange thickness: 12mm, Input voltage: 5-24 VDC, Output signals: A90°B / A'90°B' HTL/TTL, Pulses per revolution: 1 per channel, Maximum cable length: 20 meters, Material: Aluminium, Protection class: IP55/IP67. Suitable for demanding industrial environments where reliable positioning and feedback are required.
Spezifikationen
Produktbeschreibung
617,00 €
auf Bestellung
Voraussichtlicher Versand:
Wird geladen …
Estimated Shipping:
Geschätzter Versand und Steuern
Loading shipping methods...
Versandarten
No shipping methods available for this destination.
Weitere Informationen
IP-Schutz
IP55 / IP67
Außendurchmesser (mm)
350
Flanschdicke (mm)
12
Drehgeber Material
Aluminium
Kabellänge (m)
20
Wellendurchmesser (mm)
48
IEC norm
180B5
BCD norm
300
HS-Code
90292038.000000
Drehgeber versorgung
5-24VDC
Drehgeber signale
A90°B / A'90°B' HTL/TTL
Impulse
1
Beschreibung
BEGE, a well-established Dutch manufacturer, is renowned for its innovative and reliable industrial drive solutions. With a strong commitment to quality and precision, BEGE specializes in high-performance encoders designed for demanding automation and motion control applications across various industries.
The MIG Nova+ is an incremental encoder engineered for superior resolution and enhanced signal stability, ideal for precise speed control and accuracy in advanced automated systems.
High Signal Resolution: The MIG Nova+ offers a significantly finer resolution than standard encoders, enabling precise feedback for accurate speed and position regulation in automated machinery.
Enhanced Signal Stability: With improved electronics, this encoder provides highly stable and reliable output signals, minimizing errors and ensuring consistent system performance even in challenging environments.
Robust Aluminium Casing: The sturdy aluminium housing provides excellent mechanical protection and durability, making the encoder suitable for industrial settings where vibration and mechanical stress are common.
IP55/IP67 Protection: Dual IP classification ensures the encoder is dust-tight and resistant to water ingress, supporting reliable operation both indoors and outdoors.
Long Cable Length (20m): Facilitates flexible installation and integration across large installations or complex machines, reducing the need for extension cords and connectors.
Custom Compatibility: Specifically designed to fit IEC 180B5 motors with a Ø350mm flange and Ø48mm shaft, making it easy to retrofit or integrate into existing motor setups.
Versatile Outputs: Supports HTL/TTL output and A90°B / A'90°B' channels, ensuring versatility for a wide range of automation and control systems.
Key Applications: Ideal for conveyor systems, robotic arms, packaging lines, and precise motion monitoring in industrial automation, where stable and exact speed regulation is critical.
Compared to the MIG Basic (a standard incremental encoder for basic speed feedback) and MIG AST (an absolute encoder for retaining position after power loss and advanced positioning tasks), the MIG Nova+ is the optimal solution when high-resolution and stable signals are required for precise motor and machine control.
The MIG Nova+ is an incremental encoder engineered for superior resolution and enhanced signal stability, ideal for precise speed control and accuracy in advanced automated systems.
High Signal Resolution: The MIG Nova+ offers a significantly finer resolution than standard encoders, enabling precise feedback for accurate speed and position regulation in automated machinery.
Enhanced Signal Stability: With improved electronics, this encoder provides highly stable and reliable output signals, minimizing errors and ensuring consistent system performance even in challenging environments.
Robust Aluminium Casing: The sturdy aluminium housing provides excellent mechanical protection and durability, making the encoder suitable for industrial settings where vibration and mechanical stress are common.
IP55/IP67 Protection: Dual IP classification ensures the encoder is dust-tight and resistant to water ingress, supporting reliable operation both indoors and outdoors.
Long Cable Length (20m): Facilitates flexible installation and integration across large installations or complex machines, reducing the need for extension cords and connectors.
Custom Compatibility: Specifically designed to fit IEC 180B5 motors with a Ø350mm flange and Ø48mm shaft, making it easy to retrofit or integrate into existing motor setups.
Versatile Outputs: Supports HTL/TTL output and A90°B / A'90°B' channels, ensuring versatility for a wide range of automation and control systems.
Key Applications: Ideal for conveyor systems, robotic arms, packaging lines, and precise motion monitoring in industrial automation, where stable and exact speed regulation is critical.
Compared to the MIG Basic (a standard incremental encoder for basic speed feedback) and MIG AST (an absolute encoder for retaining position after power loss and advanced positioning tasks), the MIG Nova+ is the optimal solution when high-resolution and stable signals are required for precise motor and machine control.
