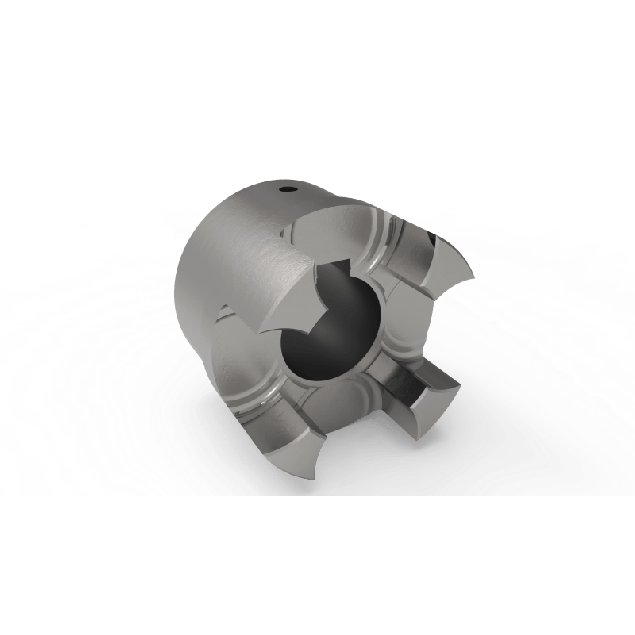

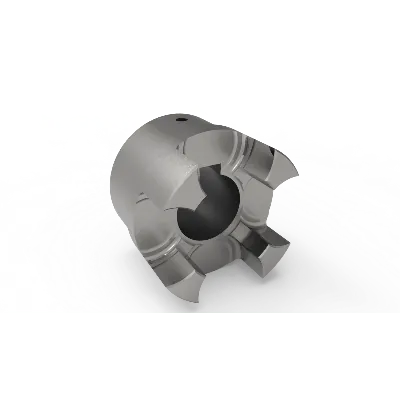

SPIDEX claw coupling hub A 42/55, cast iron
HV71005720The SPIDEX claw clutch hub A, size 42/55, is a robust and efficient solution for your coupling needs. Crafted from durable cast iron, this hub ensures reliability and longevity in various industrial applications. Its versatile design offers compatibility and seamless integration with both hub A and B, providing a comprehensive coupling system tailored to your requirements.
Specifications
Product description
Downloads
€63.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Hub type
A
Material
Cast iron
Length (mm)
126
Max. moment (Nm)
530
Manufacturer
R+L HYDRAULICS
Coupling size
42/55
Bore max.
Ø42mm H7
Bore min.
Ø19mm H7
HS-Code
84836020.000000
Description
Key features:
- High-quality material: Constructed from sturdy cast iron, guaranteeing exceptional durability and wear resistance.
- Modular design: This product number includes hub A, an essential component of the claw coupling system. Each component, including hubs and spiders, can be purchased separately for customized configurations.
- Easy installation: Characterized by lateral mounting, the SPIDEX claw clutch hub A offers straightforward setup and removal, saving valuable time during installation and maintenance.
- Press fit and clamping pressure: The hub's design ensures a secure and strong connection, promoting efficiency and reliability in power transmission.
- Maintenance-free: Enjoy hassle-free operation with the claw coupling's self-lubricating properties, eliminating the need for constant maintenance.
- Wide temperature range: Operate confidently in diverse environments, with an operating temperature range of -40°C to +100°C. Short temperature peaks of up to +120°C are permissible, offering flexibility in demanding conditions.
