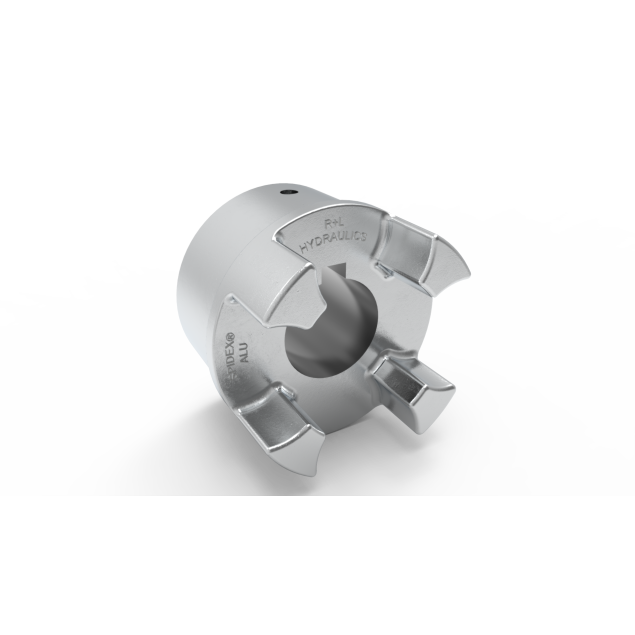

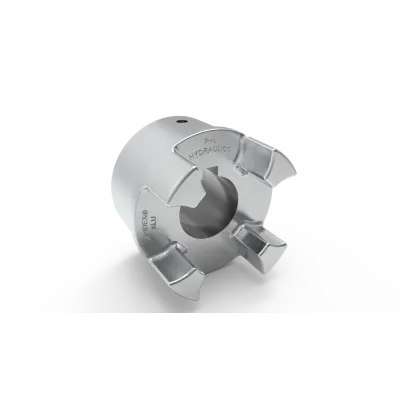

SPIDEX claw coupling hub B 38/45, aluminium

HV71005350

The SPIDEX claw coupling hub B 38/45 by R+L HYDRAULICS is a precision-engineered Hub B component, built for reliable torque transmission in mid-range drive systems that demand low mass and high rotational stability. Made from die-cast aluminium, it offers excellent mechanical strength while minimizing total system weight.

With a coupling size of 38/45, this hub is rated for up to 380 Nm torque, making it ideal for pumps, processing machinery, and compact industrial drives. It supports bore diameters from Ø14 mm H7 up to Ø38 mm H7, ensuring compatibility with a broad range of shaft sizes. The hub has a length of 114 mm, which maintains secure, damped engagement with elastomer elements, reducing vibration and extending system life.

As a Hub B, this component is specifically designed to be paired with a matching Hub A, available under the accessories tab below, forming a complete, reliable, vibration-damping coupling solution within the proven SPIDEX system.

€36.00

Excluded taxes and delivery costs

In stock

Expected shipment:

Estimated Shipping:

Accessories

Hub type A
Material Cast aluminum
Length (mm) 114
Max. moment (Nm) 380
Manufacturer R+L HYDRAULICS
Coupling size 38/45
Bore max. Ø38mm H7
Bore min. Ø14mm H7
Country of origin DEU

SPIDEX claw coupling hub A 38/45, aluminium BJ item number: HV71005070

€48.00

excl. VAT

Hub type A
Material Cast iron
Length (mm) 114
Max. moment (Nm) 380
Manufacturer R+L HYDRAULICS
Coupling size 38/45
Bore max. Ø38mm H7
Bore min. Ø14mm H7
Country of origin DEU

SPIDEX claw coupling hub A 38/45, cast iron BJ item number: HV71005630

€56.00

excl. VAT

Material Polyurethane
Element nominal torque (Nm) 325
Element max. torque (Nm) 650
Manufacturer R+L HYDRAULICS
Coupling size 38
Country of origin DNK

SPIDEX 38/45 red 98°, spider, Shore A, coupling element, polyurethane BJ item number: HV71006990

€14.21

excl. VAT

Description

Key features:

Superior build: Crafted from aluminum, the SPIDEX claw clutch hub B guarantees strength and longevity for consistent performance.
Component flexibility: This product number includes a hub B, an integral part of the complete claw coupling system, comprising two hubs and a spider. Each component is available individually to suit your unique requirements.
Seamless integration: The Hub B seamlessly integrates with both hub A and B variants, offering versatility and adaptability for diverse coupling setups.
Effortless installation: Characterized by lateral mounting, the SPIDEX claw clutch hub B ensures easy installation and removal, saving valuable time during assembly and maintenance.
High clamping pressure: The innovative press-fit design of the claw coupling system delivers a remarkable clamping pressure, providing a secure connection even under demanding loads.
Maintenance-Free: Enjoy peace of mind with the SPIDEX claw clutch hub B as it requires zero maintenance, ensuring uninterrupted operations and minimal downtime.
Wide temperature range: From -40 °C to +100 °C, the SPIDEX claw clutch hub B remains steadfast in extreme conditions. Short temperature peaks up to +120 °C are well within its operating capability.
