Description
Key features:
- Sealings NBR: Ensures a secure and tight seal, preventing any contaminants from entering the bearing and maintaining optimal performance.
- Set screw lock: Offers a reliable and sturdy locking mechanism, keeping the bearing securely in place even under heavy loads or vibrations.
- Maintenance-free: Requires minimal maintenance, except for regular greasing when needed, saving you time and effort.
- Wide operating temperature range: From -20°C to +120°C.
- No surface coating required: The stainless steel housing, along with the SUC stainless steel bearings, eliminates the need for additional surface coatings, ensuring long-lasting performance.
Materials:
- Stainless steel housings AISI 304: Constructed from stainless steel.
- SUC stainless steel bearings AISI 440C: Made from AISI 440C stainless steel.
- Stainless steel grease nipple: Equipped with a stainless steel grease nipple.
Specifications
Grease nipple
Straight

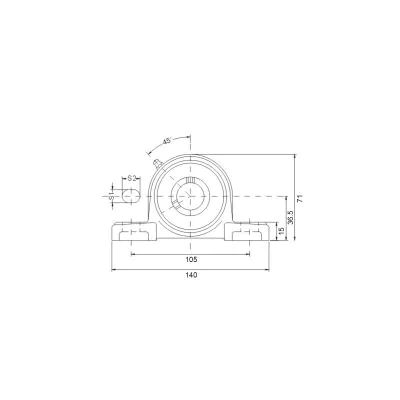

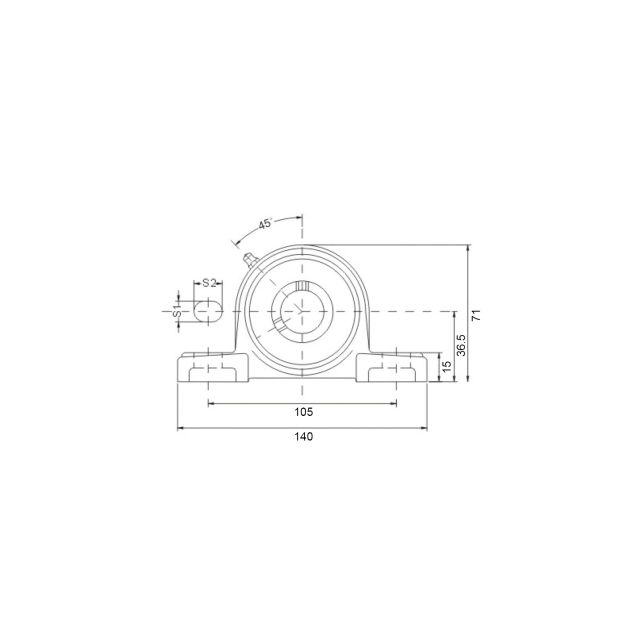

Hole distance (mm)
105
Shaft size (mm)
Ø25
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SP
Mounting
Set screw
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
0.85
Country of origin
CHN
