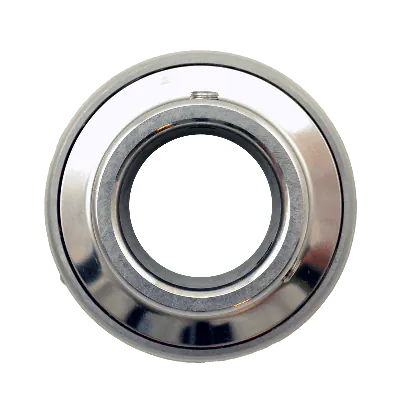

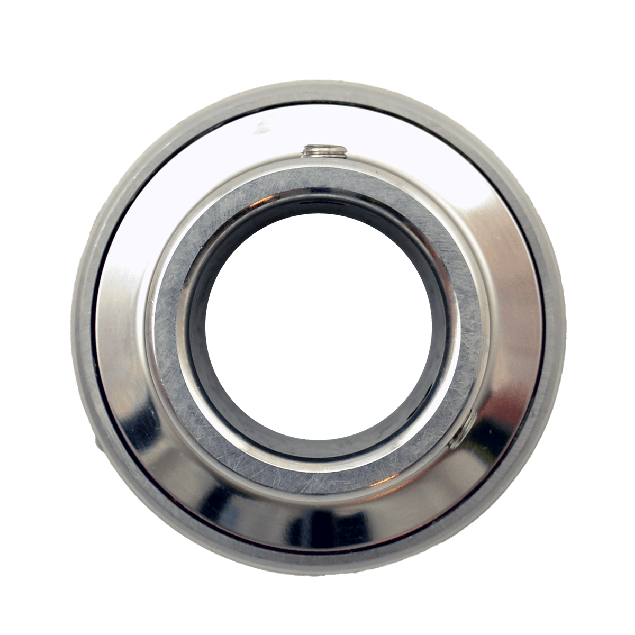

Insert bearing SUC205 Ø25, stainless steel
SUC205
Specifications
Product description
Downloads
€22.65
Made to order
Expected shipment: 28-03-2025
More Information
Bolt size
M6
Grease nipple
None
Shaft size (mm)
Ø25
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Mounting
Set screw
Description
Key features:
- Wide light duty inner race ensures a secure fit and easy installation with set screw locking.
- Spherical outer ring supports misalignment while maintaining stability and alignment.
- Simplified maintenance due to standard lubrication groove with oil hole on the set screw side.
- Anti-rotation pin on the opposite side of the grease groove provides additional protection against rotational forces.
- High-quality stainless steel bearing insert material offers durability in tough environments.
