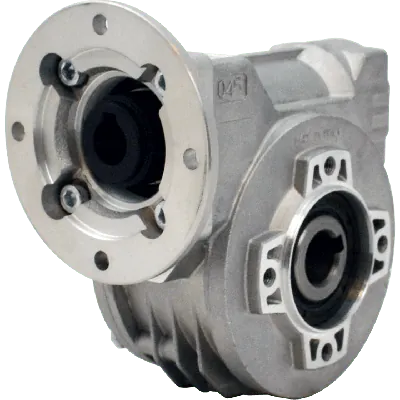

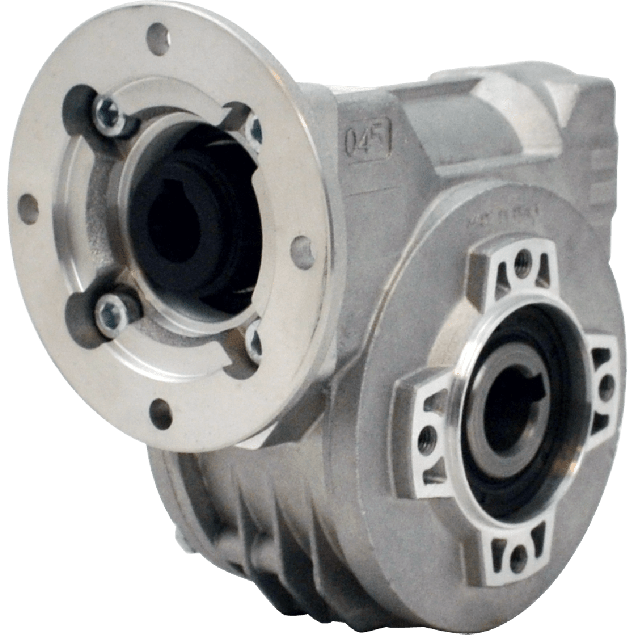

Hydro-Mec 045, worm gear Ø18 SS hollow shaft, 70:1, input 63B14, aluminium
HV80P045FB09I0-PB3-B-OFThis unit features a stainless steel Ø18 mm hollow output shaft, ensuring corrosion resistance in demanding environments. The gear ratio is 70:1, providing suitable torque multiplication for slower output speeds. It has a 63B14 input flange and a Ø11 mm input shaft. Built with a gearbox housing in aluminium, the unit delivers a balance of strength and weight. The gearbox size is 045 with a mechanical efficiency of 54%. BCD dimensions are input: 75 mm and output: 65 mm, allowing integration with standard components.
Specifications
Product description
Downloads
€241.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
70:1
BCD input
75
BCD output
65
Efficiency (%)
54
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
045
Output speed at 1400 RPM
20
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.12
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Manufacturer Description: Hydro-Mec is a trusted Italian manufacturer, known for its high-quality gearbox solutions tailored for demanding industrial applications. With a commitment to engineering precision, durability, and modularity, Hydro-Mec gearboxes are designed to deliver optimal performance across various sectors including automation, packaging, food processing, and material handling.Key Features, Benefits & Applications:
Stainless Steel Hollow Output Shaft Ø18 mm – corrosion-resistant for hygienic and demanding environments such as food, pharmaceutical, and chemical industries
High Reduction Ratio 70:1 – enables significant speed reduction and increased torque output, ideal for heavy-load or slow-speed machinery
Aluminium Gear Housing – lightweight yet robust material ensures efficient heat dissipation and resistance to corrosion, perfectly suited for mobile installations or humid environments
Worm Gear Configuration – ensures compact design and self-locking capability in certain configurations, making it ideal for lifting, conveyor systems and precise positioning applications
Input Interface 63B14 – standardized motor flange for seamless integration with IEC motors, optimizing flexibility and reducing installation time
Input Shaft Ø11 mm – supports easy coupling with standard motor or drive shafts
Output Efficiency of 54% – balanced performance for intermittent or continuous-duty cycles
Compact Size 045 – excellent for space-constrained applications without compromising performance, such as in automated machinery, packaging lines, and robotics
Durability and Long Service Life – engineered for lifecycle optimization through precision machining and component qualityHydro-Mec gearboxes are backed by a strong reputation in industrial power transmission, offering modularity, customizability, and European manufacturing excellence — a durable solution for engineers seeking reliability and performance in compact worm gear applications.
Stainless Steel Hollow Output Shaft Ø18 mm – corrosion-resistant for hygienic and demanding environments such as food, pharmaceutical, and chemical industries
High Reduction Ratio 70:1 – enables significant speed reduction and increased torque output, ideal for heavy-load or slow-speed machinery
Aluminium Gear Housing – lightweight yet robust material ensures efficient heat dissipation and resistance to corrosion, perfectly suited for mobile installations or humid environments
Worm Gear Configuration – ensures compact design and self-locking capability in certain configurations, making it ideal for lifting, conveyor systems and precise positioning applications
Input Interface 63B14 – standardized motor flange for seamless integration with IEC motors, optimizing flexibility and reducing installation time
Input Shaft Ø11 mm – supports easy coupling with standard motor or drive shafts
Output Efficiency of 54% – balanced performance for intermittent or continuous-duty cycles
Compact Size 045 – excellent for space-constrained applications without compromising performance, such as in automated machinery, packaging lines, and robotics
Durability and Long Service Life – engineered for lifecycle optimization through precision machining and component qualityHydro-Mec gearboxes are backed by a strong reputation in industrial power transmission, offering modularity, customizability, and European manufacturing excellence — a durable solution for engineers seeking reliability and performance in compact worm gear applications.
