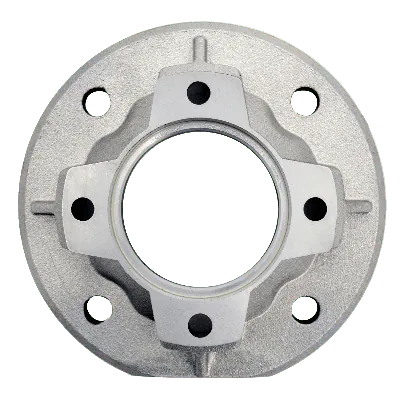

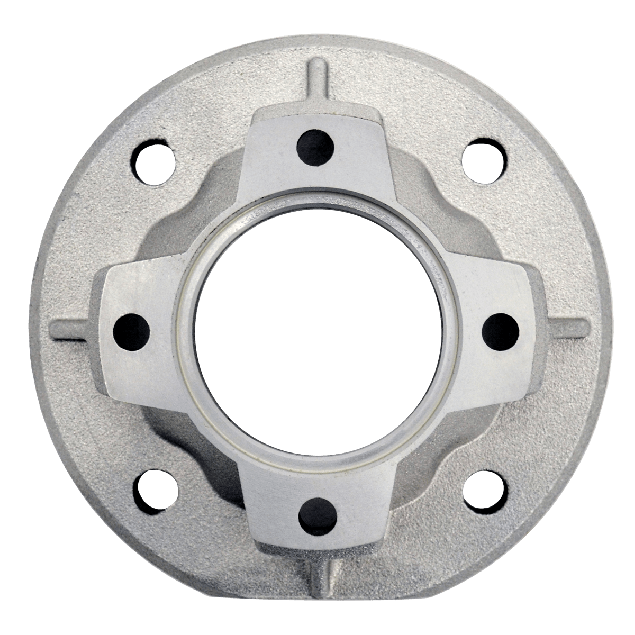

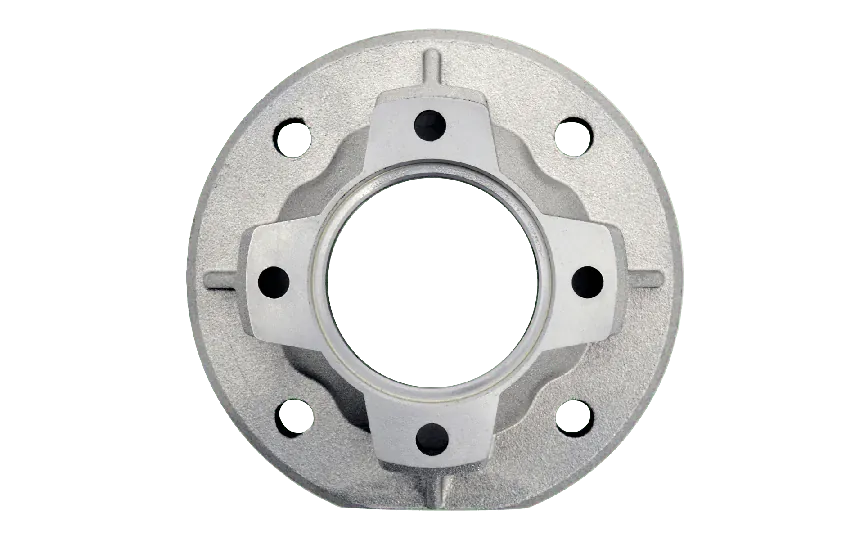

The Hydro-Mec output flange FC 045 / FL 030 is manufactured from aluminium and designed for worm gearboxes in sizes 030 and 045. The flange provides a stable and precise mechanical connection between the gearbox and connected components such as shafts, couplings or machine parts. The combined flange geometry makes it suitable for both FC and FL configurations. The aluminium construction offers low weight, good corrosion resistance and high dimensional stability for reliable operation.

Application in worm gearbox

The output flange is mounted on the output side of the worm gearbox and acts as a fixing point for external components. It ensures correct centring, stable power transmission and precise installation for both size 030 and 045 gearboxes.
