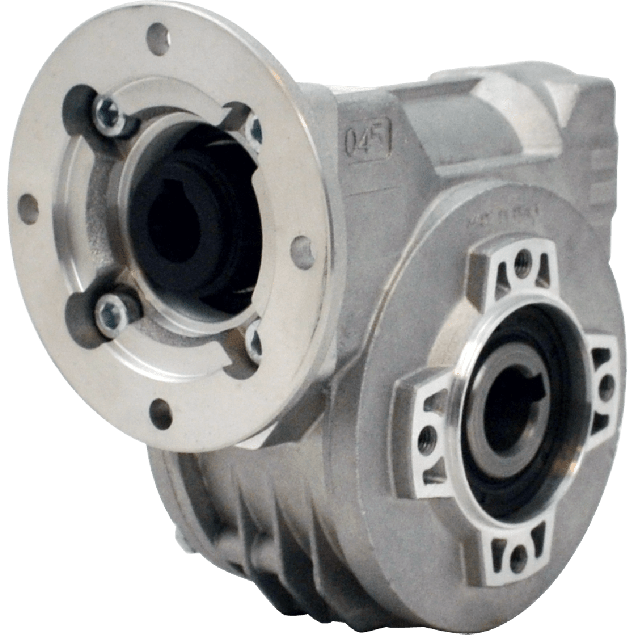

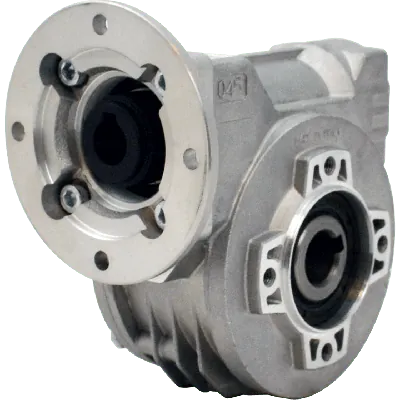

Hydro-Mec 045, worm gear Ø18 SS hollow shaft, 7:1, input 63B14, aluminium
HV80P045FB01I0-PB3-B-OFThe Hydro-Mec 045, worm gearbox Ø18 stainless steel hollow shaft, 7:1, input 63B14, aluminium, is designed for compact and efficient power transmission. It features a ratio of 7:1 and a gear size of 045, making it suitable for a wide range of industrial applications. The unit includes a stainless steel Ø18 mm hollow output shaft for corrosion resistance and durability, and an Ø11 mm input shaft. The gear housing is made of aluminium, combining strength with low weight. It is equipped with a 63B14 gear motor interface and delivers an efficiency of 80%. BCD input: 75 mm, BCD output: 65 mm.
Specifications
Product description
Downloads
€241.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
7:1
BCD input
75
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
045
Output speed at 1400 RPM
200
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned Italian manufacturer specializing in high-quality gearboxes and gear motors, offering precision-engineered power transmission systems tailored for demanding industrial applications. Known for their modularity, reliability, and innovation, Hydro-Mec gear units meet European quality standards and are widely used across diverse sectors including automation, process manufacturing, and heavy machinery.Key Features, Application Possibilities & Advantages:
Stainless Steel Hollow Output Shaft Ø18 mm (SS Hollow Shaft): Adds corrosion resistance and long-term durability, ideal for food processing, pharmaceutical, marine, and washdown environments.
Compact Aluminium Housing (Size 045): Lightweight yet robust design ensuring easy integration where space and weight are critical. Suited for conveyors, packaging machinery, and compact automation setups.
Input Flange 63B14: Compatible with IEC-standard motors, simplifying motor-gear assembly for quick installation and maintenance. Enables flexible matching with various motor types.
Gear Ratio 7:1: Provides optimized torque multiplication and speed reduction—perfect for applications requiring controlled output motion, such as automated palletizers, dosing systems, or material handling.
High Torque Transfer via Worm Gear Design: Delivers stable, self-locking transmission characteristics, ideal for vertical lifting systems and safety-sensitive applications where backdriving should be avoided.
Efficiency at 80%: Ensures effective energy transfer without excessive heat or loss, supporting operational energy savings in continuous-duty cycles.
Input Shaft Ø11 mm: Standardized connection for precise coupling with diverse mechanical assemblies or pre-mounted input solutions.
Corrosion-Resistant Construction: The combination of aluminium housing and stainless-steel shaft makes this unit suitable for aggressive or hygienically sensitive environments, reducing maintenance frequency.
Modular Mounting Options: Facilitates integration into existing systems whether wall-mounted, base-plate or flange-mounted, offering engineering flexibility during design and retrofit phases. This worm gearbox from Hydro-Mec delivers precise, efficient and durable performance especially suited for technical and industrial environments that require reliable gear reduction solutions.
Stainless Steel Hollow Output Shaft Ø18 mm (SS Hollow Shaft): Adds corrosion resistance and long-term durability, ideal for food processing, pharmaceutical, marine, and washdown environments.
Compact Aluminium Housing (Size 045): Lightweight yet robust design ensuring easy integration where space and weight are critical. Suited for conveyors, packaging machinery, and compact automation setups.
Input Flange 63B14: Compatible with IEC-standard motors, simplifying motor-gear assembly for quick installation and maintenance. Enables flexible matching with various motor types.
Gear Ratio 7:1: Provides optimized torque multiplication and speed reduction—perfect for applications requiring controlled output motion, such as automated palletizers, dosing systems, or material handling.
High Torque Transfer via Worm Gear Design: Delivers stable, self-locking transmission characteristics, ideal for vertical lifting systems and safety-sensitive applications where backdriving should be avoided.
Efficiency at 80%: Ensures effective energy transfer without excessive heat or loss, supporting operational energy savings in continuous-duty cycles.
Input Shaft Ø11 mm: Standardized connection for precise coupling with diverse mechanical assemblies or pre-mounted input solutions.
Corrosion-Resistant Construction: The combination of aluminium housing and stainless-steel shaft makes this unit suitable for aggressive or hygienically sensitive environments, reducing maintenance frequency.
Modular Mounting Options: Facilitates integration into existing systems whether wall-mounted, base-plate or flange-mounted, offering engineering flexibility during design and retrofit phases. This worm gearbox from Hydro-Mec delivers precise, efficient and durable performance especially suited for technical and industrial environments that require reliable gear reduction solutions.
