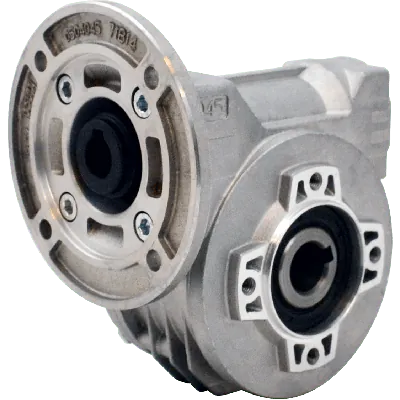

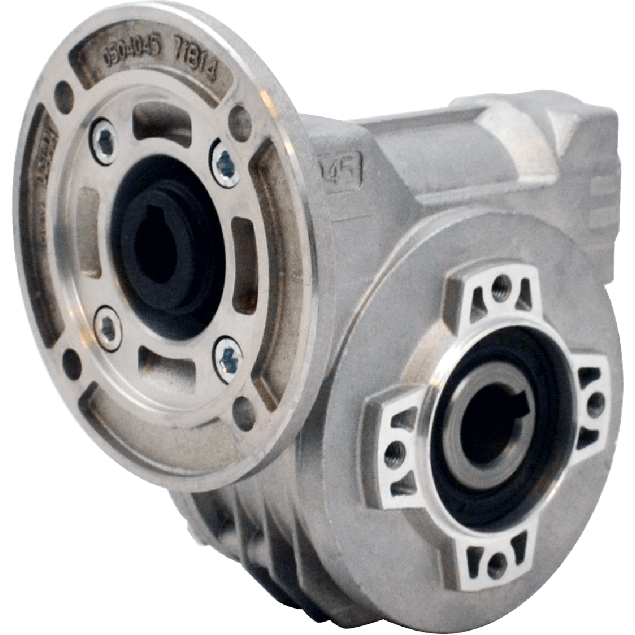

Hydro-Mec 045, worm gear Ø18 SS hollow shaft, 60:1, input 71B14, aluminium
HV80P045FB08I0-QB3-C-OFThe Hydro-Mec 045, worm gearbox Ø18 SS hollow shaft, 60:1, input 71B14, aluminium is built for reliable mechanical power transmission. It features a gear ratio of 60:1 and an efficiency of 56%, making it suitable for applications requiring moderate torque conversion. The gear housing is made of aluminium, ensuring reduced weight and corrosion resistance. It comes with a stainless steel (SS) Ø18 mm hollow output shaft and a Ø14 mm input shaft. The gearbox is designed for integration with a 71B14 motor interface. It has a gear size of 045. Input and output BCDs are 85 mm and 65 mm respectively.
Specifications
Product description
Downloads
€242.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
60:1
BCD input
85
BCD output
65
Efficiency (%)
56
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
045
Output speed at 1400 RPM
23
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.18
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Manufacturer Description:Hydro-Mec is a trusted European manufacturer known for its precision-engineered gearboxes, combining long-term durability with customizable design. With headquarters in Italy, Hydro-Mec specializes in modular mechanical transmissions suited for a wide range of industrial applications, offering easy configuration, high-quality materials, and consistent performance for demanding environments.Product Features and Benefits:
High Torque Reduction – 60:1 Ratio: Ideal for applications that require significant speed reduction and increased torque transmission such as conveyors, rotary actuators, and industrial mixers.
Stainless Steel Ø18 mm Hollow Output Shaft: Corrosion-resistant output shaft enhances durability and hygiene standards, making this gearbox suitable for food & beverage, pharmaceutical, and offshore industries.
Input Flange 71B14 Interface: Standardized motor interface ensures compatibility with various IEC motors, offering flexibility for OEM manufacturers and maintenance engineers.
Aluminium Housing: Lightweight yet robust design improves thermal dissipation and reduces overall system weight, suitable for mobile platforms, packaging machines, and automated systems.
Compact Gear Size – 045: Space-saving design makes this worm gearbox perfect for tight installation sites, particularly in robotics, compact drives and machine tools.
14 mm Gear Input Shaft: Precision-machined input shaft supports consistent power transmission with reduced vibration – advantageous for dynamic loads and start-stop operations.
Stainless Steel Construction of Hollow Shaft: Extended service life in harsh or clean environments with increased resistance to chemicals and moisture.
56% Efficiency: Optimized for applications where low input power is available, or thermal management is important – applicable in energy-sensitive installations or continuous operation equipment.
Trusted Hydro-Mec Quality: Engineered with ISO-certified manufacturing processes to ensure reliability and performance throughout operational lifespan.Applications:This gearbox is suitable for use in conveyor systems, washdown environments, food processing lines, dosing and mixing machines, compact automation systems, and corrosive industrial environments requiring stainless steel components.
High Torque Reduction – 60:1 Ratio: Ideal for applications that require significant speed reduction and increased torque transmission such as conveyors, rotary actuators, and industrial mixers.
Stainless Steel Ø18 mm Hollow Output Shaft: Corrosion-resistant output shaft enhances durability and hygiene standards, making this gearbox suitable for food & beverage, pharmaceutical, and offshore industries.
Input Flange 71B14 Interface: Standardized motor interface ensures compatibility with various IEC motors, offering flexibility for OEM manufacturers and maintenance engineers.
Aluminium Housing: Lightweight yet robust design improves thermal dissipation and reduces overall system weight, suitable for mobile platforms, packaging machines, and automated systems.
Compact Gear Size – 045: Space-saving design makes this worm gearbox perfect for tight installation sites, particularly in robotics, compact drives and machine tools.
14 mm Gear Input Shaft: Precision-machined input shaft supports consistent power transmission with reduced vibration – advantageous for dynamic loads and start-stop operations.
Stainless Steel Construction of Hollow Shaft: Extended service life in harsh or clean environments with increased resistance to chemicals and moisture.
56% Efficiency: Optimized for applications where low input power is available, or thermal management is important – applicable in energy-sensitive installations or continuous operation equipment.
Trusted Hydro-Mec Quality: Engineered with ISO-certified manufacturing processes to ensure reliability and performance throughout operational lifespan.Applications:This gearbox is suitable for use in conveyor systems, washdown environments, food processing lines, dosing and mixing machines, compact automation systems, and corrosive industrial environments requiring stainless steel components.
