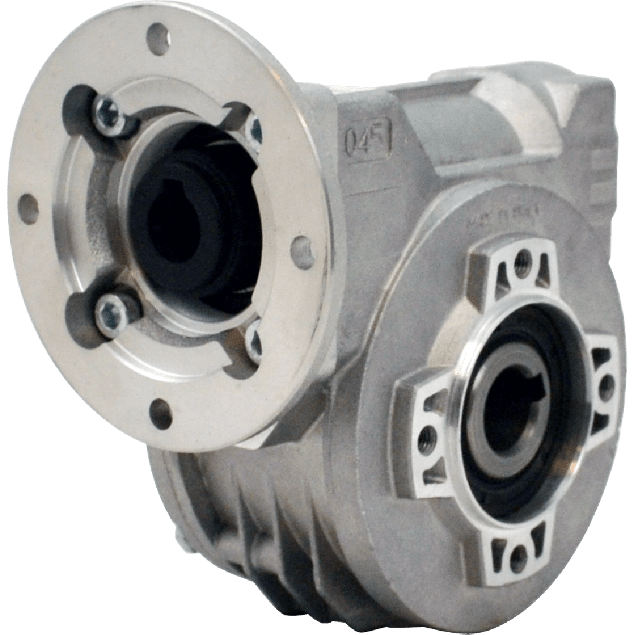

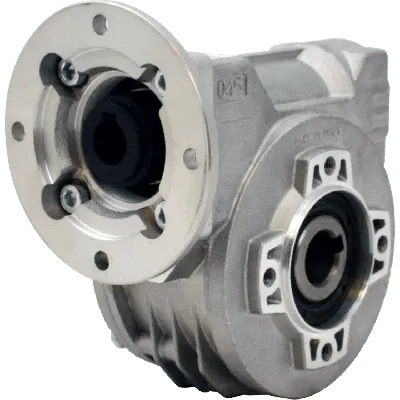

Hydro-Mec 045, worm gear Ø18 SS hollow shaft, 10:1, input 56B14, aluminium
HV80P045FB02I0-OB3-A-OFThe Hydro-Mec 045, worm gearbox Ø18 stainless steel hollow shaft, 10:1, input 56B14, aluminium, is a versatile gear solution designed for technical applications. It features a 10:1 gear ratio and a 79% efficiency. The gear input shaft measures 9 mm, while the gear output shaft is Ø18 mm and constructed as a stainless steel hollow shaft, ensuring corrosion resistance. Built with a gear housing in aluminium, it keeps weight low while maintaining durability. The gear motor interface is 56B14, compatible with standard motor flanges. The gear size is 045, and both BCD input and output are 65 mm, suitable for compact mechanical designs.
Specifications
Product description
Downloads
€244.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
10:1
BCD input
65
BCD output
65
Efficiency (%)
79
Gear output shaft (mm)
18
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
045
Output speed at 1400 RPM
140
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.57
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Product: Hydro-Mec 045 Worm Gearbox, Ø18 mm Stainless Steel Hollow Shaft, 10:1 Ratio, Input 56B14, Aluminium HousingKey Functions, Features, and Applications
→ Constructed with a lightweight yet robust aluminium housing, this unit resists corrosion while reducing overall system weight — ideal for mobile or weight-sensitive equipment.
→ Equipped with a Ø18 mm stainless steel hollow output shaft, offering superior corrosion resistance and making it suitable for hygienic or wash-down environments such as food processing or chemical applications.
→ High-precision 10:1 gear ratio ensures consistent speed reduction and torque multiplication, supporting applications needing fine motion control, e.g. conveyors, actuators, or robotic axis drives.
→ B14 flange input interface (frame size 56) allows seamless integration with standard IEC motors, simplifying assembly in modular machine setups.
→ Compact gear size 045 delivers powerful performance in restricted spaces, making it adaptable for automation systems, packaging machinery or material handling.
→ Input shaft diameter of 9 mm allows compatibility with compact motor shafts, maintaining efficiency even in small-scale or low-inertia systems.
→ Engineered with an operational efficiency of 79%, this gearbox minimizes energy losses and heat generation, supporting long duty cycles in continuous industrial operations.
→ Modular configuration enables fast gear replacement or maintenance, reducing downtime in production-critical applications.
→ Trusted Hydro-Mec engineering and design guarantee long-lasting performance in demanding technical installations.
→ Constructed with a lightweight yet robust aluminium housing, this unit resists corrosion while reducing overall system weight — ideal for mobile or weight-sensitive equipment.
→ Equipped with a Ø18 mm stainless steel hollow output shaft, offering superior corrosion resistance and making it suitable for hygienic or wash-down environments such as food processing or chemical applications.
→ High-precision 10:1 gear ratio ensures consistent speed reduction and torque multiplication, supporting applications needing fine motion control, e.g. conveyors, actuators, or robotic axis drives.
→ B14 flange input interface (frame size 56) allows seamless integration with standard IEC motors, simplifying assembly in modular machine setups.
→ Compact gear size 045 delivers powerful performance in restricted spaces, making it adaptable for automation systems, packaging machinery or material handling.
→ Input shaft diameter of 9 mm allows compatibility with compact motor shafts, maintaining efficiency even in small-scale or low-inertia systems.
→ Engineered with an operational efficiency of 79%, this gearbox minimizes energy losses and heat generation, supporting long duty cycles in continuous industrial operations.
→ Modular configuration enables fast gear replacement or maintenance, reducing downtime in production-critical applications.
→ Trusted Hydro-Mec engineering and design guarantee long-lasting performance in demanding technical installations.
