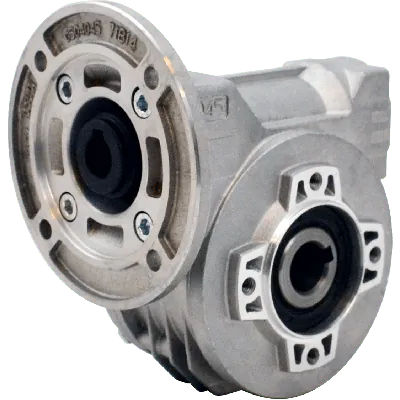

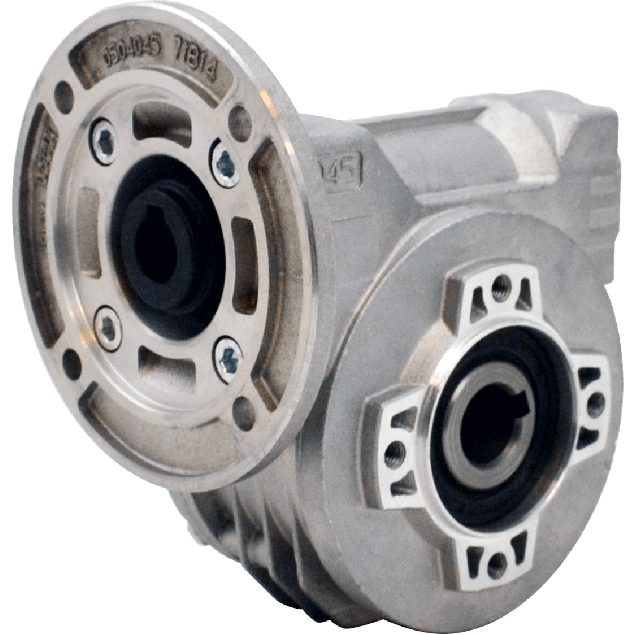

Hydro-Mec 045, worm gear Ø18 hollow shaft, 70:1, input 71B14, aluminium
HV80P045FB09C0-QB3-CThe Hydro-Mec 045 Worm Gearbox Ø18 Hollow Shaft, 70:1, Input 71B14, Aluminium is designed for compact drive applications where space and material compatibility are key. It features a gear ratio of 70:1 and a gear size 045, delivering a mechanical efficiency of 54%. The unit includes a Ø14 mm input shaft and a Ø18 mm output hollow shaft, with a gear motor interface of 71B14. Built with a lightweight aluminium housing, it provides resistance to corrosion and is compatible with various industrial applications. With a BCD input of 85 mm and a BCD output of 65 mm, the gearbox ensures standardised mounting.
Specifications
Product description
Downloads
€175.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
70:1
BCD input
85
BCD output
65
Efficiency (%)
54
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
045
Output speed at 1400 RPM
20
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.12
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
The Hydro-Mec 045 worm gearbox is a compact and durable power transmission unit, engineered for industrial environments where precision, reliability, and space efficiency are crucial. Designed and manufactured by Hydro-Mec — a renowned Italian brand known for its innovation in modular gear technology — this unit emphasizes flexibility, corrosion resistance, and seamless motor integration for versatile applications in engineering-driven industries.
• High gear ratio of 70:1 enables significant speed reduction while maximizing torque output — ideal for conveyors, lifting systems, and automation machinery where controlled motion is essential.
• Output shaft Ø18 mm in SS (stainless steel) provides excellent resistance to corrosion and wear, making it suitable for harsh environments including food processing, marine, and chemical applications.
• Aluminium housing ensures a lightweight yet robust construction for easy integration and thermal efficiency — perfect for mobile machinery and configurations with weight restrictions.
• Hollow output shaft design allows for simple and space-saving coupling with driven shafts, reducing assembly time and enhancing system alignment.
• 71B14 motor flange interface supports direct motor mounting, streamlining installation and enabling modular compatibility with IEC-standard motors in automation equipment and pump drives.
• Gearbox size 045 delivers a compact footprint, enabling use where space constraints are critical, such as packaging systems or compact mechanized units.
• Input shaft Ø14 mm allows transmission flexibility and standard coupling options for integration with various motor types.
• 54% efficiency is optimized for the specified gear ratio, ensuring consistent performance for medium-duty applications that require gear-driven control without complex servo systems.
• Hydro-Mec’s standardized modular approach supports custom configurations, rapid replacement, and full interchangeability, enhancing system uptime and scalability across equipment platforms.The Hydro-Mec 045 worm gear unit is a cost-effective and technically reliable choice for engineers seeking a high-ratio reduction gearbox with stainless steel shaft options and modular design built for real-world industrial conditions.
• High gear ratio of 70:1 enables significant speed reduction while maximizing torque output — ideal for conveyors, lifting systems, and automation machinery where controlled motion is essential.
• Output shaft Ø18 mm in SS (stainless steel) provides excellent resistance to corrosion and wear, making it suitable for harsh environments including food processing, marine, and chemical applications.
• Aluminium housing ensures a lightweight yet robust construction for easy integration and thermal efficiency — perfect for mobile machinery and configurations with weight restrictions.
• Hollow output shaft design allows for simple and space-saving coupling with driven shafts, reducing assembly time and enhancing system alignment.
• 71B14 motor flange interface supports direct motor mounting, streamlining installation and enabling modular compatibility with IEC-standard motors in automation equipment and pump drives.
• Gearbox size 045 delivers a compact footprint, enabling use where space constraints are critical, such as packaging systems or compact mechanized units.
• Input shaft Ø14 mm allows transmission flexibility and standard coupling options for integration with various motor types.
• 54% efficiency is optimized for the specified gear ratio, ensuring consistent performance for medium-duty applications that require gear-driven control without complex servo systems.
• Hydro-Mec’s standardized modular approach supports custom configurations, rapid replacement, and full interchangeability, enhancing system uptime and scalability across equipment platforms.The Hydro-Mec 045 worm gear unit is a cost-effective and technically reliable choice for engineers seeking a high-ratio reduction gearbox with stainless steel shaft options and modular design built for real-world industrial conditions.
