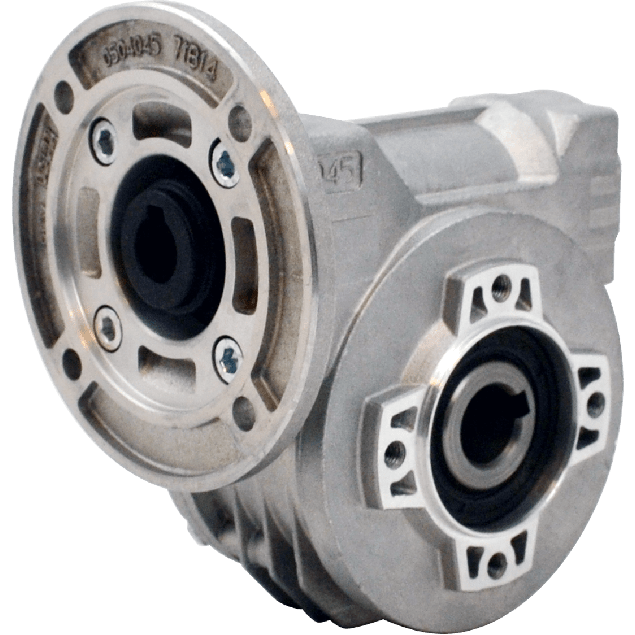

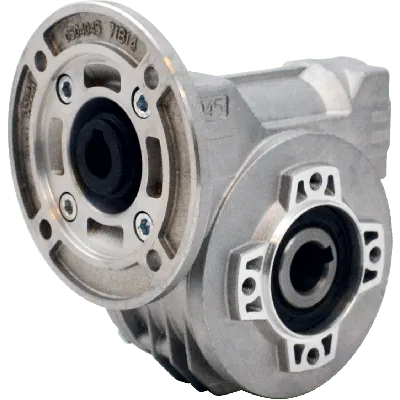

Hydro-Mec 045, worm gear Ø18 hollow shaft, 7:1, input 71B14, aluminium
HV80P045FB01C0-QB3-CThe Hydro-Mec 045 worm gear unit is designed for compact and efficient power transmission. It features a gear ratio of 7:1 and an efficiency of 80%. The gear housing is made of aluminium, offering a lightweight yet durable construction. This model has a gear size of 045 and is equipped with a Ø18 mm hollow output shaft and a Ø14 mm input shaft. It supports a 71B14 motor interface, making integration straightforward. The effective input BCD is 85 mm while the output BCD is 65 mm, ensuring compatibility with a wide range of configurations. The Hydro-Mec 045 is well-suited for applications requiring compact gear solutions with standard mounting dimensions.
Specifications
Product description
Downloads
€175.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
7:1
BCD input
85
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
045
Output speed at 1400 RPM
200
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.8
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned European manufacturer specializing in high-precision gearboxes designed for demanding industrial applications. With a reputation for quality engineering, modular design, and consistent performance, Hydro-Mec products are configured for quick integration and long-term reliability, making them ideal for automation, food processing, packaging, and other industrial applications.Product Name: Hydro-Mec 045 Worm Gearbox Ø18 Hollow Shaft, 7:1 Ratio, Input 71B14, AluminiumKey Features and Application Possibilities:
• Compact and durable size 045 gearbox ensures seamless integration in limited-space environments such as conveyor systems, packaging machinery, or compact automation units.
• 7:1 gear ratio delivers excellent torque reduction suited for applications requiring controlled mechanical advantage, such as actuators and material handling systems.
• Aluminium gearbox housing offers outstanding corrosion resistance and reduced weight, making it ideal for use in environments with high humidity or where hygiene is critical, such as the food and beverage industry.
• 80% mechanical efficiency offers energy-saving performance and reduced thermal buildup, maximizing operational reliability in continuous-duty cycles.
• Ø18 mm stainless steel (SS) hollow output shaft provides strength, wear resistance, and corrosion protection—essential for washdown or chemically aggressive environments.
• Ø14 mm input shaft provides compatibility with compact motors, delivering installation flexibility in tight industrial control panels or modular machinery.
• Designed with IEC standard 71B14 motor interface, simplifying motor coupling and enabling compatibility with a wide range of electric motors used in manufacturing and process control industries.
• High-performance worm gearset enhances torque transmission efficiency and ensures smoother operation under variable load conditions in lifting equipment, bulk handling, and textile automation.
• Modular assembly allows easy maintenance, minimizing downtime in industrial applications such as robotics, bottling lines, and automated sorting systems. This Hydro-Mec 045 worm gearbox offers a compact, efficient, and corrosion-resistant solution engineered specifically for technical specialists and engineers looking for robust performance in demanding operational environments.
• Compact and durable size 045 gearbox ensures seamless integration in limited-space environments such as conveyor systems, packaging machinery, or compact automation units.
• 7:1 gear ratio delivers excellent torque reduction suited for applications requiring controlled mechanical advantage, such as actuators and material handling systems.
• Aluminium gearbox housing offers outstanding corrosion resistance and reduced weight, making it ideal for use in environments with high humidity or where hygiene is critical, such as the food and beverage industry.
• 80% mechanical efficiency offers energy-saving performance and reduced thermal buildup, maximizing operational reliability in continuous-duty cycles.
• Ø18 mm stainless steel (SS) hollow output shaft provides strength, wear resistance, and corrosion protection—essential for washdown or chemically aggressive environments.
• Ø14 mm input shaft provides compatibility with compact motors, delivering installation flexibility in tight industrial control panels or modular machinery.
• Designed with IEC standard 71B14 motor interface, simplifying motor coupling and enabling compatibility with a wide range of electric motors used in manufacturing and process control industries.
• High-performance worm gearset enhances torque transmission efficiency and ensures smoother operation under variable load conditions in lifting equipment, bulk handling, and textile automation.
• Modular assembly allows easy maintenance, minimizing downtime in industrial applications such as robotics, bottling lines, and automated sorting systems. This Hydro-Mec 045 worm gearbox offers a compact, efficient, and corrosion-resistant solution engineered specifically for technical specialists and engineers looking for robust performance in demanding operational environments.
