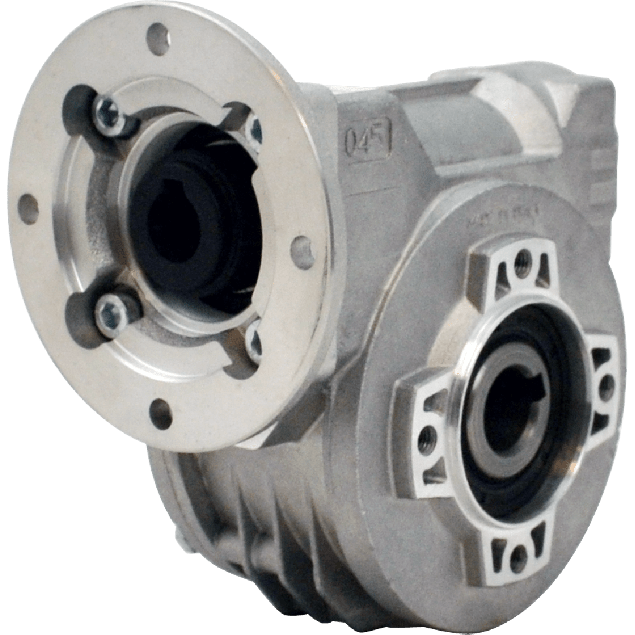

Hydro-Mec 045, worm gear Ø18 hollow shaft, 102:1, input 56B14, aluminium
HV80P045FB10C0-OB3-AThis unit features a gear size of 045 and a gear ratio of 102:1, making it suitable for high-torque, low-speed applications. The gear input shaft diameter is 9 mm and the gear output shaft is a Ø18 mm hollow shaft. It comes with a 56B14 gear motor interface for standardized motor mounting. Constructed with a housing made from aluminium, the gearbox maintains low weight without compromising structural integrity. The system offers 65 BCD input and output compatibility and achieves an efficiency of 49%.
Specifications
Product description
Downloads
€176.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
102:1
BCD input
65
BCD output
65
Efficiency (%)
49
Gear output shaft (mm)
18
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
045
Output speed at 1400 RPM
13.7
Max output torque (Nm)
29
Max kW input at 1400 rpm
0.09
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
The Hydro-Mec 045 worm gearbox offers exceptional performance and adaptability for industrial applications demanding compact design, efficiency, and corrosion resistance. Manufactured by Hydro-Mec, a trusted Italian producer renowned for high-quality modular gear systems, this unit combines high reliability with space-saving features to meet the most demanding automation and mechanical engineering requirements.
• High Torque Reduction – With a gear ratio of 102:1, this unit enables significant speed reduction and torque multiplication, ideal for low-speed, high-torque operations such as conveyors, mixers, and lifting equipment.
• Stainless Steel Hollow Output Shaft (Ø18 mm) – The SS hollow shaft ensures superior corrosion resistance and durability in chemically aggressive or washdown environments, such as food processing, marine, and pharmaceutical industries.
• Compact Gearbox Size 045 – Offers efficient integration into machinery with limited space without sacrificing torque performance, increasingly valuable in smart factory layouts and mobile machinery.
• 56B14 Motor Interface – Standardized interface ensures compatibility with a wide range of B14 flange electric motors, enabling flexible power transmission design and easy replacement.
• Aluminium Housing – Lightweight yet robust gear construction supports easy handling and installation while offering strong thermal dissipation and moderate resistance to corrosion.
• Input Shaft Ø9 mm – Precision input diameter supports accurate power alignment and efficient energy transfer from motor to application.
• Efficiency Rating of 49% – Well-suited for intermittent duty cycles where energy consumption and compactness outweigh continuous performance requirements, such as positioning systems and gate mechanisms. Hydro-Mec’s reputation for modular, pre-assembled gear units ensures reduced lead times and simplified maintenance in demanding industrial environments. The 045 worm gearbox is a reliable component for customized drive solutions across sectors like logistics, material handling, and automation.
• High Torque Reduction – With a gear ratio of 102:1, this unit enables significant speed reduction and torque multiplication, ideal for low-speed, high-torque operations such as conveyors, mixers, and lifting equipment.
• Stainless Steel Hollow Output Shaft (Ø18 mm) – The SS hollow shaft ensures superior corrosion resistance and durability in chemically aggressive or washdown environments, such as food processing, marine, and pharmaceutical industries.
• Compact Gearbox Size 045 – Offers efficient integration into machinery with limited space without sacrificing torque performance, increasingly valuable in smart factory layouts and mobile machinery.
• 56B14 Motor Interface – Standardized interface ensures compatibility with a wide range of B14 flange electric motors, enabling flexible power transmission design and easy replacement.
• Aluminium Housing – Lightweight yet robust gear construction supports easy handling and installation while offering strong thermal dissipation and moderate resistance to corrosion.
• Input Shaft Ø9 mm – Precision input diameter supports accurate power alignment and efficient energy transfer from motor to application.
• Efficiency Rating of 49% – Well-suited for intermittent duty cycles where energy consumption and compactness outweigh continuous performance requirements, such as positioning systems and gate mechanisms. Hydro-Mec’s reputation for modular, pre-assembled gear units ensures reduced lead times and simplified maintenance in demanding industrial environments. The 045 worm gearbox is a reliable component for customized drive solutions across sectors like logistics, material handling, and automation.
